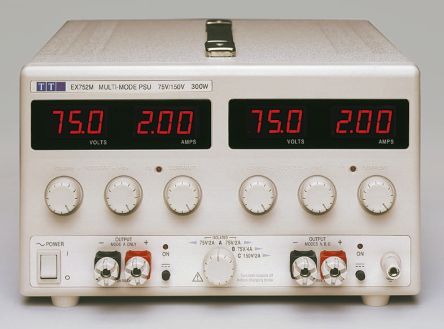

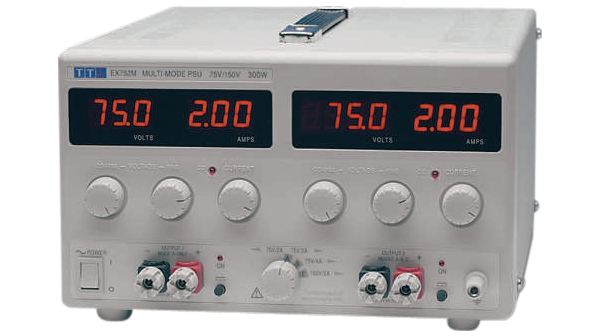

EX752M
| Manufacturer | |
| Description | 300W 2 Output Digital Bench Power Supply, 150 V, 75 V, 2 A, 4 A RSCAL(3882726),EX752M power supply unit Pwr sup.unit: laboratory; Channels:2; 0÷75VDC; 0÷75VDC; 0÷2A; 0÷2A Laboratory Power Supply 2 Ch. 0...75 VDC 2 A / 0...75 VDC 2 A, EX752M, Aim-TTi Aim-TTi 台式电源, 2 输出, 75 V, 150 V, 2 A, 4 A, 300W |
| Category |
对参数有疑问？问 AI 助手
Compliance
| RoHS | Not Applicable | ||
Electrical
| Noise | ≤2mVrms | Power - Input | 230VAC 50/60Hz |
| Power - Rated | 300W | Voltage Rating | 150 V, 75 V |
| Current - Output | 2 A, 4 A | Voltage - Supply | 115 V, 230 V |
| Number of Outputs | 2 | Output Resolution | 0.01A |
| Power Supply Type | laboratory | Resolution (Bits) | 100 |
| Current - Output 2 | 0...2A | Number of Channels | 2 |
| Current Rating (Max) | 2 A, 4 A | Voltage - Input (Min) | 0...75V DC |
| Voltage - Output (Max) | 75 | ||
Mechanical
| Size | 320 x 260 x 160 mm | Weight | 0.43 kg |
| Connector Type | 弹簧加载连接器 | Output Connector | Spring Loaded Connector |
| Size / Dimension | 260 x 160 x 320mm | Number of Positions | 4 |
Product Info
| Type | Digital | Calibration | RSCAL |
| Description | Laboratory power supply, dual voltage | Display Style | 4x LED 4 digits |
| Number of Units | 1 | Number of Monitor Fields | 4 |
Environmental
| Operating Temperature | +5°C | Maximum Temperature Limit | +40°C |
