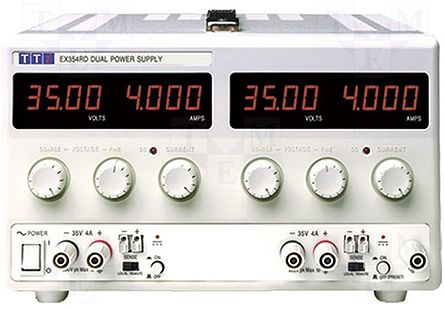

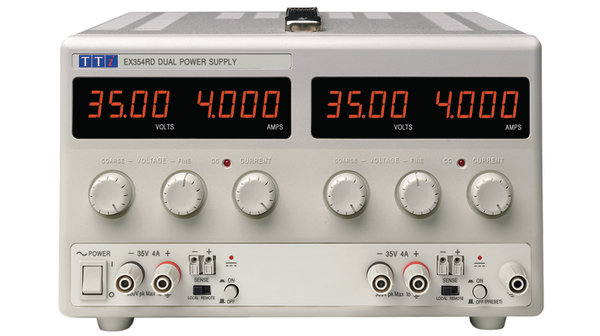

EX354RD
| Manufacturer | |
| Description | 280W 2 Output Digital Bench Power Supply, 0 to 35V, 0 to 4A Pwr sup.unit: laboratory; Channels:2; 0÷35VDC; 0÷35VDC; 0÷4A; 0÷4A Laboratory Power Supply 2 Ch. 0...35 VDC 4 A / 0...35 VDC 4 A, EX354RD, Aim-TTi Aim-TTi 台式电源, 2 输出, 0 → 35V, 0 → 4A, 280W |
| Category |
对参数有疑问？问 AI 助手
Compliance
| Safety Category | EN 61010-1 | ||
Electrical
| Noise | ≤2mVrms | Ripple | 2 |
| Power - Input | 230VAC 50/60Hz | Power - Rated | 280W |
| Voltage Rating | 0 → 35V | Current - Output | 0 → 4A |
| Voltage - Supply | 110 → 240V ac | Number of Outputs | 2 |
| Output Resolution | 0.001A | Power Supply Type | laboratory |
| Resolution (Bits) | 10 | Current - Output 2 | 0...4A |
| Number of Channels | 2 | Current Rating (Max) | 0 → 4A |
| Voltage - Input (Min) | 0...35V DC | Voltage - Output (Max) | 35 |
Mechanical
| Size | 320 x 260 x 160 mm | Weight | 5.4 kg |
| Connector Type | 接线柱端子 | Output Connector | Binding Post Terminal |
| Size / Dimension | 260 x 160 x 320mm | Connector - Cable | F (CEE 7/4) |
| Number of Positions | 4 | ||
Product Info
| Type | Digital | Display Style | 4x LED 4 digits |
| Number of Units | 1 | Number of Monitor Fields | 4 |
Environmental
| Operating Temperature | +5°C | Maximum Temperature Limit | +40°C |
