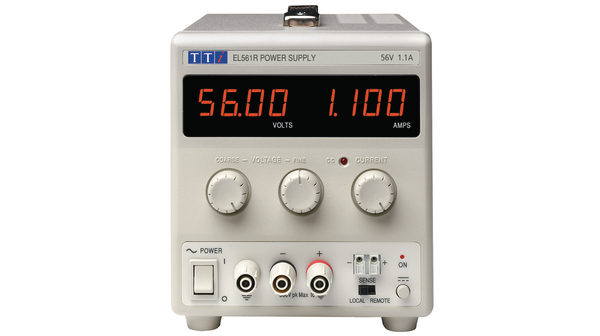

EL561R
| Manufacturer | |
| Description | 60W 1 Output Digital Bench Power Supply, 0 to 56V, 0 to 1.1A Pwr sup.unit: laboratory; Channels:1; 0÷56VDC; 0÷1.1A Laboratory Power Supply 1 Ch. 0...56 VDC 1.1 A, Programmable, EL561R, Aim-TTi Aim-TTi 台式电源, 1 输出, 0 → 56V, 0 → 1.1A, 60W |
| Category |
对参数有疑问？问 AI 助手
Compliance
| Safety Category | EN 61010-1 | ||
Electrical
| Ripple | 1 | Power - Input | 115/230VAC ±10%, 50/60Hz |
| Power - Rated | 60W | Voltage Rating | 0 → 56V |
| Current - Output | 0 → 1.1A | Voltage - Supply | 115 V ac, 230 V ac |
| Number of Outputs | 1 | Output Resolution | 1mA |
| Power Supply Type | laboratory | Resolution (Bits) | 10 |
| Number of Channels | 1 | Current Rating (Max) | 0 → 1.1A |
| Voltage - Output (Max) | 56 | ||
Mechanical
| Size | 295 x 140 x 160 mm | Weight | 4.4kg |
| Connector Type | 接线柱端子 | Output Connector | Binding Post Terminal |
| Size / Dimension | 140 x 160 x 195mm | Connector - Cable | CH |
| Number of Positions | 2 | ||
Product Info
| Type | Digital | Programmable | Programmable |
| Display Style | 2x LED 4 digits | Number of Units | 1 |
| Number of Monitor Fields | 2 | ||
Environmental
| Operating Temperature | +5°C | Maximum Temperature Limit | +40°C |
