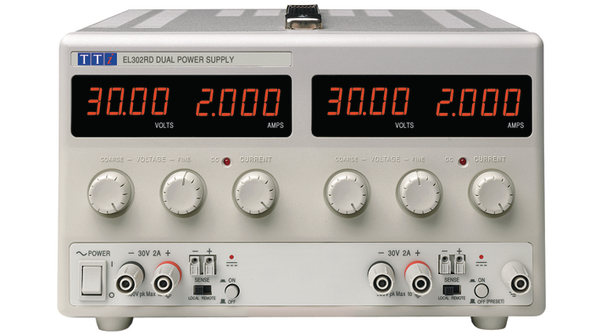

EL302RD
| Manufacturer | |
| Description | 120W 2 Output Digital Bench Power Supply, 0 to 30V, 0 to 2A Pwr sup.unit: laboratory; Channels:2; 0÷30VDC; 0÷30VDC; 0÷2A; 0÷2A Laboratory Power Supply 2 Ch. 0...30 VDC 2 A / 0...30 VDC 2 A, EL302RD, Aim-TTi Aim-TTi 台式电源, 2 输出, 0 → 30V, 0 → 2A, 120W |
| Category |
对参数有疑问？问 AI 助手
Compliance
| Safety Category | EN 61010-1 | ||
Electrical
| Ripple | 1 | Power - Input | 230VAC 50/60Hz |
| Power - Rated | 120W | Voltage Rating | 0 → 30V |
| Current - Output | 0 → 2A | Voltage - Supply | 115 V ac, 230 V ac |
| Number of Outputs | 2 | Output Resolution | 1mA |
| Power Supply Type | laboratory | Resolution (Bits) | 10 |
| Current - Output 2 | 0...2A | Number of Channels | 2 |
| Current Rating (Max) | 0 → 2A | Voltage - Input (Min) | 0...30V DC |
| Voltage - Output (Max) | 30 | ||
Mechanical
| Size | 295 x 260 x 160 mm | Weight | 8.38 kg |
| Connector Type | 接线柱端子 | Output Connector | Binding Post Terminal |
| Size / Dimension | 260 x 160 x 195mm | Connector - Cable | F (CEE 7/4) |
| Number of Positions | 4 | ||
Product Info
| Type | Digital | Display Style | 4x LED 4 digits |
| Number of Units | 1 | Number of Monitor Fields | 4 |
Environmental
| Operating Temperature | +5°C | Maximum Temperature Limit | +40°C |
