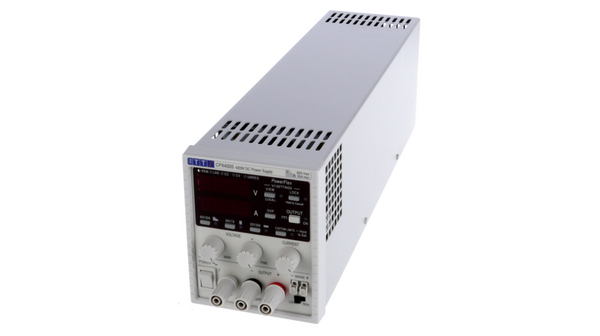

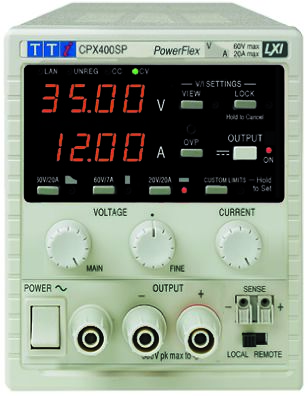

CPX400S
| Manufacturer | |
| Description | PSU 60V 20A Max Powerflex Pwr sup.unit: laboratory; Channels:1; 0÷60VDC; 0÷20A Laboratory Power Supply 1 Ch. 0...60 VDC 20 A, CPX400S, Aim-TTi Aim-TTi 台式电源, 1 输出, 0 → 60V, 0 → 20A, 420W |
| Category |
对参数有疑问？问 AI 助手
Electrical
| Noise | ≤3mVrms | Ripple | 3 |
| Power - Input | 230VAC 50/60Hz | Power - Rated | 420W |
| Current - Test | 10 | Voltage Rating | 0 → 60V |
| Current - Output | 0 → 20A | Voltage - Supply | 110 → 240V |
| Number of Outputs | 1 | Output Resolution | 10mA |
| Power Supply Type | laboratory | Resolution (Bits) | 10 |
| Number of Channels | 1 | Current Rating (Max) | 0 → 20A |
| Voltage - Output (Max) | 60 | ||
Mechanical
| Size | 107 x 130 x 398 mm | Weight | 5.15 kg |
| Connector Type | 接线柱端子 | Output Connector | Binding Post Terminal |
| Size / Dimension | 107 x 130 x 350mm | Number of Positions | 2 |
Product Info
| Type | Digital | Display Style | 2x LED 4 digits |
| Characteristics | see | Number of Units | 1 |
| Number of Monitor Fields | 2 | ||
Environmental
| Operating Temperature | +5°C | Maximum Temperature Limit | +40°C |
