58122-0750
| Manufacturer | |

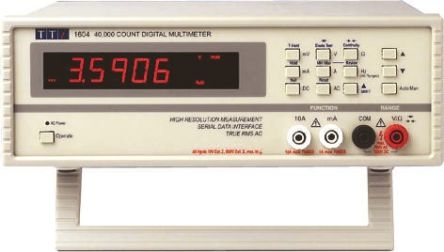

| Description | RSCAL(2848056),TT1604 digital multimeter UKAS(2848056),TT1604 digital multimeter TT1604 multimeter w/RS 232 interface Aim-TTi 1604 台式 数字万用表, 10A ac 750V ac, 400 Ω → 40 MΩ |
| Category |
对参数有疑问？问 AI 助手
Compliance
| RoHS | Not Applicable | Safety Category | CAT II 600 V |
| Safety Outputs and Type | CAT II 600 V | ||
Electrical
| Accuracy | ±3% + 4 Digits | Resolution | 0.1A 直流 |
| Display Type | LED | Current - Max | 10A 直流 |
| Voltage - Max | 750V ac | Frequency - Max | 20kHz |
| Input Resolution | 1A ac | Maximum AC Volts | 10A 交流 |
| Resolution (Bits) | 10V ac | Current Rating (Max) | ±3% + 4 位 |
| Current - Max/Contact | 10A dc | Current Regulation - Load | ±3% + 10 位 |
| Accuracy - Highest (Lowest) | ±1% + 10 位 | Accuracy - Voltmeter; Ammeter | ±5% + 4 Digits |
| Current - Peak Pulse (8/20us) | 10A ac | Voltage - Rated AC (Phase to Phase) | 750V 交流 |
| Voltage - Protection Level (VP) (2416) | 600V | ||
Mechanical
| Width | 260mm | Height | 88mm |
| Length | 235mm | Weight | 2kg |
| Size / Dimension | 235 x 260 x 88mm | ||
Product Info
| Type | Bench | Function | 交流电流、交流电压、通断、直流电流、直流电压、二极管、电阻值 |
| Calibration | RSCAL | Part Number | 1604 |
| Model Number | 1604 | Functions, Extra | AC Current, AC Voltage, Continuity, DC Current, DC Voltage, Diode, Resistance |
| Other Specifications | 40MΩ | ||
Environmental
| Operating Temperature | +40°C | ||
