58122-0640
| Manufacturer | |

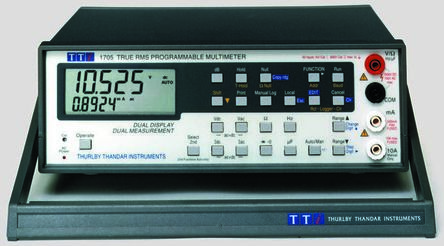

| Description | 1705-GP dual measurement multimeter RSCAL(2333251),TTI 1705 bench multimeter UKAS(2333251), TTI 1705 bench multimeter Aim-TTi 1705GP 台式 数字万用表, 10A ac 750V ac, 100 Ω → 20 MΩ, 10 nF → 100 μF |
| Category |
对参数有疑问？问 AI 助手
Compliance
| Safety Category | CAT I 1000 V, CAT II 600 V | Safety Outputs and Type | CAT I 1000 V, CAT II 600 V |
Electrical
| Accuracy | ±3% + 20 Digits | Resolution | 0.1µA 直流 |
| Capacitance | 100µF | Display Type | LCD |
| Current - Max | 10A 直流 | Voltage - Max | 750V ac |
| Frequency - Max | 50kHz | Input Resolution | 0.1µA ac |
| Maximum AC Volts | 10A 交流 | Capacitance Ratio | 10pF |
| Resolution (Bits) | 10µV ac | Capacitance @ Vr, F | 100µF |
| Current Rating (Max) | ±3% + 20 位 | Current - Max/Contact | 10A dc |
| Current Regulation - Load | ±3% + 10 位 | Accuracy - Highest (Lowest) | ±5% + 5 Digits |
| Capacitance Ratio Condition | 10pF | Accuracy - Voltmeter; Ammeter | ±1% + 80 Digits |
| Current - Peak Pulse (8/20us) | 10A ac | Voltage - Rated AC (Phase to Phase) | 750V 交流 |
| Voltage - Protection Level (VP) (2416) | 600 V, 1000 V | ||
Mechanical
| Width | 260mm | Height | 88mm |
| Length | 235mm | Weight | 2kg |
| Operating Force | 150（一次性电池）h，75（可充电电池）h | Size / Dimension | 235 x 260 x 88mm |
Product Info
| Type | Bench | Function | 交流电流、交流电压、电容值、通断、直流电流、直流电压、二极管、电阻值 |
| Part Number | 1705GP | Model Number | 1705 |
| Functions, Extra | AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Resistance | Battery Chemistry | C |
| Other Specifications | 20MΩ | ||
Environmental
| Battery Life | 150 (Disposable Cells) h, 75 (Rechargeable Cells) h | Operating Temperature | +50°C |
