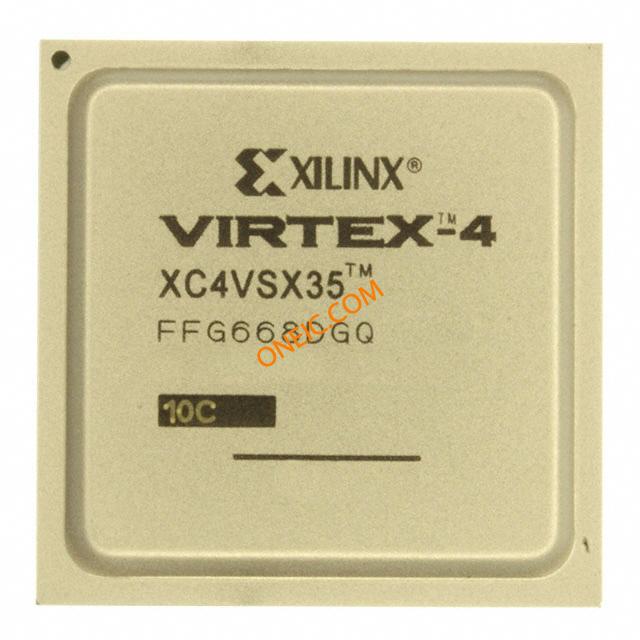

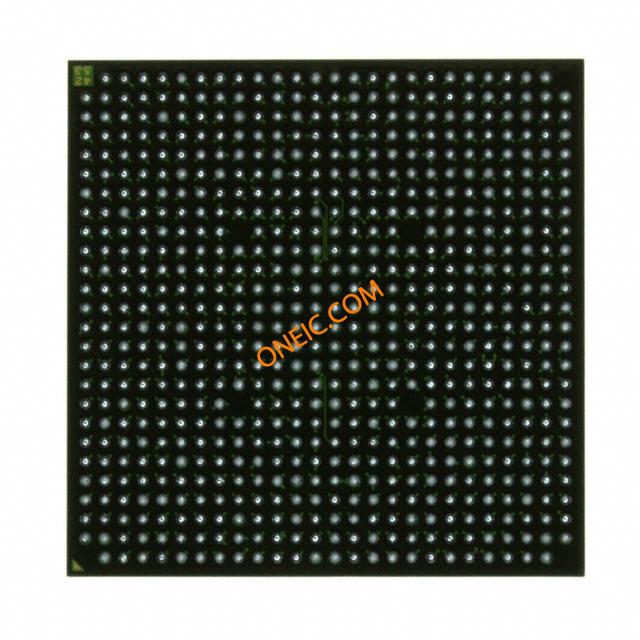

XC4VSX35-10FFG668C
| Manufacturer | |
| Description | FPGA Virtex®-4 SX Family 34560 Cells 90nm (CMOS) Technology 1.2V 668-Pin FCBGA IC FPGA 448 I/O 668FCBGA FPGA, VIRTEX-4, 35K CELLS, 668FCBGA |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 122-1498 | Standard Package | 1 |
Compliance
| Tariff No | 85423990 | ||
Electrical
| Speed | :10 | Output | :1.5V, 1.8V, 2.5V, 3.3V |
| Clock Rate | :DCM | Logic Type | :4VSX35 |
| Number of I/O | 448 | Voltage - Core | :1.14V |
| Frequency - Max | :400MHz | Voltage - Supply | 1.14 V ~ 1.26 V |
| Voltage - Supply, Digital | :3.3V | Voltage Supply - Internal | :1.14V to 1.26V |
Mechanical
| Weight | 0.0033 | Fan Type | :Virtex-4 |
| Termination | :SMD | Mounting Type | Surface Mount |
| Number of Pins | :668 | Package / Case | 668-BBGA, FCBGA |
| Material Finish | :MSL 4 - 72 hours | Supplier Device Package | 668-FCBGA |
Product Info
| Function | :FPGA | Total RAM Bits | 3538944 |
| Number of LABs/CLBs | 3840 | Number of Macrocells | :34560 |
| Number of Logic Elements/Cells | 34560 | Number of Logic Elements/Blocks | :3840 |
Environmental
| Operating Temperature | 0°C ~ 85°C | ||
