NTS358-CF
| Manufacturer | |

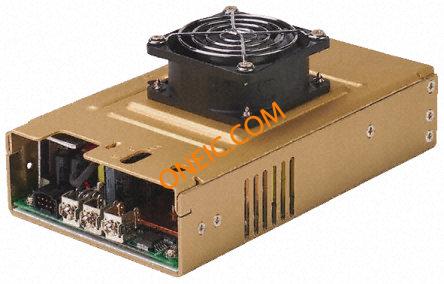

| Description | PWR SUPPLY 350W 48V OUT W/COVER AC DC power supply, SMPS, NTS350, 350W |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 50 | ||
Compliance
| RoHS | Compliant | Approval Agency | AUSTEL, CB, CE, CSA, NEMKO, TUV, UL |
Electrical
| Noise | 480mV Pk-Pk | Efficiency | 85% |
| Power (Watts) | 350W | Power - Rated | 350W |
| Voltage Rating | 120 → 300 V dc, 85 → 264 V ac | Line Regulation | ±2% |
| Load Regulation | ±2% | Current - Output | 48 VDC @ 7.3A |
| Number of Outputs | 1 | Power Supply Type | Switching (Closed Frame) |
| Power (Watts) - Max | 350W | Voltage - Input (Min) | 48V |
Mechanical
| Depth | 38.1mm | Width | 101.6mm |
| Length | 177.8mm | Weight | 1.13kg |
| Mounting Type | Chassis Mount | Package Cooled | Enclosed |
| Size / Dimension | 7.00" L x 4.00" W x 2.80" H (177.8mm x 101.6mm x 70.4mm) | ||
Product Info
| Type | Standard Product | Applications | Commercial |
Environmental
| Operate Time | 1000000h | Operating Temperature | 0°C ~ 50°C |
| Maximum Temperature Limit | +50°C | ||
