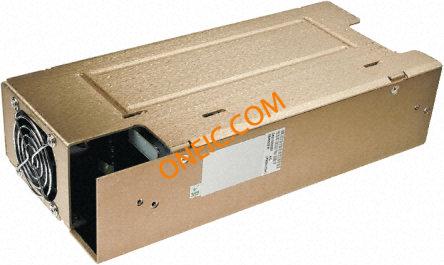

LPS355-CEF
| Manufacturer | |
| Description | PWR SUP 350W 24-48VOUT CVRENDFAN AC DC power supply, SMPS, LPS350, 350W |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 54 | ||
Compliance
| RoHS | Compliant | Approval Agency | BABT, CB, CE, CSA, NEMKO, UL, VDE |
Electrical
| Noise | 240mV Pk-Pk | Efficiency | 75% |
| Power (Watts) | 350W | Power - Rated | 350W |
| Voltage Rating | 120 → 300 V dc, 85 → 264 V ac | Line Regulation | ±2% |
| Load Regulation | ±2% | Current - Output | 24 VDC @ 14.6A |
| Number of Outputs | 1 | Power Supply Type | Switching (Closed Frame) |
| Power (Watts) - Max | 350W | Voltage - Input (Min) | 24V |
Mechanical
| Depth | 88.9mm | Width | 127mm |
| Length | 273.8mm | Weight | 1.64kg |
| Mounting Type | Chassis Mount | Package Cooled | Enclosed |
| Size / Dimension | 10.78" L x 5.00" W x 2.50" H (273.8mm x 127.0mm x 63.5mm) | ||
Product Info
| Type | Standard Product | Applications | Commercial |
Environmental
| Operate Time | 550000h | Operating Temperature | 0°C ~ 50°C |
| Maximum Temperature Limit | +50°C | ||
