点击放大查看
AXS-2520-04-09
| Manufacturer | |
| Description | CRYSTAL AND OSCILLATOR TEST & BURN-IN SOCKETS Test Sockets 2.5 x 2.0 x .5 Xtal 4 pad test socket SOCKET 4PAD 2.5X2.0 CRYSTAL |
| Category |
Business
| Lead Time | 70 Days | Subcategory | Not Specified |
| Product Category | Test Sockets | Standard Package | 25 |
Compliance
| RoHS | RoHS Compliant | ||
Mechanical
| Color | Black | Length | 2.5 mm |
| Packaging | Bulk | Size - Body | 2.50mm x 2.00mm x 0.55mm |
| Contact Finish | Gold | Number of Positions | 4 Pad |
Product Info
| Type | Socket, Test and Burn In | Function | Precision test socket for 2.5 x2 mm, 4 pad crystal oscillator packages |
| Equipment Type | Oscillator Packages | For Use With/Related Products | Crystals, Oscillators |
Environmental
| Operating Temperature | - 30 to + 150 C | ||
Documents & Media
Similar Parts
ABM10-27.000MHZ-E20-T
abracon
Crystal 27MHz 10pF 4-Pin Miniature CSMD T/R Crystal 27MHz ±20ppm (Tol) ±20ppm (Stability) 10pF FUND 100Ohm 4-Pin Miniature CSMD T/R CRYSTAL 27MHZ 10PF SMD Crystals +/-20ppm 27MHZ Crystal 27MHz ?20ppm (Tol) ?20ppm (Stability) 10pF FUND 100Ohm 4-Pin Miniature CSMD T/R Frequency Tole

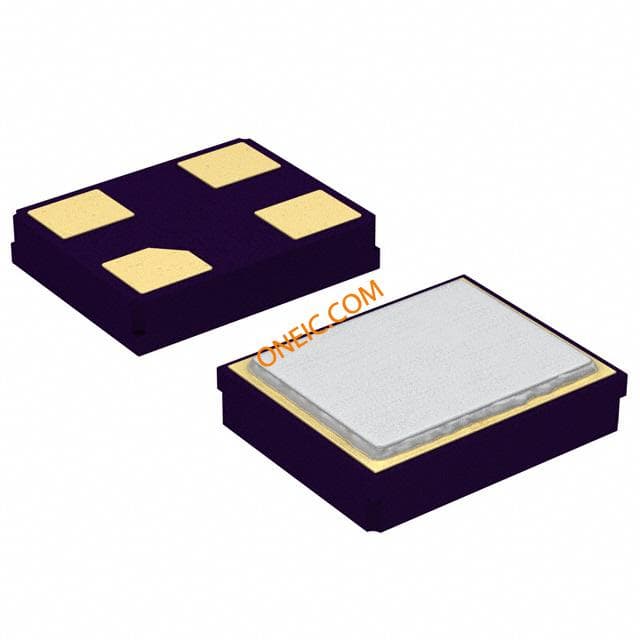

ABM10-16.384MHZ-E20-T
