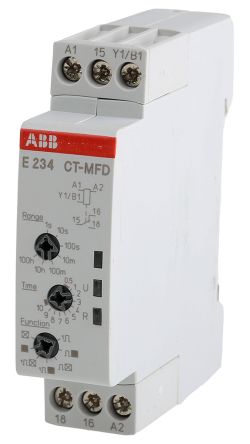

1SVR500020R0000
| Manufacturer | |
| Description | TimeDelayRelay,MultiFunction,SPDT,Din-Rail ABB 多功能 计时继电器, 0.05 s → 100 h, 单刀双掷, 1触点, SPDT, 24 → 240 V 交流，24 → 48 V 直流 |
| Category |
对参数有疑问？问 AI 助手
Electrical
| Timer Type | Multifunctiontimer | Range deg/s | 0.05sec.ec.to100hrs.rs. |
| Voltage - Max | 250 V | Operating Mode | 闪存启动（关闭）、闪存启动（接通）、脉冲关闭（辅助电压）、脉冲接通、关闭延时（辅助电压）、接通延时、脉冲形成器 |
| Delay Time - OFF | 小时，秒 | Voltage - Supply | 24 → 240 V 交流；24 → 48 V 直流 |
| Current Rating (Max) | 6 A | Voltage - Supply (Min) | 12 V |
| Drive Voltage (Max Rds On, Min Rds On) | 240/48VAC/VDC | ||
Mechanical
| Depth | 58mm | Width | 17.5mm |
| Length | 70mm | Termination | Screw |
| Mounting Type | DIN 导轨，扣入式 | Connector Type | 螺钉 |
| Mounting Style | DINrail | Contact Material | 镉 |
| Number of Contacts | 1 | Contact Layout, Typical | 单刀双掷 |
Product Info
| Function | 1SPDT | Switch Type | SPDT |
| Manufacturer | CT-MFD | Number of Timers | 多功能 |
Environmental
| Operating Temperature | -20°C | ||
