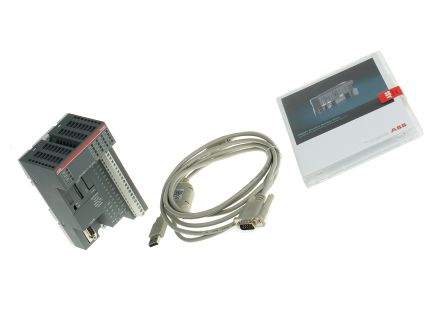

1SAP186200R0003
| Manufacturer | |
| Description | ABB PLC CPU AC500-eC0, Program Capacity 128kb DIN Rail, Panel 2A ABB AC500-eC0系列 PLC CPU, 128 kB编程容量, DIN导轨安装, 24 V 直流类别 |
| Category |
对参数有疑问？问 AI 助手
Electrical
| Memory | 128（程序存储器）kB、14（数据存储器）kB | Fall Time | 0.08（二进制）μs、0.1（字操作）μs、1.2（浮点）μs |
| Input Type | Analogue, Digital | EEPROM Size | 128 kB |
| Memory Size | 128 (Program Memory) kB, 14 (Data Memory) kB | Output Type | Analogue, Digital |
| Response Time | 0.08 (Binary) μs, 0.1 (Word Operations) μs, 1.2 (Floating Point) μs | Voltage Rating | 24 V dc |
| Current - Output | 2 A | Number of Inputs | 490 ( 162 Analogue, 328 Digital) |
| Number of Outputs | 407 (161 Analogue, 246 Digital) | Program Memory Size | 128 kB |
| Current Rating (Max) | 2 A | ||
Mechanical
| Depth | 148mm | Width | 82mm |
| Length | 74mm | Contact Type | RS485 |
| Mounting Type | DIN Rail, Panel Mount | Connector Type | RS485 |
| Package / Case | 是 | Size / Dimension | 74 x 82 x 148 mm |
Product Info
| Series | AC500-eC0 | Language | ANSI-C、C |
| Programmable | ANSI-C, C | Tape Included | Yes |
| Adapter Series | AC500-eC0 | Number of Ports | 2 |
| Channels per Circuit | 880 (320 Analogue, 560 Digital) | Other Specifications | Yes |
| Battery Type, Function | 是 | For Use With/Related Products | AC500-eCo Series |
