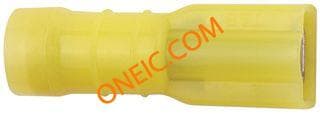

10RC-2577

Manufacturer	ABB Ltd
Description	Terminal; 12 to 10 AWG; Brass; Vinyl; Tin Plated; 0.225 in. (Max.); UL 94V-2 Terminal; 12 to 10 AWG; Brass; Vinyl; Tin Plated; 0.225 in. (Max.); UL 94V-2
Category	Connector SolutionsCrimp & Solder Terminals / SplicesCrimp Receptacles

对参数有疑问？问 AI 助手

Compliance

Standards

UL Listed (Catalog# 10RC-2577) (File# 66716), CSA Certified (Catalog# 10RC-2577) (File# 4503,7222)

Material Flammability Rating

UL 94V-2

Mechanical

Color	Yellow	Material	Brass
Wire Gauge	12-10 AWG	Termination	Wire
Angle of Throw	Straight	Contact Finish	Electroplated-Tin
Width - Overall	0.38 "	Contact Material	Brass
Length - Overall	1.04 "	Package Quantity	50
Primary Material	Quick Disconnect	Insulation Diameter	0.225 "
Insulation Material	Nylon

Product Info

Gender	Female	Features	Brazed Seam
Manufacturer	Sta-Kon®⁄250 Series
