6398BG
| Manufacturer | |
| Description | Heat Sink Passive TO-220 Radial Thru-Hole 4.4°C/W Black Anodized Heat Sinks TO-220 VERT SLDR TAB BOARD LEVEL HEAT SINK Heat Sink Passive TO-220 Radial Thru-Hole 4.4C/W Black Anodized HEAT SINK, TO-220/218, 4.4°C/W |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Heat Sinks | Other Names | 041538 |
| Part # Aliases | 041538 | Product Category | Heat Sinks |
| Standard Package | Bulk | Factory Pack Quantity | 500 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 76041090 |
| Rad Hardened | No | ||
Mechanical
| Color | Black | Depth | 25.4 mm |
| Shape | Rectangular | Width | 41.91 mm |
| Finish | Black Anodized | Height | 38.1 mm |
| Length | 25.4 mm | Weight | 0.04 |
| Material | Aluminum | Fin Height | Radial |
| Surface Type | :Black Anodised | Mounting Type | :Screw |
| Mounting Style | Through Hole | Package Cooled | TO-220 |
| Width (Inches) | :1.65" | Height (Inches) | :1.5" |
| Material Finish | Black Anodized | Width - Overall | :41.91mm |
| Length - Overall | 41.91 mm | Attachment Method | Screw |
| Heat Sink Material | Aluminum | Height - Seated (Max) | 1.000" (25.40mm) |
| Shell Size - Insert (Convert From) | :38.1mm | ||
Product Info
| Type | Passive | Application | TO-220 |
Environmental
| Heat Protection | :Aluminium | Thermal Resistance | 4.4 °C/W |
| Thermal Resistance @ Natural | 4.4°C/W | Power Dissipation @ Temperature Rise | 4W @ 30°C |
| Thermal Resistance @ Forced Air Flow | 2°C/W @ 400 LFM | ||
Documents & Media
Online Document
Online Document
PDF Document
PDF Document
Similar Parts

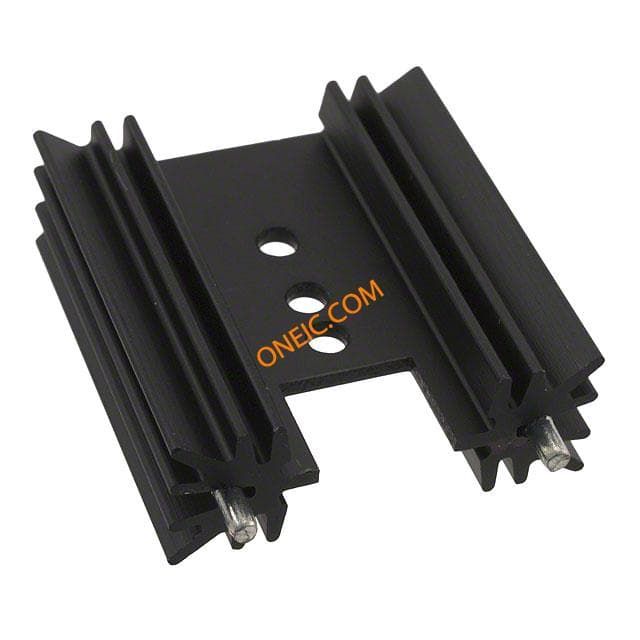

637-15ABPE
