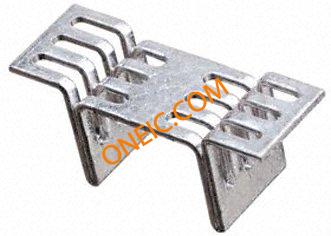

573100D00010G
| Manufacturer | |
| Description | Heat Sink Passive D PAK/TO-252 SMD Heat Sinks SLV HEATSINK TO-252 BOARD LEVEL HEAT SINK Heatsink DPak TO-252 15K/W solderable Heat Sink Passive TO-252 Surface Mount 15°C/W Matte Tin HEAT SINK TO-252 AAVID THERMALLOY 散热器, 印刷电路板表面贴装安装 , 22.86 x 8 x 10.16mm |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Heat Sinks | Lead Time | 24 Days |
| Other Names | 041639 | Subcategory | Heat Sink |
| Part # Aliases | 041639 | Product Category | Heat Sinks |
| Standard Package | Tape & Reel | Factory Pack Quantity | 250 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 90261089 |
| Rad Hardened | No | ||
Mechanical
| Depth | 8 mm | Shape | Rectangular |
| Width | 22.86 mm | Height | 10.16 mm |
| Length | 8.001 mm | Weight | 0.002 |
| Packaging | Reel | Mounting Type | PCB Surface Mount |
| Mounting Style | SMD/SMT | Package Cooled | D PAK|TO-252 |
| Width (Inches) | :0.9" | Height (Inches) | :0.39" |
| Material Finish | Tin | Width - Overall | :22.86mm |
| Length - Overall | 22.86 mm | Size / Dimension | 22.86 x 8 x 10.16mm |
| Attachment Method | Surface Mount | Heat Sink Material | Copper |
| Height - Seated (Max) | 0.400" (10.16mm) | Shell Size - Insert (Convert From) | :10mm |
Product Info
| Type | Passive | Application | TO-252 |
| For Use With/Related Products | 573100D00010 | ||
Environmental
| Heat Protection | :Copper | Thermal Resistance | 15 C/W |
| Thermal Resistance @ Natural | 15°C/W | Power Dissipation @ Temperature Rise | 0.75W @ 30°C |
| Thermal Resistance @ Forced Air Flow | 12.5°C/W @ 600 LFM | ||
