N4626-2000-RB
| Manufacturer | |
| Description | CONN HEADER 26POS .100 SMD GOLD .100" Ã .100" High Temp |
| Category |
Business
| Standard Package | 100 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | RoHS Compliance | Yes |
Mechanical
| Color | Black | Pitch | 0.100" (2.54mm) |
| Packaging | Bulk | Row Spacing | 0.100" (2.54mm) |
| Termination | Solder | Contact Type | Male Pin |
| Mounting Type | Surface Mount | Connector Type | Header, Shrouded |
| Contact Finish | Gold | Number of Rows | 2 |
| Number of Positions | 26 | Contact Length - Mating | 0.243" (6.17mm) |
| Contact Finish Thickness | 30µin (0.76µm) | ||
Product Info
| Number of Positions Loaded | All | ||
Documents & Media
Similar Parts
CHG-2026-001010-KCP
3m interconnect solutions
Conn IDC Connector SKT 26 POS 2.54mm IDT ST Cable Mount .100" Ã .100" Pak 100 Wiremount, Two Row for .100" Pitch Notched Flat Cable or Discrete Wire CONN RECEPT IDC 26POS 28-26 AWG Headers & Wire Housings 26P DR SOCKET
CHG-2026-001010-KEP
3M Electronic Solutions Division
ヘッダ & ワイヤハウジング WIREMT SKT 26 POSITION .100" Ã .100" Pak 100 Wiremount, Two Row for .100" Pitch Notched Flat Cable or Discrete Wire CONN RECEPT IDC 26POS 24-22 AWG
89126-0103
3m interconnect solutions
Conn IDC Connector SKT 26 POS 2.54mm IDT RA Cable Mount .100" Ã .100" Preassembled Wiremount for .050" Pitch Cable CONN SOCKET 26 POS IDC W/STR REL Headers & Wire Housings 26P IDC SOCKET SOCKET, IDC, STRAIN, 26WAY WIRE TO BOARD, RECEPTACLE, 26POS, 2ROW StrainRelief;for26PosIDCRibbonCableSocket;0.100Inch;0.5InchPitch;CenterBump
N3505-22
3M Electronic Solutions Division
ヘッダ & ワイヤハウジング EJECTOR LATCH SHORT HIGH TEMP CONN LATCH SHORT FOR SMD HEAD Headers & Wire Housings EJECTOR LATCH SHORT HIGH TEMP ShortLatchEjector(Beige)
CHG-2026-J01010-KEP
3M Electronic Solutions Division
Headers & Wire Housings 26P PLRZD IDC SOCKET .100" Ã .100" Polarized Wiremount, 2 row for .100" Pitch Notched Flat Cable or Discrete Wire CONN RECEPT IDC 26POS 24-22 AWG POLARIZED WIREMOUNT SOCKET;GOLD WIPE AREA;22/24AWG;26 CONTACT Conn;Rect;Socket;Wiremnt;0.1inPitch;26Pos;2Row;24-22AWG;IDC;CHGSer;Polar
N3505-23
3M Electronic Solutions Division
Headers & Wire Housings EJECTOR LATCH LONG HIGH TEMP CONN LATCH LONG FOR SMD HEAD LongLatch
N3505-23B
3M Electronic Solutions Division
ヘッダ & ワイヤハウジング EJECTOR LATCH SHORT EJECTOR LATCH SHORT EJECTOR LATCHES BLK LONG W/PINS
CHG-2026-J01010-KCP
3M Electronic Solutions Division
Headers & Wire Housings 26P PLRZD IDC SOCKET .100" Ã .100" Polarized Wiremount, 2 row for .100" Pitch Notched Flat Cable or Discrete Wire CONN RECEPT IDC 26POS 28-26 AWG Conn;Rect;Socket;Wiremnt;0.1inPitch;26Pos;2Row;28-26AWG;IDC;CHGSer;Polar

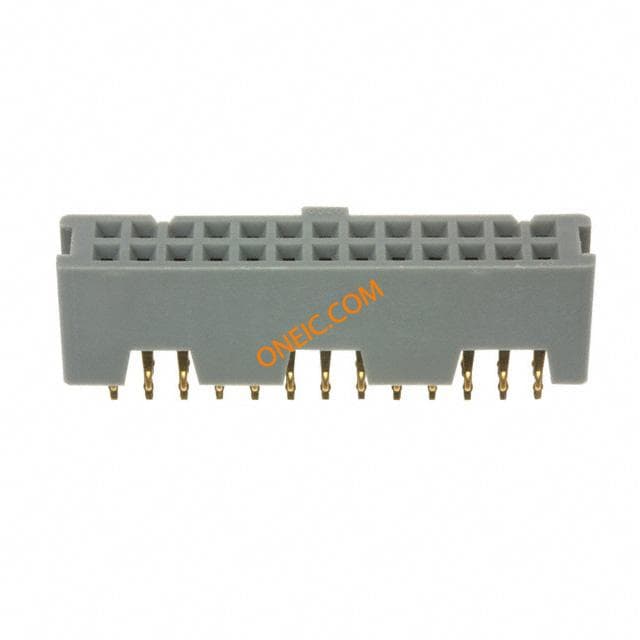

8526-4500PL
