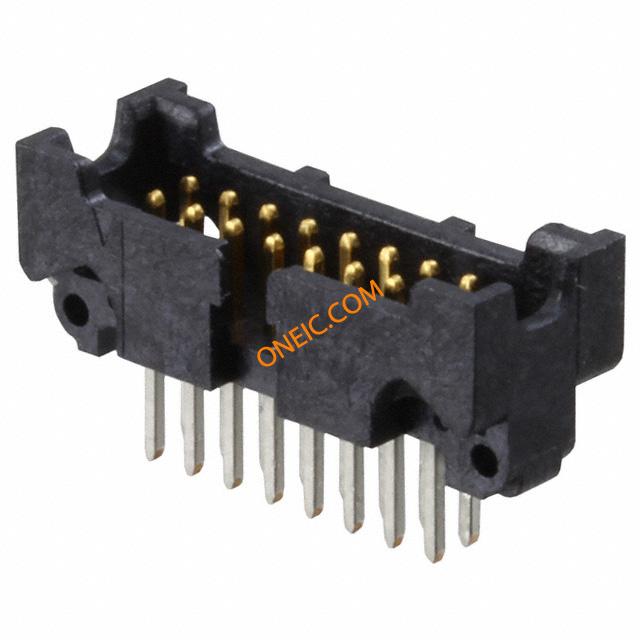

45216-600230
| Manufacturer | |
| Description | BOARDMOUNT HEADER .050" 16POS Headers & Wire Housings 16P, .050 Pitch HDR Vert Thru-Hole,30Au Conn;Rect;Header;Boardmnt;Shroud;0.050"Pitch;16Pos;452Ser;Gold(30)Plt;VTH Shrouded Boardmount Header 16P PU=500 ST, 45216-600230, 3M |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 80001405119 | Standard Package | 500 |
Compliance
| RoHS | RoHS Compliant | Material Flammability Rating | UL 94 V-0 |
Electrical
| Voltage Rating | 125 V | Number of Poles | 16 |
| Switch Function | Unlatched | Current Rating (Max) | 1 A |
Mechanical
| Pitch | 0.050" (1.27mm) | Packaging | Tray |
| Row Spacing | 0.050" (1.27mm) | Termination | Solder |
| Contact Type | Male Pin | Mounting Type | Through Hole |
| Connector Type | Header, Shrouded | Contact Finish | Gold |
| Number of Rows | 2 | Contact Material | Phosphor Bronze |
| Housing Material | Liquid Crystal Polymer (LCP) | Termination Style | Through Hole |
| 1st Contact Gender | Pin (Male) | Number of Contacts | 16 |
| Number of Positions | 16 | 1st Connector Gender | Male |
| Contact Finish Thickness | 30µin (0.76µm) | ||
Product Info
| Type | Shrouded | Series | 452 |
| Product Type | Headers | Number of Positions Loaded | All |
Environmental
| Operating Temperature | - 55 C to + 105 C | ||
