点击放大查看

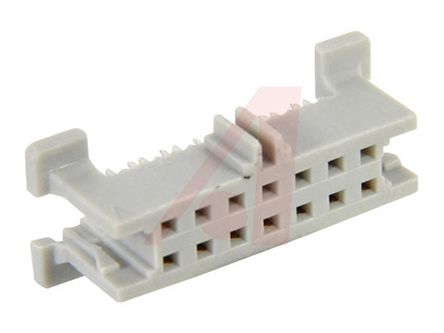

45114-010030
| Manufacturer | |
| Description | CONN SOCKET 14POS WIREMOUNT .050 Conn;Rect;Socket;RibbonCblMnt;0.050"Pitch;14Pos;451Ser;Gold(30)Plt;C-Pol. Wiremount socket 14P, 45114-010030, 3M 3M 451 系列 2行 14路 1.27mm节距 母 IDC 连接器 , 电缆安装 |
| Category |
Business
| Standard Package | 500 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Voltage Rating | 125 | Number of Poles | 14 |
| Current Rating (Max) | 1 A | ||
Mechanical
| Pitch | 0.050" (1.27mm) | Packaging | Tray |
| Wire Type | Ribbon Cable | Wire Gauge | 30 AWG |
| Orientation | 直 | Row Spacing | 0.050" (1.27mm) |
| Contact Type | Female Socket | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Receptacle | Contact Finish | Gold |
| Number of Rows | 2 | Contact Material | BeCu |
| Housing Material | Polybutylene terephthalate (PBT) | Termination Rows | 压接 |
| Cable Termination | IDC | Number of Contacts | 14 |
| Number of Positions | 14 | 1st Connector Gender | Female |
| Contact Finish Thickness | 30µin (0.76µm) | ||
Product Info
| Series | 451 | Features | Feed Through, Polarizing Key |
| Base Product Number | 45114 | ||
Environmental
| Operating Temperature | -55...+105 °C | ||
