45114-010000
| Manufacturer | |
| Description | CONN SOCKET 14POS WIREMOUNT .050 Wiremount socket 14P PU=500 ST, 45114-010000, 3M |
| Category |
Business
| Standard Package | 500 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Voltage Rating | 125 | Number of Poles | 14 |
| Current Rating (Max) | 1 A | ||
Mechanical
| Pitch | 0.050" (1.27mm) | Packaging | Tray |
| Wire Type | Ribbon Cable | Wire Gauge | 30 AWG |
| Row Spacing | 0.050" (1.27mm) | Contact Type | Female Socket |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Receptacle |
| Contact Finish | Gold | Number of Rows | 2 |
| Contact Material | BeCu | Housing Material | Polybutylene terephthalate (PBT) |
| Cable Termination | IDC | Number of Positions | 14 |
| 1st Connector Gender | Female | Contact Finish Thickness | Flash |
Product Info
| Series | 451 | Features | Feed Through, Polarizing Key |
Environmental
| Operating Temperature | -55...+105 °C | ||
Documents & Media
Similar Parts
3448-45114
3M
80001406844 STRAIN RELIEF FOR 45114 SOCKET StrainRelief;for14Pos.RibbonCableWiremountSocket(45114);3M/451Series Strain Relief 14P, 3448-45114, 3M

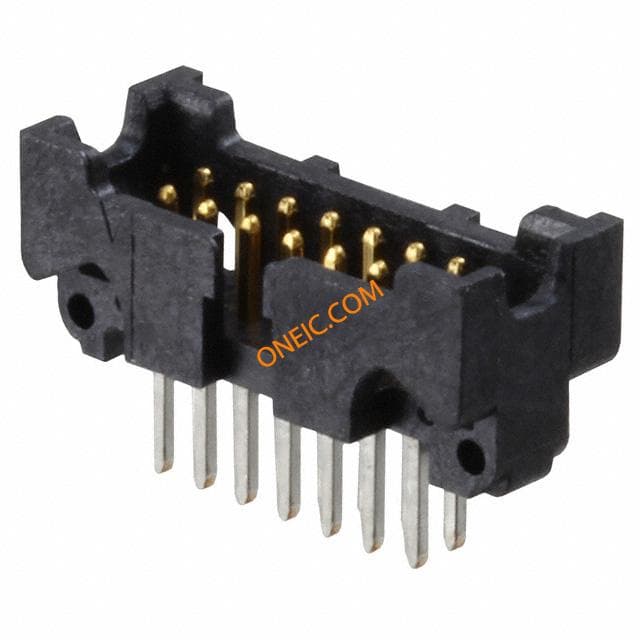

45214-600230
3M
BOARDMOUNT HEADER .050" 14POS Conn;Rect;Header;Boardmnt;Shroud;0.050"Pitch;14Pos;452Ser;Gold(30)Plt;VTH Shrouded Boardmount Header 14P PU=500 ST, 45214-600230, 3M

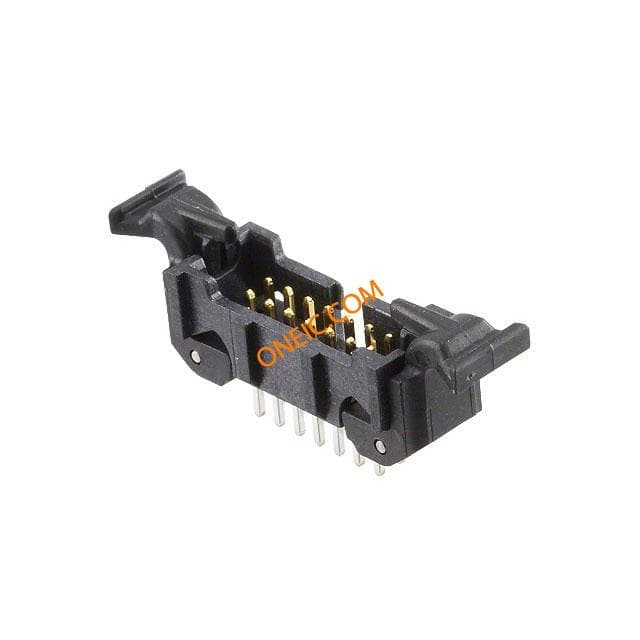

45214-620230
