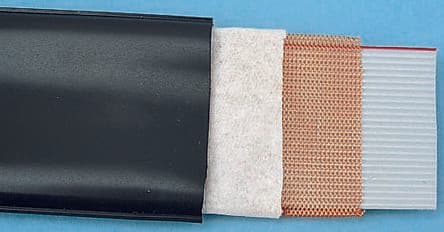

3517/26
| Manufacturer | |
| Description | 26 way screened & jacketed ribbon 5m FlatCable(Shielded)Jacketed0.0528AwgStranded,PVC/PVC26conductors 3M 3517 系列 26 路 屏蔽 带状电缆, 36.3 mm 宽 |
| Category |
对参数有疑问？问 AI 助手
Compliance
| RoHS | RoHS Compliant Part | Standards | ULCL2,ULAWM20879,cULAWMIIA/BFT1 |
Electrical
| Core Type | 7/0.127 mm | Impedance | 119 Ω |
| Capacitance | 70.52 pF/m | Voltage Rating | 300 V |
| Conductor Strand | Stranded | Number of Conductors | 26 |
| Impedance (Max) (Zzt) | 119Ω | ||
Mechanical
| Pitch | 1.27mm | Shape | 带状 |
| Width | 36.3 mm | Length | 5m |
| Cable Type | Ribbon | Wire Gauge | 28 |
| Shield Type | Screened | Cable Length | 5m |
| Jacket Color | Black | Conductor Type | 股绞电线 |
| Shield Material | ExpandedCopper | Insulation Color | 黑色 |
| Pitch - Connector | 7/0.127 mm | Color - Connectors | Black |
| Conductor Material | TinnedCopper | Material - Insulation | Polyvinylchloride |
| Number of Cable Pairs | 7×36 | Number of Cores/Bus Width | 7 |
| Wire Gauge or Range - AWG | 0.127 mm | Number of Positions/Bay/Row | 26 |
| Diameter - Inside, Non-Expanded | 0.127 mm | ||
Product Info
| Series | 3517 | Number of Lines | 26 |
Environmental
| Temperature Rating | -20to+80°C | Operating Temperature | +80°C |
