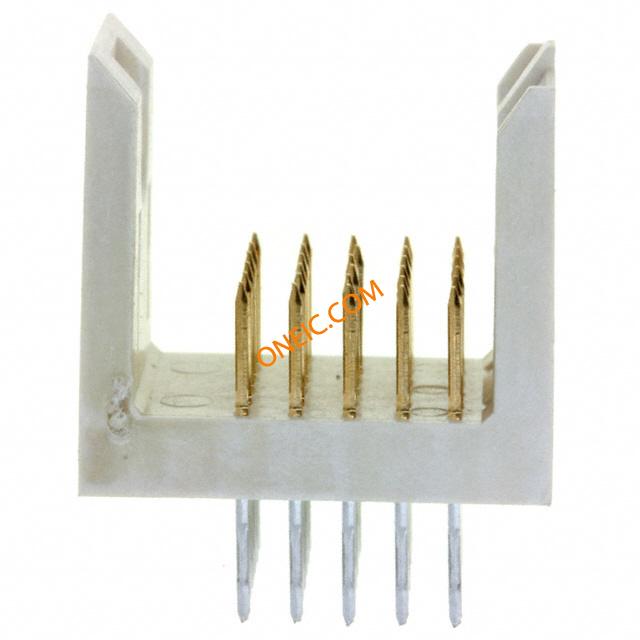

MP2-H030-51P1-S-KR
| Manufacturer | |
| Description | Conn Hard Metric HDR 30 POS 2mm Press Fit ST Thru-Hole 2 mm 4/5-Row, Vertical, Solder or Press-Fit Tail, Shouldered Pin CONN HEADER VERT 5R0W 30POS P-F High Speed / Modular Connectors 30 POS 2MM PRESS FIT ST THRU-HOLE |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 05111174469 70010001462 | Product Category | High Speed / Modular Connectors |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Material Flammability Rating | UL94 V-0 |
Electrical
| Current Rating (Max) | 1.5A | ||
Mechanical
| Color | Beige | Pitch | 2 mm |
| Packaging | Tube | Termination | Press Fit |
| Mounting Type | Through Hole | Connector Type | Header, Male Pins |
| Contact Finish | Gold Over Nickel | Mounting Style | PCB |
| Number of Rows | 5 | Connector Style | Futurebus+® |
| Connector Usage | Backplane | Contact Material | Copper Alloy |
| Housing Material | Liquid Crystal Polymer (LCP) | Termination Style | Press Fit |
| Number of Contacts | 30 | Number of Positions | 30 |
| Contact Finish Thickness | 30µin (0.76µm) | ||
Product Info
| Type | Hard Metric | Series | MP2 |
| Features | Board Guide | Number of Positions Loaded | All |
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
