CHG-1004-001010-KEP
| Manufacturer | |
| Description | Conn IDC Connector SKT 4 POS 2.54mm Crimp ST Cable Mount .100" for .100" Pak 100 Wiremount, Pitch Notched Flat Cable or Discrete Wire CONN RECEPT IDC 4POS 24-22 AWG socket; wiremount; .1" pitch; Gold Wipe area; 22 AND 24 AWG; 4 CONTACT Headers & Wire Housings 4P 1 ROW IDC SOCKET 22 AND 24 AWG socket,wiremount,.1"pitch,GoldWipearea,22AND24AWG,4CONTACT |
| Category |
Business
| Part # Aliases | 05400737513 80610192645 | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 100 |
Compliance
| RoHS | Lead free / RoHS Compliant | Standards | MIL-G-45204,QQ-N-290 |
| Approval Agency | cUL,UL | RoHS Compliance | Yes |
| Material Flammability Rating | UL94V-0 | ||
Electrical
| Current Rating (Max) | 2 A | ||
Mechanical
| Color | Gray | Pitch | 2.54 mm |
| Packaging | Bulk | Wire Type | Discrete or Ribbon Cable |
| Wire Gauge | 22-24 AWG | Termination | Crimp |
| Contact Type | Female Socket | Mounting Type | Free Hanging (In-Line) |
| Angle of Throw | Straight | Connector Type | Receptacle |
| Contact Finish | Gold Over Nickel | Mounting Style | Cable |
| Number of Rows | 1 | Contact Material | Copper Alloy |
| Length - Overall | 0.425" | Primary Material | Wiremount |
| Cable Termination | IDC | Pin Hole Diameter | 0.1" |
| Termination Style | IDC | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 4 | Dielectric Material | PBT |
| Insulation Diameter | 0.054" | Number of Positions | 4 |
| Contact Finish Thickness | 30µin (0.76µm) | ||
Product Info
| Type | IDC Connector | Gender | SKT |
| Series | CHG | Features | Closed End |
| Manufacturer | CHGSeries | Product Type | Receptacles / Sockets - Housings |
Environmental
| Operating Temperature | -55to+105°C | ||
Similar Parts
3624-41
3M Electronic Solutions Division

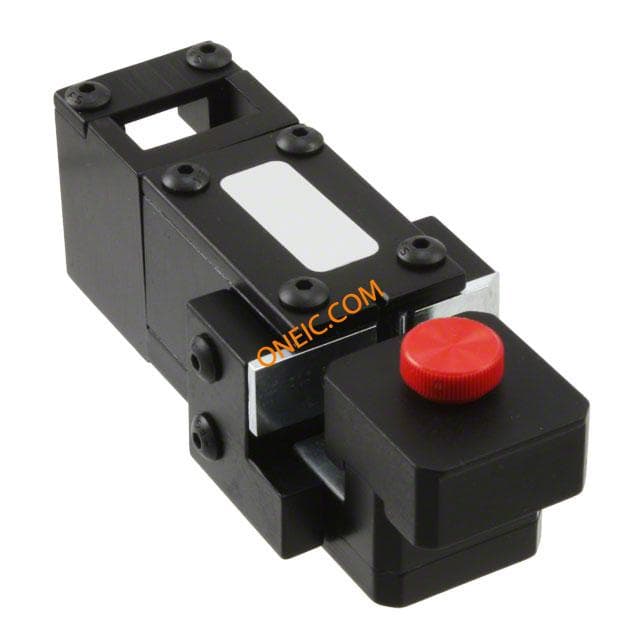

Bench Top Tools CHG ASSEMBLY HEAD Assembly Heads, Applicators and Termination devices TOOL HEAD ASSY 28-22AWG 1&2ROW AssemblyHead
929647-09-04-EU
3m interconnect solutions
Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole .100", .235"/.318" Mating Length, Straight & Right Angle, Solder Tails CONN HEADER 4POS STR .100" GOLD
929550-01-04-I
3m interconnect solutions

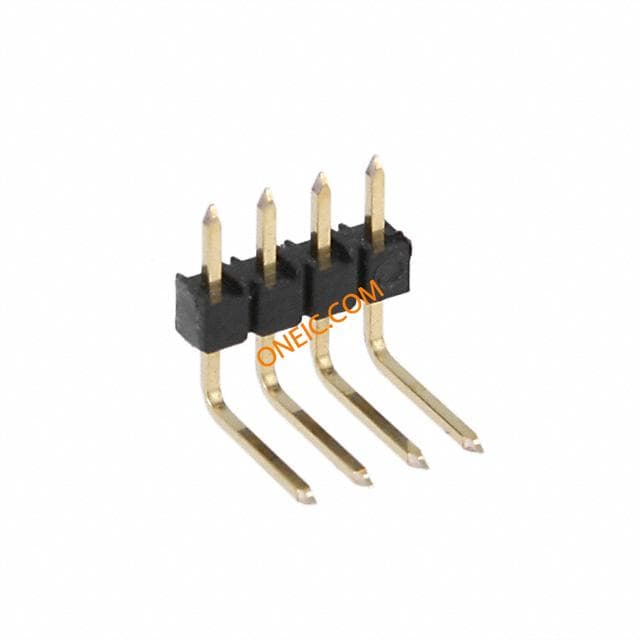

Conn Wire to Board HDR 4 POS 2.54mm Solder RA Thru-Hole .100", .295" Mating Length, Straight & Right Angle, Solder Tails CONN HEADER .100 SNGL R/A 4POS
