929974-01-36-RK
| Manufacturer | |
| Description | Conn Socket Strip SKT 36 POS 2.54mm Solder ST Thru-Hole .100" and .100" Ã .100" Straight, Solder Tails, 1 row (1-40 contacts) or 2 row (2-80 contacts) CONN RECEPT .100 SNGL STR 36POS Headers & Wire Housings BOARDMOUNT SOCKET SOCKET, THT, PCB, 36WAY 3M(TM)BOARDMOUNTSOCKET,929SERIES,929974-01-36-RK 3M 929 系列 36路 直 2.54mm节距 通孔 印刷电路板插座, 板安装 |
| Category |
Business
| Part # Aliases | 05111166624 80000909657 | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 300 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85366990 |
Electrical
| Current Rating (Max) | 1 A | ||
Mechanical
| Color | Black | Depth | 2.54 mm |
| Pitch | 0.100" (2.54mm) | Height | 8.26 mm |
| Weight | 0.676 | Packaging | Bulk |
| Termination | Solder | Contact Type | Forked |
| Housing Color | Black | Mounting Type | Through Hole |
| Connector Type | Receptacle | Contact Finish | Tin Over Nickel |
| Mounting Style | Through Hole | Number of Rows | 1 |
| Contact Material | Copper Alloy | Housing Material | Polycyclohexylenedimethylene Terephthalate (PCT) |
| Length - Overall | 91.44 mm | Termination Style | Through Hole |
| 1st Contact Gender | Socket (Female) | Number of Contacts | 36 |
| Contact Termination | :Through Hole Vertical | Number of Positions | 36 |
| Contact Finish Thickness | 100µin (2.54µm) | ||
Product Info
| Type | Socket Strip | Gender | SKT |
| Series | 929 | DELETED | Compliant |
| Product Type | Headers | Number of Positions Loaded | All |
Environmental
| Operating Temperature | -40C to 105C | ||
Documents & Media
Similar Parts
929705-11-36-EU
3m interconnect solutions
Conn Unshrouded Header HDR 36 POS 2.54mm Solder ST Thru-Hole .100", .235"/.318" Mating Length, Straight & Right Angle, Solder Tails CONN HEADER 36POS STR .100" GOLD Headers & Wire Housings FULL STICK HDR/36POS
929834-05-36-RK
3m interconnect solutions
Conn Unshrouded Header HDR 36 POS 2.54mm Solder ST Thru-Hole .100", .235"/.318" Mating Length, Straight & Right Angle, Solder Tails CONN HEADER .100 SNGL STR 36POS Headers & Wire Housings FULL STICK HDR/36POS
929805-01-36-EU
3m interconnect solutions
Conn Unshrouded Header HDR 36 POS 2.54mm Solder ST Thru-Hole .100" and .100" Ã .100", .093" Mating Length, Straight, Solder Tails CONN HEADER 36POS STR .100" GOLD
929647-08-36-EU
3m interconnect solutions
Conn Unshrouded Header HDR 36 POS 2.54mm Solder ST Thru-Hole CONN HEADER 36POS STR .100" GOLD
929835-02-36-RK
3m interconnect solutions
Conn Unshrouded Header HDR 36 POS 2.54mm Solder RA Thru-Hole CONN HEADER 36POS R/A .100" TIN
929648-02-36-EU
3m interconnect solutions
Conn Unshrouded Header HDR 36 POS 2.54mm Solder RA Thru-Hole CONN HEADER 36POS R/A .100" GOLD
929648-05-36-EU
3m interconnect solutions
Conn Unshrouded Header HDR 36 POS 2.54mm Solder RA Thru-Hole CONN HEADER 36POS R/A .100" GOLD
929450-01-36-I
3m interconnect solutions
Conn Unshrouded Header HDR 36 POS 2.54mm Solder ST Thru-Hole .100", .295" Mating Length, Straight & Right Angle, Solder Tails CONN HEADER .100 SNGL STR 36POS Headers & Wire Housings 36P STRT 1 ROW GOLD Conn;Rect;Header;PinStrip;0.100in;0.295inMateL;Str/Rt;SolderTail;929 3M 929 系列 2.54mm节距 36路 (1排) 直 引脚管座, 焊接端接, 2.5A , 通孔

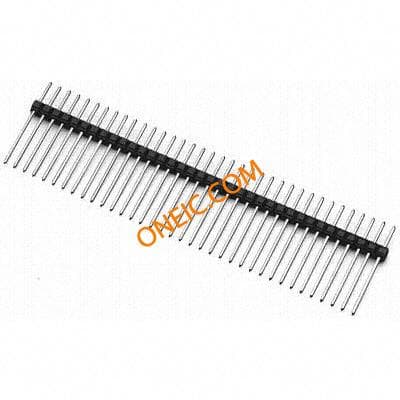

929647-09-36-EU
3m interconnect solutions
Conn Unshrouded Header HDR 36 POS 2.54mm Solder ST Thru-Hole .100", .235"/.318" Mating Length, Straight & Right Angle, Solder Tails CONN HEADER 36POS STR .100" GOLD Headers & Wire Housings FULL STICK HDR/36POS
929805-01-36-I
3m interconnect solutions
Conn Unshrouded Header HDR 36 POS 2.54mm Solder ST Thru-Hole .100" and .100" Ã .100", .093" Mating Length, Straight, Solder Tails CONN HEADER 36POS STR .100" GOLD Headers & Wire Housings 36P STRT 1 ROW GOLD
929648-01-36-EU
3M Electronic Solutions Division
Headers & Wire Housings PIN STRP HDR 36 POS .100", .235"/.318" Mating Length, Straight & Right Angle, Solder Tails CONN HEADER 36POS R/A .100" GOLD
929700-06-36
3M Electronic Solutions Division
Headers & Wire Housings 36P STRT 1 ROW TIN .100", .235"/.318" Mating Length, Straight & Right Angle, Solder Tails CONN HEADER 36POS STR .100" TIN Header; Pin Strip; 36; Flange; 4-40; Copper Alloy; 2.5 A; Black Insulation Header;PinStrip;36;.100#,.318#MatingL,Straight,Soldertail,tin-leadpltg 3M 929 系列 2.54mm节距 36路 (1排) 直 引脚管座, 焊接端接, 2.5A , 通孔
929834-08-36-RK
3M Electronic Solutions Division
Headers & Wire Housings 36P PIN STRIP HEADER STRAIGHT, TIN, 1ROW CONN HEADER 36POS STR .100" TIN
929700-06-36-RK
3m interconnect solutions
Conn Unshrouded Header HDR 36 POS 2.54mm Solder ST Thru-Hole CONN HEADER 36POS STR .100" TIN
929648-04-36-EU
3m interconnect solutions
Conn Unshrouded Header HDR 36 POS 2.54mm Solder RA Thru-Hole CONN HEADER 36POS R/A .100" GOLD
929834-09-36-RK
3M Electronic Solutions Division
Headers & Wire Housings 36P PIN STRIP HEADER STRAIGHT, TIN, 1ROW CONN HEADER 36POS STR .100" TIN
929834-04-36-RK
3M Electronic Solutions Division
Headers & Wire Housings FULL STICK HDR/36POS .100", .235"/.318" Mating Length, Straight & Right Angle, Solder Tails CONN HEADER .100 SNGL STR 36POS
924717-10-36-I
3M Electronic Solutions Division
Headers & Wire Housings 36P PIN STRP HDR BOARD STACKING SR CONN HEADER 36POS DL .100" GOLD

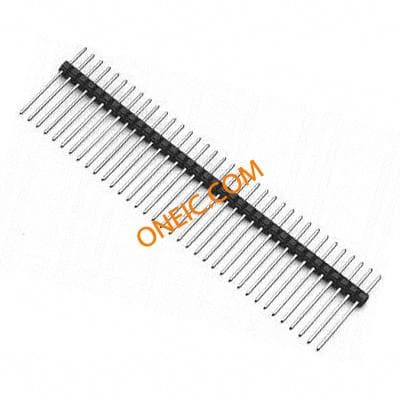

929647-01-36-EU
3M Electronic Solutions Division
Headers & Wire Housings 36P PIN STRIP HDR 1 ROW GOLD .100", .235"/.318" Mating Length, Straight & Right Angle, Solder Tails CONN HEADER 36POS STR .100" GOLD

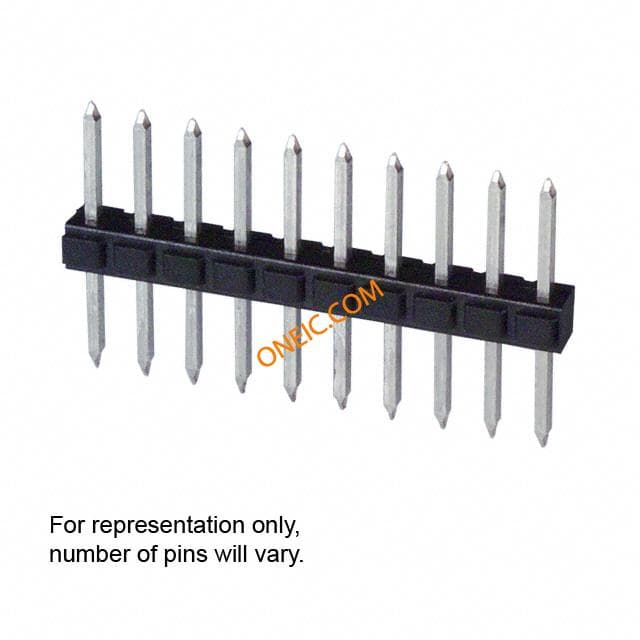

929834-02-36
