929834-03-22-RK
| Manufacturer | |
| Description | Conn Unshrouded Header HDR 22 POS 2.54mm Solder ST Thru-Hole .100", .235"/.318" Mating Length, Straight & Right Angle, Solder Tails CONN HEADER .100 SNGL STR 22POS Headers & Wire Housings .100 STR 22 PIN .235-.410 |
| Category |
Business
| Other Names | 929834E-03-22 | Part # Aliases | 07630803880 80001318098 |
| Product Category | Headers & Wire Housings | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Voltage Rating | 1.5 kV | Current Rating (Max) | 2.5 A |
Mechanical
| Color | Black | Pitch | 2.54 mm |
| Packaging | Bulk | Termination | Solder |
| Contact Type | Male Pin | Mounting Type | Through Hole |
| Connector Type | Header, Unshrouded, Breakaway | Contact Finish | Tin Over Nickel |
| Number of Rows | 1 | Contact Material | Copper Alloy |
| 1st Contact Gender | Pin (Male) | Number of Contacts | 22 |
| Number of Positions | 22 | Contact Length - Mating | 0.235" (5.97mm) |
| Contact Finish Thickness | 200µin (5.08µm) | ||
Product Info
| Type | Unshrouded Header | Gender | HDR |
| Series | 929 | Product Type | Headers |
| Number of Positions Loaded | All | ||
Documents & Media
Similar Parts
929850-01-22-RB
3M Electronic Solutions Division
Headers & Wire Housings 22P STRT BRD MNT SKT 1 ROW 30MICRO AU .100" and .100" Ã .100" Straight, Solder Tails, 1 row (1-40 contacts) or 2 row (2-80 contacts) CONN RCPT 22POS STR .100" GOLD
929850-01-22-RA
3m interconnect solutions
Conn Socket Strip SKT 22 POS 2.54mm Solder ST Thru-Hole .100" and .100" Ã .100" Straight, Solder Tails, 1 row (1-40 contacts) or 2 row (2-80 contacts) CONN RECEPT .100 SNGL STR 22POS

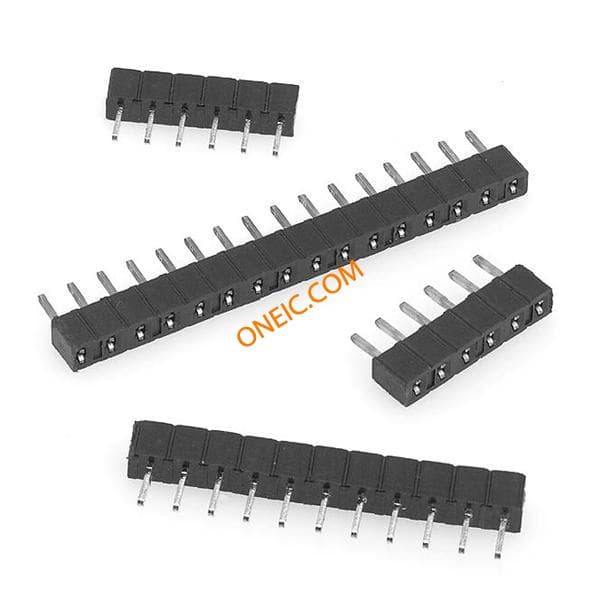

929870-01-22-RA
