点击放大查看
929647-01-03-I
| Manufacturer | |
| Description | Conn Unshrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole .100", .235"/.318" Mating Length, Straight & Right Angle, Solder Tails CONN HEADER 3POS STR .100 GOLD Headers & Wire Housings 3P STRT 1 ROW GOLD BOARD-BOARD CONN, HEADER, 3POS, 1ROW |
| Category |
Business
| Part # Aliases | 05113843884 80620009193 | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 100 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85366930 |
Electrical
| Voltage Rating | 1.5 kV | Current Rating (Max) | 2.5 A |
Mechanical
| Color | Black | Pitch | 2.54 mm |
| Weight | 0 | Packaging | Bulk |
| Termination | Solder | Contact Type | Male Pin |
| Mounting Type | Through Hole | Connector Type | Header, Unshrouded, Breakaway |
| Contact Finish | Gold Over Nickel | Number of Rows | 1 |
| Contact Material | Copper Alloy | Housing Material | Polybutylene Terephthalate (PBT) |
| 1st Contact Gender | Pin (Male) | Number of Contacts | 3 |
| Contact Termination | :Through Hole Vertical | Number of Positions | 3 |
| Contact Length - Mating | 0.235" (5.97mm) | Contact Finish Thickness | 10µin (0.25µm) |
Product Info
| Type | Unshrouded Header | Gender | HDR |
| Series | 929 | Product Type | Headers |
| Number of Positions Loaded | All | ||
Documents & Media
Similar Parts
929850-01-03-RA
3m interconnect solutions
Conn Socket Strip SKT 3 POS 2.54mm Solder ST Thru-Hole .100" and .100" Ã .100" Straight, Solder Tails, 1 row (1-40 contacts) or 2 row (2-80 contacts) CONN RECEPT .100 SNGL STR 3POS
929841-01-03-30
3m interconnect solutions
Conn Socket Strip SKT 3 POS 2.54mm Solder ST Thru-Hole CONN RCPT 3POS STR .100" GOLD
929850-01-03-10
3M Electronic Solutions Division
ヘッダ & ワイヤハウジング 3P 1ROW STRT SOCKET CONN RECEPT .100 SNGL STR 3POS Headers & Wire Housings 3P 1ROW STRT SOCKET
929870-01-03-RA
3M Electronic Solutions Division
Headers & Wire Housings 3P BRD MNT SKT GOLD 1 ROW 10MICRO AU .100" Low Profile, Straight, Solder Tails CONN RCPT 3POS STR .100" GOLD

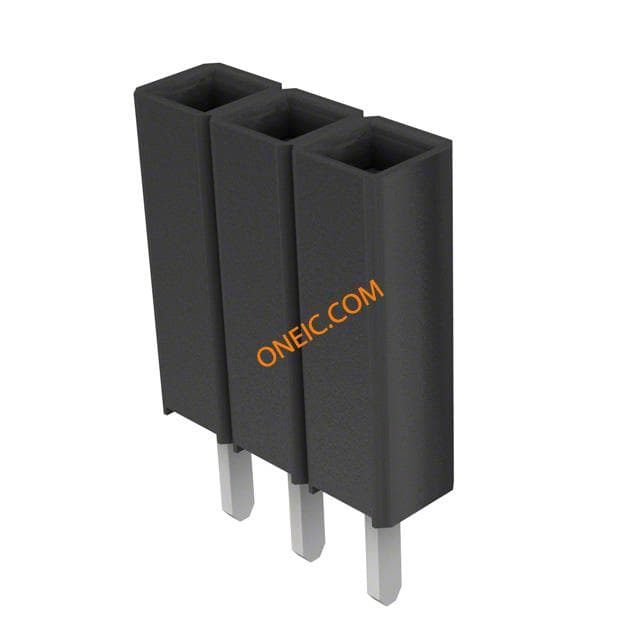

929974-01-03-RK
