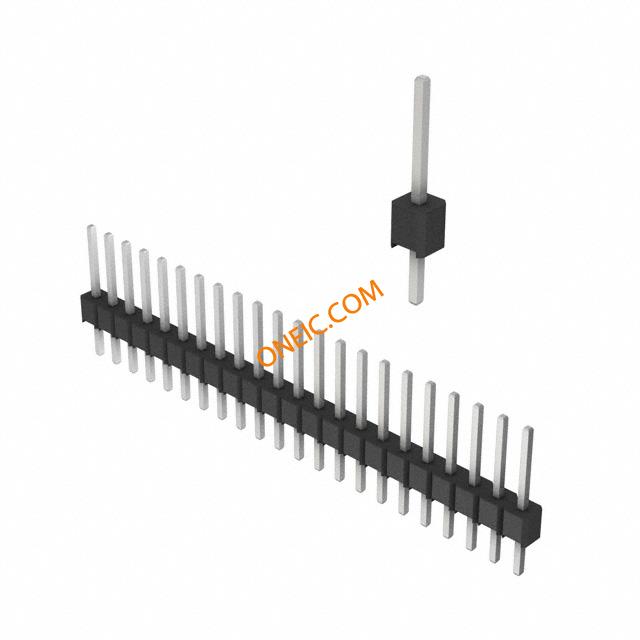

929400-01-22
| Manufacturer | |
| Description | 22/HDR/PS/1R/ST/.295/ST .130/TIN/90:10 .100", .295" Mating Length, Straight & Right Angle, Solder Tails CONN HEADER .100 SNGL STR 22POS Headers & Wire Housings .100/.295 22 PIN HDR STR |
| Category |
Business
| Part # Aliases | 07630803459 80001313883 | Product Category | Headers & Wire Housings |
| Standard Package | 1 | ||
Compliance
| RoHS | No | ||
Mechanical
| Color | Black | Pitch | 0.100" (2.54mm) |
| Packaging | Bulk | Termination | Solder |
| Contact Type | Male Pin | Mounting Type | Through Hole |
| Connector Type | Header, Unshrouded, Breakable | Contact Finish | Tin-Lead |
| Number of Rows | 1 | Termination Style | Through Hole |
| 1st Contact Gender | Pin (Male) | Number of Contacts | 8 |
| Number of Positions | 22 | Contact Length - Mating | 0.295" (7.49mm) |
| Contact Finish Thickness | 100µin (2.54µm) | ||
Product Info
| Type | Pin Strip | Series | 929 |
| Product Type | Headers | Number of Positions Loaded | All |
