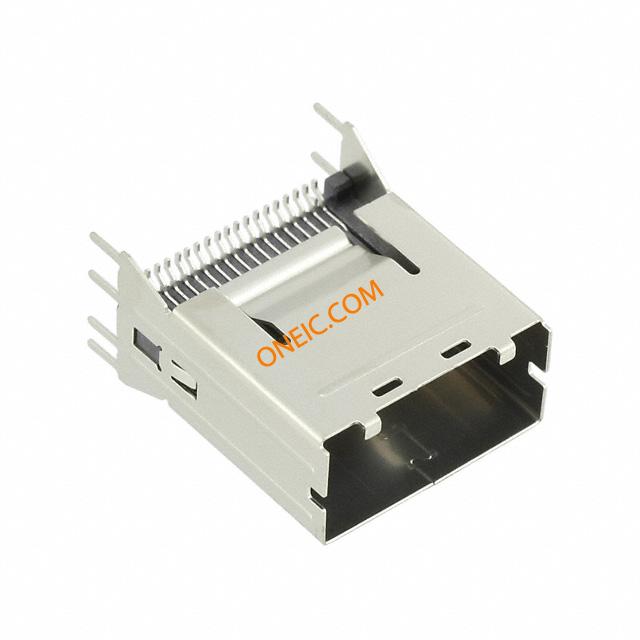

8AB36-1420-LJ
| Manufacturer | |
| Description | Conn MINI-SAS RCP 36 POS 0.8mm Solder ST SMD 36 Terminal 1 Port Tray Internal Vertical Combo Connector MSAS COMBO VERT I/O Connectors MINI-SAS COMBO VERT RECPT R/A THRU HOLE |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | SAS Connectors | Part # Aliases | 05111526622 XE004226579 |
| Product Category | I/O Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 1400 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | RoHS Compliance | Yes |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Current Rating (Max) | 500 mA | Insulation Resistance | 1000 MOhms |
Mechanical
| Color | Black | Pitch | 0.8 mm |
| Packaging | Tray | Termination | Solder |
| Mounting Type | Surface Mount | Connector Type | SAS, Mini |
| Contact Finish | Gold | Mounting Style | Through Hole |
| Connector Style | Receptacle | Contact Material | Copper Alloy |
| Housing Material | Thermoplastic | Termination Style | Solder Tail |
| Number of Contacts | 36 | Number of Positions | 36 |
| Contact Finish Thickness | 30µin (0.76µm) | ||
Product Info
| Type | MINI-SAS | Gender | RCP |
| Features | Board Guide, Keyed | ||
Environmental
| Operating Temperature | - 20 C to + 85 C | ||
