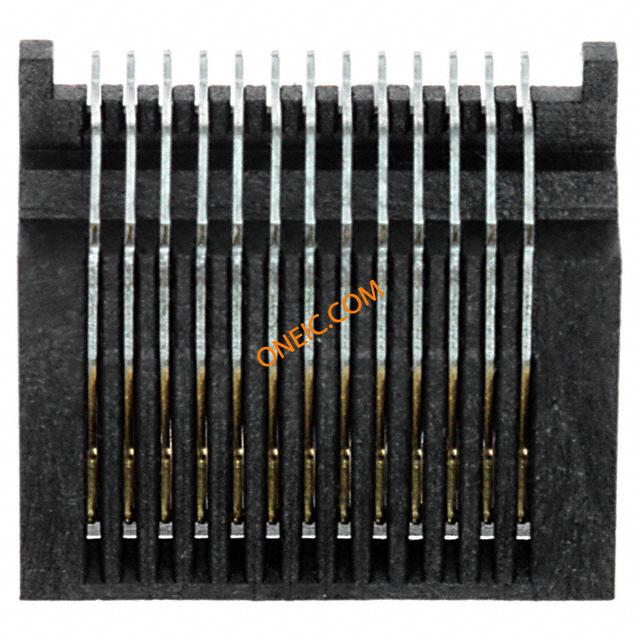

8A26-2030-LJ
| Manufacturer | |
| Description | Conn MINI-SAS RCP 26 POS 0.8mm Solder RA SMD 26 Terminal 1 Port Tray I/O Connectors 26P RT ANGLE SMT TYPE MINI-SAS External, Right Angle Receptacle/Metal EMI Cage CONN MINI SAS 26POS R/A SMD |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | SAS Connectors | Part # Aliases | 05111526489 XE004226231 |
| Product Category | I/O Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 3500 | ||
Compliance
| RoHS | RoHS Compliant | RoHS Compliance | Yes |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Current Rating (Max) | 0.5 A | Insulation Resistance | 1000 MOhms |
Mechanical
| Color | Black | Pitch | 0.8 mm |
| Packaging | Tray | Termination | Solder |
| Mounting Type | Surface Mount | Connector Type | SAS, Mini |
| Contact Finish | Gold | Mounting Style | SMD/SMT |
| Connector Style | Receptacle | Contact Material | Copper Alloy |
| Housing Material | Thermoplastic | Number of Contacts | 26 |
| Number of Positions | 26 | Contact Finish Thickness | 30µin (0.76µm) |
Product Info
| Type | MINI-SAS | Gender | RCP |
| Features | Board Guide, EMI Shielded | ||
Environmental
| Operating Temperature | - 20 C to + 85 C | ||
