89160-0103
| Manufacturer | |
| Description | 60/SKT/DUAL RECESS CVR/PRASB/CB/SR/30AVG .100" Ã .100" Preassembled Wiremount for .050" Pitch Cable CONN SOCKET 60POS IDC DL POL Headers & Wire Housings 60P IDC SOCKET |
| Category |
Business
| Part # Aliases | 05400754508 80610706923 | Product Category | Headers & Wire Housings |
| Standard Package | 500 | Factory Pack Quantity | 500 |
Compliance
| RoHS | Lead free / RoHS Compliant | RoHS Compliance | Yes |
Electrical
| Current Rating (Max) | 1 A | ||
Mechanical
| Color | Gray | Pitch | 0.100" (2.54mm) |
| Weight | 13.500 lbs | Packaging | Bulk |
| Wire Type | Ribbon Cable | Wire Gauge | 26-28 AWG |
| Row Spacing | 0.100" (2.54mm) | Contact Type | Female Socket |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Receptacle |
| Contact Finish | Gold | Mounting Style | Cable |
| Number of Rows | 2 | Contact Material | Phosphor Bronze |
| Cable Termination | IDC | Termination Style | IDC |
| 1st Contact Gender | Socket (Female) | Number of Contacts | 60 |
| Number of Positions | 60 | Contact Finish Thickness | 30µin (0.76µm) |
Product Info
| Type | Ribbon Cable | Series | 891 |
| Features | Feed Through; Polarizing Key, Strain Relief | Product Type | Receptacles / Sockets - Housings |
Documents & Media
Similar Parts
3372-1303
3m interconnect solutions
Conn Ejector Header HDR 60 POS 2.54mm Solder RA Thru-Hole .100" Ã .100" Three-Wall Latch/Ejector, Straight and Right Angle CONN HEADER 60POS R/A LONG LA Headers & Wire Housings 60 PIN 3WALL RT ANG LONG ROLL PIN
N3372-6502
3m interconnect solutions
Conn Ejector Header HDR 60 POS 2.54mm Solder ST Thru-Hole CONN HEADER 60PS STR SHORT LA
2560-60K2UB
3m interconnect solutions
Conn Shrouded Header HDR 60 POS 2.54mm Solder ST Thru-Hole CONN HEADER 60POS STR GOLD T/
D2560-6002-AR
3m interconnect solutions
Conn Shrouded Header HDR 60 POS 2.54mm Solder ST Thru-Hole CONN HEADER 60POS VERT 10GOLD Headers & Wire Housings 60P 4-WALL HEADER STRAIGHT 10U AU
D3372-5002-AR
3m interconnect solutions
Conn Ejector Header HDR 60 POS 2.54mm Solder RA Thru-Hole CONN HDR 60POS R/A NO LATCH 10AU
4660-6301
3m interconnect solutions
60/PG/OP/LL/N FLNG/30AVG .100" Ã .100" Connector For .050" Pitch Cable CONN PLUG 60POS W/OUT FLANGE Headers & Wire Housings 60P OPEN END PLUG
D2560-6V0C-AR-WH
3m interconnect solutions
Conn Shrouded Header HDR 60 POS 2.54mm Solder ST SMD T/R CONN HEADER 60POS SMD VERT 10AU

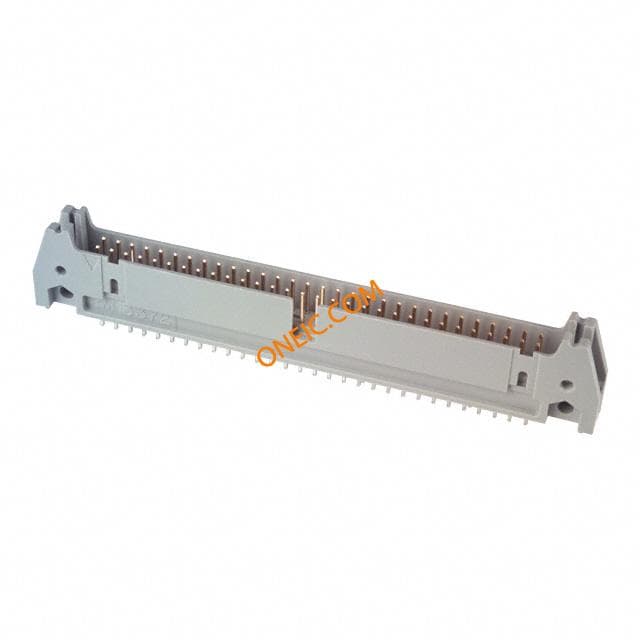

3372-6002
3M Electronic Solutions Division
Headers & Wire Housings 60P STRT SOLDER TAIL .100" Ã .100" Latch/Ejector, Straight and Right Angle PROTECT HEADER STRT 60 CONTACT Conn Ejector Header HDR 60 POS 2.54mm Solder ST Thru-Hole
3372-5203
3M Electronic Solutions Division
Headers & Wire Housings 60/HDR/SL/RA/HT .155/30AVG CONN HEADER 60PS R/A SHORT LA
3372-5302
3M Electronic Solutions Division
Headers & Wire Housings 60P R/A SOLDER TAIL .100" Ã .100" Latch/Ejector, Straight and Right Angle CONN HEADER 60POS R/A LONG LA
3372-5503UG
3M Electronic Solutions Division
Headers & Wire Housings 60/HDR/BX/RA/SNAPIN SL/.155/15AVG/60:40 CONN HEADER 60PS R/A SHORT LA
3372-5002
3M Electronic Solutions Division
Headers & Wire Housings 60P R/A SOLDER TAIL .100" Ã .100" Latch/Ejector, Straight and Right Angle PROTECT HEADER RT/ANG 60 CONTACT Conn Ejector Header HDR 60 POS 2.54mm Solder RA Thru-Hole
3372-6603
3M Electronic Solutions Division
Headers & Wire Housings 60P STRT SOLDER TAIL .100" Ã .100" Latch/Ejector, Straight and Right Angle CONN HEADER 60POS STR LONG LA
4660-7001
3M Electronic Solutions Division
Headers & Wire Housings 60 CON CLSD END W/O MNT FLNG .100" Ã .100" Connector For .050" Pitch Cable CONN PLUG 60POS W/OUT FLANGE
N3372-5202RB
3m interconnect solutions
Conn Ejector Header HDR 60 POS 2.54mm Solder RA Thru-Hole CONN HEADER 60PS R/A SHORT LATCH 3M 3000 Series 2.54mm Pitch 60 Way 2 Row Right Angle PCB Header, Solder Termination, 2A 3M 3000 系列 2.54mm节距 60路 (2排) 直角 PCB 针座, 焊接端接, 2A , 通孔
3372-6602
3m interconnect solutions
Conn Ejector Header HDR 60 POS 2.54mm Solder ST Thru-Hole .100" Ã .100" Latch/Ejector, Straight and Right Angle CONN HEADER 60POS STR LONG LA

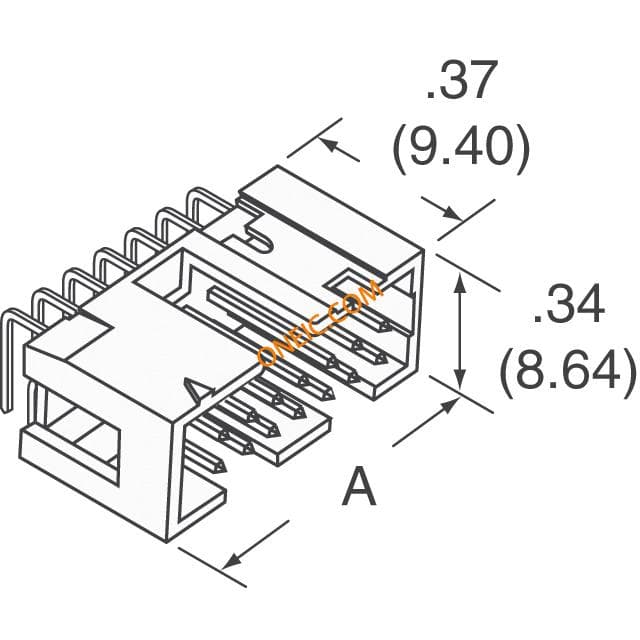

D2560-5002-AR
