89136-0001
| Manufacturer | |
| Description | Conn IDC Connector SKT 36 POS 2.54mm IDT RA Cable Mount .100" Ã .100" Preassembled Wiremount for .050" Pitch Cable CONN SOCKET 36POS IDC DUAL GOLD |
| Category |
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | RoHS Compliance | Yes |
Mechanical
| Color | Gray | Pitch | 2.54 mm |
| Packaging | Bulk | Wire Type | Ribbon Cable |
| Wire Gauge | 26-28 AWG | Row Spacing | 0.100" (2.54mm) |
| Termination | IDT | Contact Type | Female Socket |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Receptacle |
| Contact Finish | Gold Over Nickel | Number of Rows | 2 |
| Cable Termination | IDC | Number of Contacts | 36 |
| Number of Positions | 36 | Contact Finish Thickness | 30µin (0.76µm) |
Product Info
| Type | IDC Connector | Gender | SKT |
| Features | Feed Through | ||
Documents & Media
Similar Parts
4636-6300
3M Electronic Solutions Division
Headers & Wire Housings PLUG 36POS W/FLANGE .100" Ã .100" Connector For .050" Pitch Cable CONN PLUG 36POS W/FLANGE

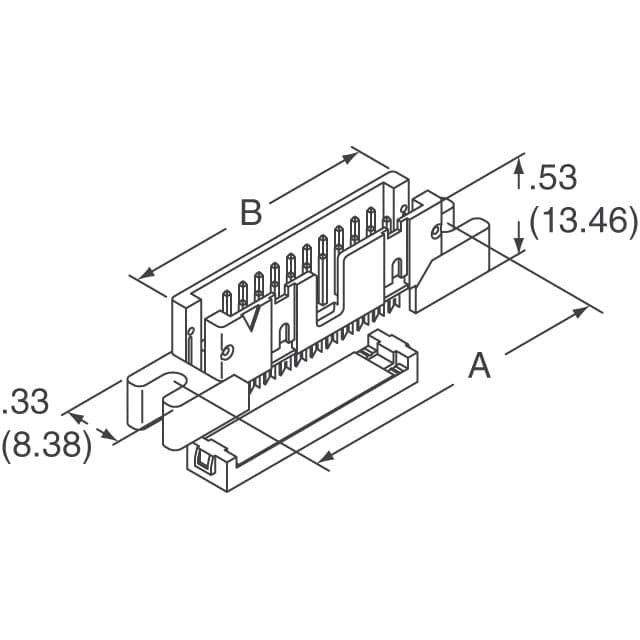

4636-6001
3M Electronic Solutions Division
Headers & Wire Housings 36P OPEN END PLUG IDC SHROUDED HEADER .100" Ã .100" Connector For .050" Pitch Cable PLUG CONNECTOR 36 POS W/O FLANGE

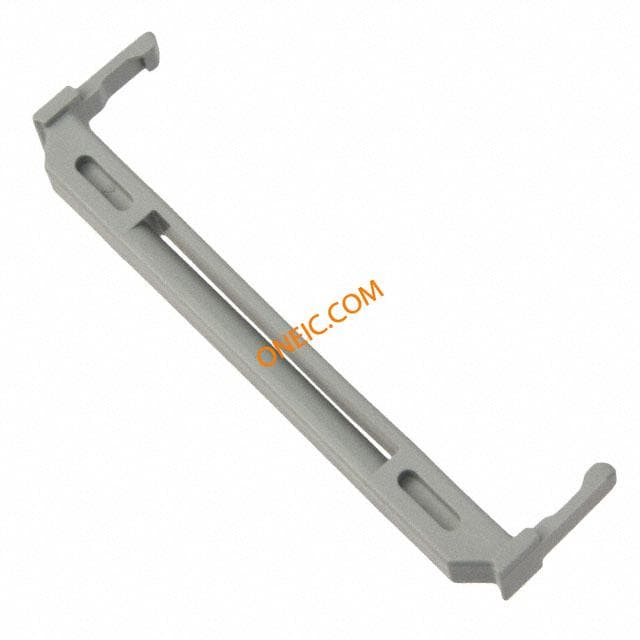

3448-89136
3M Electronic Solutions Division
Headers & Wire Housings STRAIN RELIEF FOR 36P CNCTR .100" Ã .100" Preassembled Wiremount for .050" Pitch Cable STRAIN RELIEF 36 POS IDC SOCKET StrainRelieffor36posIDCRibbonCableSocket,.1"x.1",.05"Pitch
3490-89124
3M Electronic Solutions Division
ピン & ソケットコネクタ SOCKET PULL TAB PREASSEMBLED Pull Tabs, 1000 per roll PULL TAB 24-36POSITION 891SERIES Headers & Wire Housings SOCKET PULL TAB PREASSEMBLED Connector Accessories Pull Tab Polyester Reel PullTab;Wire;24-36;0.05in.;1in.;11.7in.;6.4in.
4636-6000
3M Electronic Solutions Division
ヘッダ & ワイヤハウジング 36P OPEN END PLUG IDC SHROUDED HEADER .100" Ã .100" Connector For .050" Pitch Cable PLUG CONNECTOR 36 POS W/FLANGE
