89124-0101
| Manufacturer | |
| Description | Conn IDC Connector SKT 24 POS 2.54mm IDT RA Cable Mount Headers & Wire Housings 24P IDC SOCKET .100" Ã .100" Preassembled Wiremount for .050" Pitch Cable CONN 24 POS IDC SOCKET GOLD POL IDC SOCKET CONNECTOR;24 CONTACTS WIRE TO BOARD, RECEPTACLE, 24POS, 2.54MM IDCSOCKETCONNECTOR;24CONTACTS |
| Category |
Business
| Part # Aliases | 05400754471 80610706568 | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 500 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85366910 |
| RoHS Compliance | Yes | Material Flammability Rating | UL94V-0 |
Electrical
| Range deg/s | :3M - 891 Series | Current Rating (Max) | 1A |
Mechanical
| Color | Gray | Pitch | 2.54 mm |
| Weight | 5 lbs | Packaging | Bulk |
| Wire Type | Ribbon Cable | Wire Gauge | 26-28 AWG |
| Row Spacing | 0.100" (2.54mm) | Termination | IDT |
| Contact Type | Female Socket | Mounting Type | Free Hanging (In-Line) |
| Angle of Throw | Straight | Connector Type | Receptacle |
| Contact Finish | Gold Over Nickel | Mounting Style | Free Hanging |
| Number of Rows | 2 | Contact Material | PhosphorBronze |
| Primary Material | Wiremount | Cable Termination | IDC |
| Pin Hole Diameter | 0.1" | Termination Style | IDC |
| 1st Contact Gender | Socket (Female) | Number of Contacts | 24 |
| Contact Termination | :IDC / IDT | Dielectric Material | PBT |
| Number of Positions | 24 | Contact Finish Thickness | 30µin (0.76µm) |
| 1st Connector Mounting Type | :Cable | ||
Product Info
| Type | IDC Connector | Gender | SKT |
| Series | 891 | Features | Feed Through, Polarizing Key |
| Product Type | Receptacles / Sockets - Housings | ||
Environmental
| Operating Temperature | -55to+105°C | ||
Documents & Media
Similar Parts
3627-5602UG
3M Electronic Solutions Division
Headers & Wire Housings 24 PIN RT ANG LONG SNAP-IN .062 Headers & Wire Housings 24 PIN RT ANG LONG SNAP-IN .062" CONN HEADER 24POS R/A LONG LATCH
N2524-5002-UB
3M Electronic Solutions Division
Headers & Wire Housings 24 PIN .062 4WALL HDR CONN HEADER 24POS R/A GOLD T/H

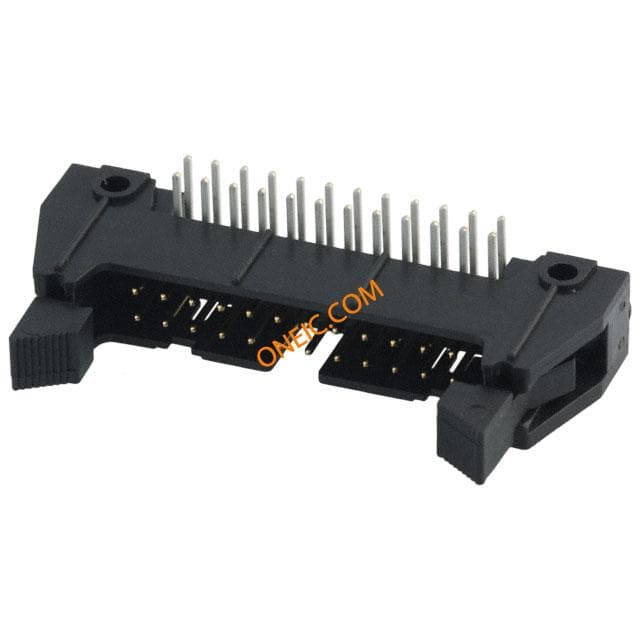

N3627-5202RB
3m interconnect solutions
Conn Ejector Header HDR 24 POS 2.54mm Solder RA Thru-Hole .100" Ã .100" Latch/Ejector, Straight and Right Angle CONN HEADER 24PS R/A SHORT LATCH Headers & Wire Housings 24P R/A SHORT PIN SOLDER TAIL 30u GOLD

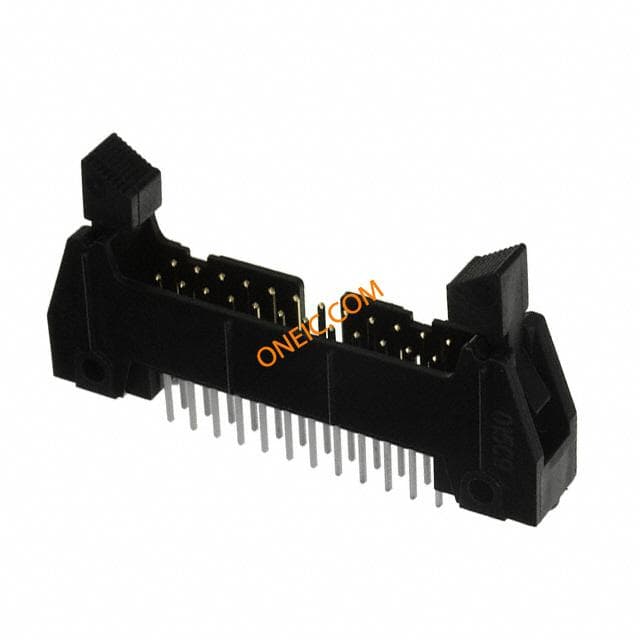

N3627-6202RB
3m interconnect solutions
Conn Ejector Header HDR 24 POS 2.54mm Solder ST Thru-Hole .100" Ã .100" Latch/Ejector, Straight and Right Angle CONN HEADER 24PS STR SHORT LATCH 3M 3000 Series 2.54mm Pitch 24 Way 2 Row Straight PCB Header, Solder Termination, 2A Headers & Wire Housings 24P STRT SHORT PIN SOLDER TAIL 30u GOLD 3M 3000 系列 2.54mm节距 24路 (2排) 直 PCB 针座, 焊接端接, 2A , 通孔
N3627-5203RB
3m interconnect solutions
Conn Ejector Header HDR 24 POS 2.54mm Solder RA Thru-Hole .100" Ã .100" Latch/Ejector, Straight and Right Angle CONN HEADER 24PS R/A SHORT LATCH HEADER, R/A, W/LATCH, 24WAY
3627-5603
3m interconnect solutions
Conn Ejector Header HDR 24 POS 2.54mm Solder RA Thru-Hole CONN HEADER 24POS R/A LONG LATCH

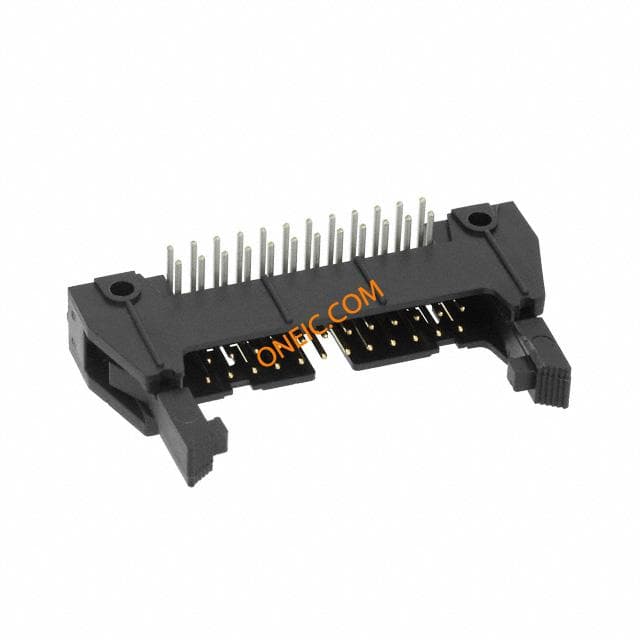

N3627-5302RB
3m interconnect solutions
Conn Ejector Header HDR 24 POS 2.54mm Solder RA Thru-Hole .100" Ã .100" Latch/Ejector, Straight and Right Angle CONN HEADER 24PS R/A LONG LATCH Headers & Wire Housings 24P R/A LONG PIN SOLDER TAIL 30u GOLD
4624-6301
3m interconnect solutions
Conn Ejector Header PL 24 POS 2.54mm IDT RA Cable Mount .100" Ã .100" Connector For .050" Pitch Cable CONN PLUG 24POS W/OUT FLANGE

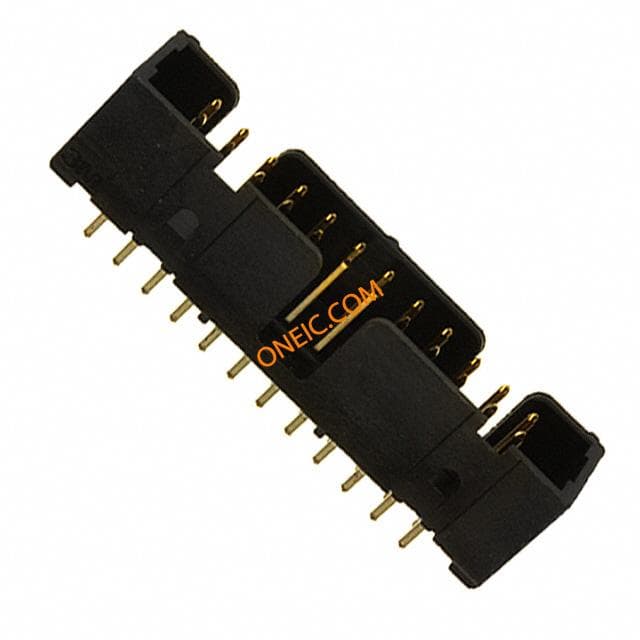

D2524-6002-AR
3m interconnect solutions
Conn Shrouded Header HDR 24 POS 2.54mm Solder ST Thru-Hole CONN HEADER 24POS VERT 10GOLD

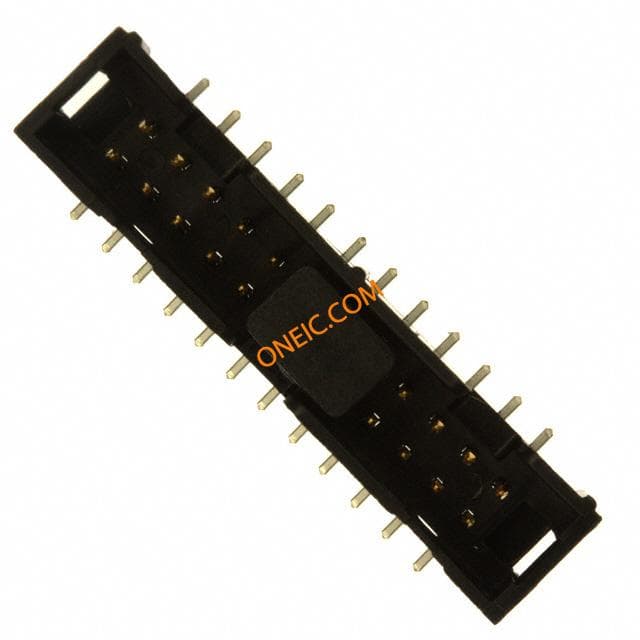

D2524-6V0C-AR-WE
3m interconnect solutions
Conn Shrouded Header HDR 24 POS 2.54mm Solder ST SMD T/R CONN HEADER 24POS SMD VERT 10AU Headers & Wire Housings 24P 4-WALL HEADER VERTICAL SMT 10U AU
N3627-D202RB
3m interconnect solutions
Conn Ejector Header HDR 48 POS 2.54mm Solder RA Thru-Hole .100" Ã .100" Three-Wall Condo Header, Right Angle CONN HEADER STKD R/A SHORT LA

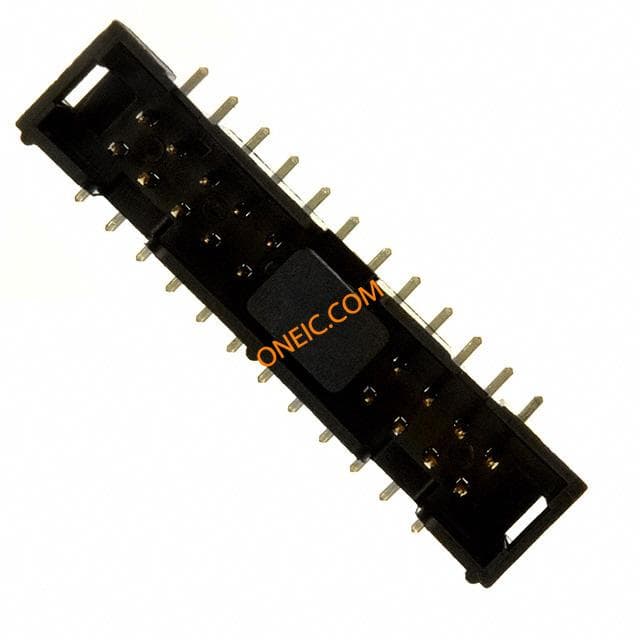

N2524-6V0C-RB-WE
3M Electronic Solutions Division
ヘッダ & ワイヤハウジング MOLDED PICK CAP 24 PIN 30u GOLD CONN HEADER 24POS SMT VERT 30AU 3M 2500 Series 2.54mm Pitch 24 Way 2 Row Straight PCB Header, Solder Termination, 2A Headers & Wire Housings MOLDED PICK CAP 24 PIN 30u GOLD 2500SeriesLowProfileSMT4wallHeader,Straight,.100X.10024position 3M 2500 系列 2.54mm节距 24路 (2排) 直 PCB 针座, 焊接端接, 2A , 表面安装
3627-5003
3M Electronic Solutions Division
Headers & Wire Housings 24 PIN RT ANG NO LTCH/EJC .094-.125 .100" Ã .100" Latch/Ejector, Straight and Right Angle CONN HEADER 24POS R/A NO LATCH
3627-6302
3M Electronic Solutions Division
Headers & Wire Housings 24P STRT SOLDER TAIL .100" Ã .100" Latch/Ejector, Straight and Right Angle CONN HEADER 24POS STR LONG LATCH Conn Ejector Header HDR 24 POS 2.54mm Solder ST Thru-Hole

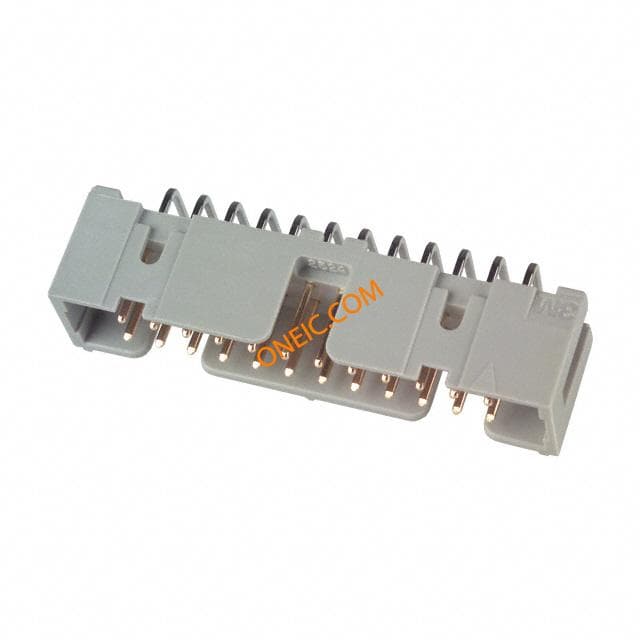

2524-5002UB
