89114-0103

Manufacturer	3M Company
Description	14/SKT/DUAL RECESS CVR/PRASB/CB/SR/30AVG .100" Ã .100" Preassembled Wiremount for .050" Pitch Cable CONN SOCKET 14 POS IDC W/STR REL Headers & Wire Housings 14P IDC SOCKET WIRE TO BOARD, RECEPTACLE, 14POS, 2ROW Conn;Rect;Socket;IDCRibbonCable;0.100in;14Cnt;891Ser.
Category	Hardware and Thermal SolutionsRack AccessoriesRack Accessories

对参数有疑问？问 AI 助手

Business

Part # Aliases	05400754459 80610706444	Product Category	Headers & Wire Housings
Standard Package	500	Factory Pack Quantity	500

Compliance

RoHS

RoHS Compliant

Tariff No

85366930

Electrical

Range deg/s

:3M - 891 Series

Current Rating (Max)

1 A

Mechanical

Color	Gray	Pitch	0.100" (2.54mm)
Weight	5 lbs	Packaging	Bulk
Wire Type	Ribbon Cable	Wire Gauge	26-28 AWG
Row Spacing	0.100" (2.54mm)	Contact Type	Female Socket
Mounting Type	Free Hanging (In-Line)	Connector Type	Receptacle
Contact Finish	Gold	Mounting Style	Cable
Number of Rows	2	Contact Material	Phosphor Bronze
Cable Termination	IDC	Termination Style	IDC
1st Contact Gender	Socket (Female)	Number of Contacts	14
Contact Termination	:IDC / IDT	Number of Positions	14
Contact Finish Thickness	30µin (0.76µm)

Product Info

Type	Ribbon Cable	Gender	:Receptacle
Series	891	Features	Feed Through; Polarizing Key, Strain Relief
Product Type	Receptacles / Sockets - Housings

Documents & Media

Similar Parts

3314-2002

3M Electronic Solutions Division

Headers & Wire Housings 3 WALL HDR 14PIN STR SOLDRTL F.062BRD .100" Ã .100" Three-Wall Latch/Ejector, Straight and Right Angle CONN HEADER 14POS STR NO LATCH

$9.1800

Details

3314-1003

3m interconnect solutions

Conn Ejector Header HDR 14 POS 2.54mm Solder RA Thru-Hole CONN HEADER 14POS R/A NO LATCH

$12.6004

Details

N3314-6502RB

3m interconnect solutions

Conn Ejector Header HDR 14 POS 2.54mm Solder ST Thru-Hole CONN HEADER 14PS STR SHORT LATCH Headers & Wire Housings 14P STRT HEADER SHRT SNAPIN LTC EJCT

$9.0440

Details

N3314-600T02RB

3m interconnect solutions

Conn Ejector Header HDR 14 POS 2.54mm Press Fit ST Thru-Hole Headers & Wire Housings 14POS STR NO LATCH HEADER CONN HEADER 14POS STR NO LATCH

$27.4040

Details

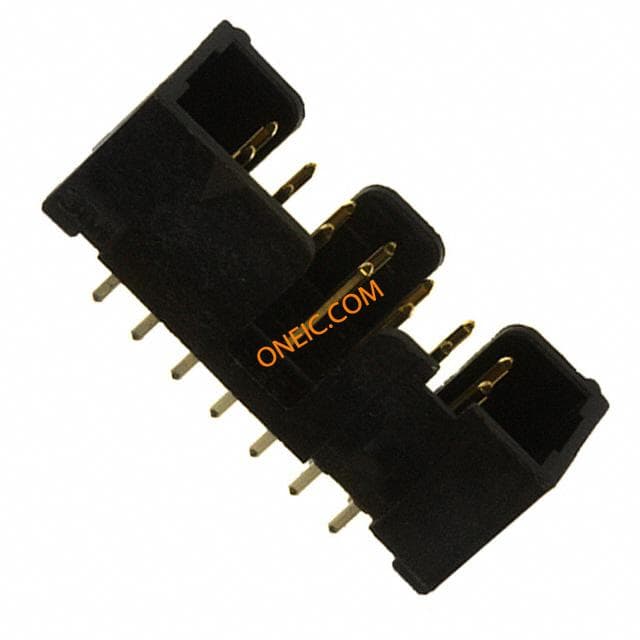

D2514-6002-AR
