8560-4500PL

Manufacturer	3M Company
Description	Conn Socket Strip SKT 60 POS 2.54mm Solder ST Thru-Hole .100" Ã .100" Centerbump Polarization with Straight Solder Tails, 10 - 64 contacts CONN SOCKET PCB VERT 60POS .1" 3M 2.54mm 60 Way 2 Row Straight PCB Socket Through Hole Socket Strip Headers & Wire Housings 60P STRT PLRZD SKT SOCKET, PCB, 60WAY 60WSTRBOARDMOUNTSOCKET 3M 8500 系列 2行 60路直 2.54mm节距通孔印刷电路板插座, 插座板
Category	Connector SolutionsBoard to Board ConnectorsBoard-to-Board Connectors

对参数有疑问？问 AI 助手

Business

Part # Aliases	54745226292 JE150318804	Product Category	Headers & Wire Housings
Standard Package	Bulk	Factory Pack Quantity	100

Compliance

RoHS	Lead free / RoHS Compliant	Tariff No	85369010
Material Flammability Rating	:UL94V-0

Electrical

Voltage Rating	1 kV	Number of Poles	:60
Voltage - Working	:350V	Current Rating (Max)	1A
Insulation Resistance	:1000Mohm

Mechanical

Color	Gray	Pitch	2.54 mm
Weight	0.008	Material	:Glass Filled Polyester
Packaging	Bulk	Row Spacing	0.100" (2.54mm)
Termination	Solder	Contact Type	Female Socket
Lead Spacing	:2.54mm	Mounting Type	Through Hole
Connector Type	Receptacle	Contact Finish	Gold Over Nickel
Number of Rows	2	Contact Material	Copper Alloy
Housing Material	Polyester	Termination Style	Through Hole
1st Contact Gender	Socket (Female)	Color - Connectors	:Grey
Number of Contacts	60	Contact Termination	:Through Hole Vertical
Number of Positions	60	Contact Finish Thickness	12µin (0.30µm)

Product Info

Type	Socket Strip	Gender	SKT
Series	8500	Features	Polarizing Key
Polarity	:Bump	CAD Drawing	3D CAD Model
Product Type	Receptacles / Sockets - PCB	Number of Positions Loaded	All

Environmental

Mating Cycles

:200

Operating Temperature

:105°C

Documents & Media

Online Document

mediawebserver.dyn?6666660Zjcf6lVs6EVs666UCJCOrrrrQ-

PDF Document

74893.pdf

Similar Parts

N3372-6502

3m interconnect solutions

Conn Ejector Header HDR 60 POS 2.54mm Solder ST Thru-Hole CONN HEADER 60PS STR SHORT LA

Details

2560-60K2UB

3m interconnect solutions

Conn Shrouded Header HDR 60 POS 2.54mm Solder ST Thru-Hole CONN HEADER 60POS STR GOLD T/

Details

D2560-6002-AR

3m interconnect solutions

Conn Shrouded Header HDR 60 POS 2.54mm Solder ST Thru-Hole CONN HEADER 60POS VERT 10GOLD Headers & Wire Housings 60P 4-WALL HEADER STRAIGHT 10U AU

$22.0728

Details

D3372-5002-AR

3m interconnect solutions

Conn Ejector Header HDR 60 POS 2.54mm Solder RA Thru-Hole CONN HDR 60POS R/A NO LATCH 10AU

$16.3880

Details

4660-6301

3m interconnect solutions

60/PG/OP/LL/N FLNG/30AVG .100" Ã .100" Connector For .050" Pitch Cable CONN PLUG 60POS W/OUT FLANGE Headers & Wire Housings 60P OPEN END PLUG

$47.8040

Details

D2560-6V0C-AR-WH

3m interconnect solutions

Conn Shrouded Header HDR 60 POS 2.54mm Solder ST SMD T/R CONN HEADER 60POS SMD VERT 10AU

$9.2480

Details

N2560-6V0C-RB-WH

3m interconnect solutions

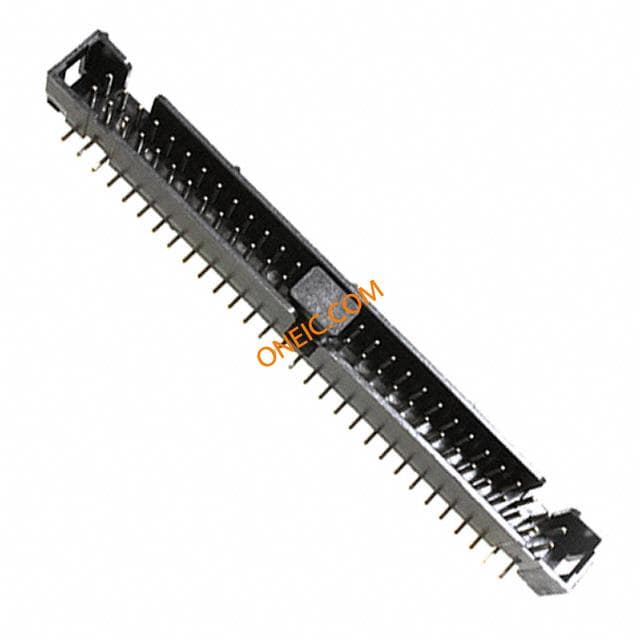

Conn Shrouded Header HDR 60 POS 2.54mm Solder ST SMD T/R CONN HEADER 60POS SMT VERT 30AU 3M 2500 Series 2.54mm Pitch 60 Way 2 Row Straight PCB Header, Solder Termination, 2A Pin header SMD, DIN 41651 60P, N2560-6V0C-RB-WH, 3M 3M 2500 系列 2.54mm节距 60路 (2排) 直 PCB 针座, 焊接端接, 2A , 表面安装
