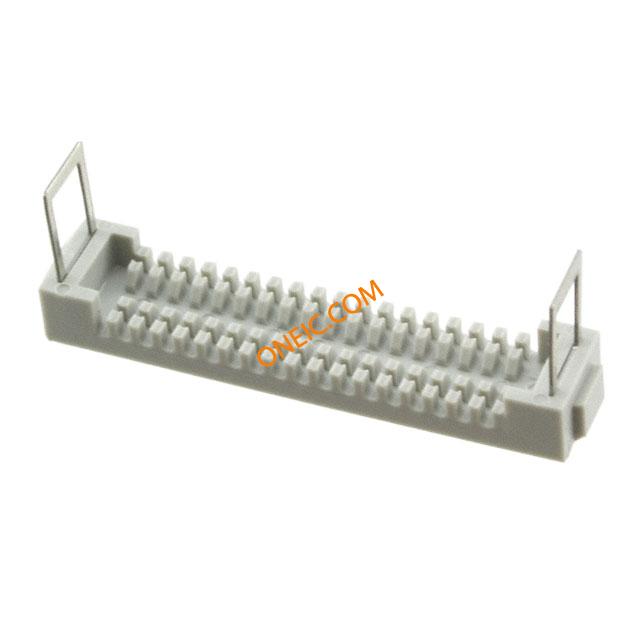

82036-6000RB
| Manufacturer | |
| Description | Conn IDC Connector SKT 36 POS 1.27mm IDT RA Cable Mount CONN SOCKET 36POS W/O STRAIN Headers & Wire Housings 36P IDC SOCKET |
| Category |
Business
| Part # Aliases | 05111165354 80400029502 | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Voltage Rating | 500 V | Switch Function | Unlatched |
| Current Rating (Max) | 500 mA | ||
Mechanical
| Color | Gray | Pitch | 1.27 mm |
| Packaging | Bulk | Wire Type | Ribbon Cable |
| Wire Gauge | 30 AWG | Row Spacing | 0.100" (2.54mm) |
| Termination | IDT | Contact Type | Female Socket |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Receptacle |
| Contact Finish | Gold Over Nickel | Mounting Style | Free Hanging |
| Number of Rows | 2 | Contact Material | Copper Alloy |
| Housing Material | Polyester | Cable Termination | IDC |
| 1st Contact Gender | Socket (Female) | Number of Contacts | 36 |
| Number of Positions | 36 | Contact Finish Thickness | 30µin (0.76µm) |
Product Info
| Type | IDC Connector | Gender | SKT |
| Series | 820 | Features | Feed Through |
| Product Type | Receptacles / Sockets - Housings | ||
Documents & Media
Similar Parts
81036-600C01
3m interconnect solutions
Conn Ejector Header HDR 36 POS 1.27mm Solder ST SMD Tray CONN HEADER 36POS STR SMD Headers & Wire Housings 36/MHDR/SMT/NO SC R MNT/NOPST/30/90:10
81036-660C04-RB
3m interconnect solutions
Conn Ejector Header HDR 36 POS 1.27mm Solder ST SMD Tray Headers & Wire Housings 36 CNTCT LONG EJECT PRESS FIT MNT POS1 CONN HEADER 36POS STR LONG SMD
81036-600C04
3m interconnect solutions
Conn Ejector Header HDR 36 POS 1.27mm Solder ST SMD Tray CONN HEADER 36POS STR SMD Headers & Wire Housings 36P STRT SMT TRIPLZD 4-WALL
81036-650C01
3m interconnect solutions
Conn Ejector Header HDR 36 POS 1.27mm Solder ST SMD Tray CONN HEADER 36POS STR SHORT SMD Headers & Wire Housings 36/MHDR/SMT/STR/SEL INS/NO HOLES
81036-560303-RB
3m interconnect solutions
Conn Ejector Header HDR 36 POS 1.27mm Solder RA Thru-Hole .050" Ã .100" Latch/Ejector, PTH & SMT Straight, PTH Right Angle CONN HEADER 36POS R/A LONG T/H Headers & Wire Housings 36 CNTCT LONG EJECT SOLDER TAIL .094
81036-500203
3M Electronic Solutions Division
Headers & Wire Housings 36POS R/ANGLE BOARDMT/TRIPOL HDR .050" Ã .100" Latch/Ejector, PTH & SMT Straight, PTH Right Angle CONN HEADER 36POS R/A THRU HOLE

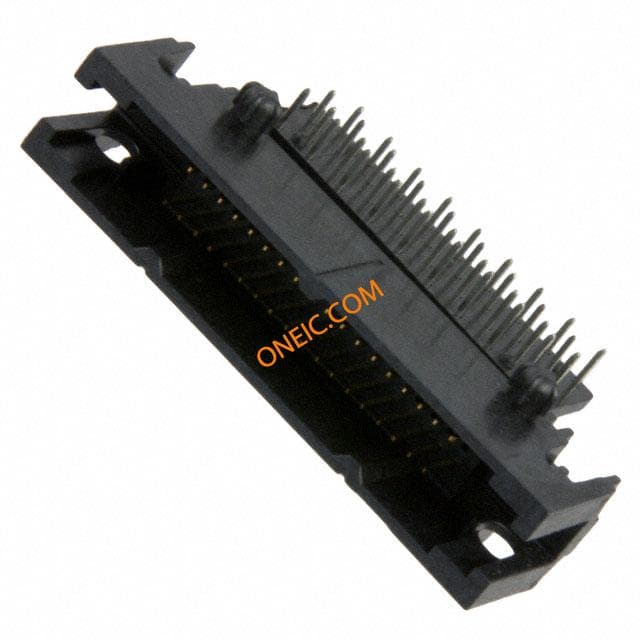

81036-M00203-RB
