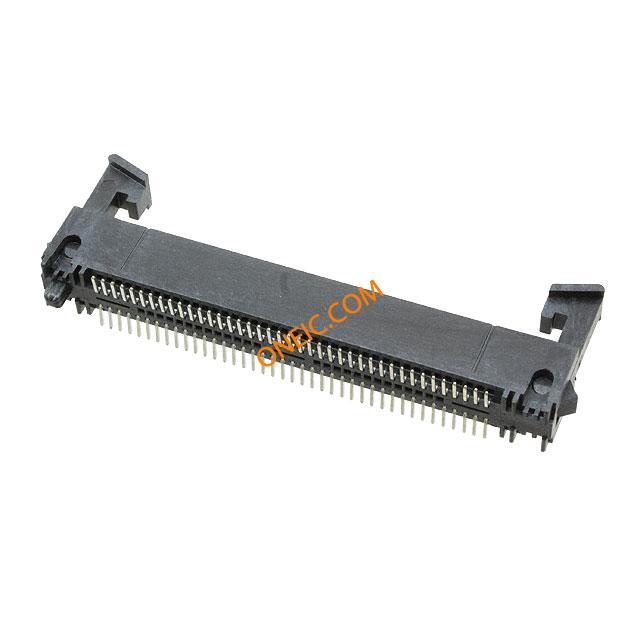

81080-660C04-RB
| Manufacturer | |
| Description | Conn Ejector Header HDR 80 POS 1.27mm Solder ST SMD Tray .050" Ã .100" Latch/Ejector, PTH & SMT Straight, PTH Right Angle CONN HEADER 80POS STR LONG SM Headers & Wire Housings 80POS 1.27MMSOLDER HEADER |
| Category |
Business
| Part # Aliases | 05111165900 80000901969 | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Current Rating (Max) | 500 mA | ||
Mechanical
| Color | Black | Pitch | 1.27 mm |
| Packaging | Tray | Row Spacing | 0.100" (2.54mm) |
| Termination | Solder | Contact Type | Male Pin |
| Mounting Type | Surface Mount | Connector Type | Header, Shrouded |
| Contact Finish | Gold Over Nickel | Fastening Type | Latch, Long/Eject Hooks |
| Number of Rows | 2 | Contact Material | Copper Alloy |
| Termination Style | Through Hole | Number of Contacts | 80 |
| Number of Positions | 80 | Contact Length - Mating | 0.140" (3.56mm) |
| Contact Finish Thickness | 30µin (0.76µm) | ||
Product Info
| Type | Ejector Header | Gender | HDR |
| Series | 810 | Features | Board Lock |
| Product Type | Headers | Number of Positions Loaded | All |
