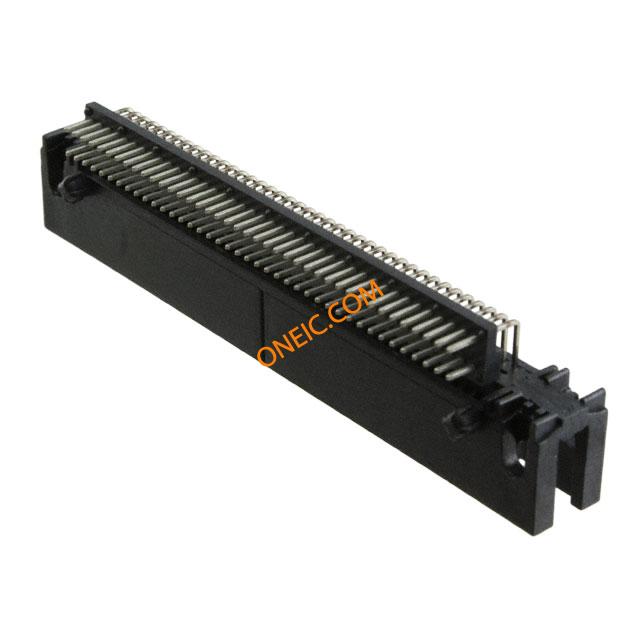

81080-500203-RB
| Manufacturer | |
| Description | Conn Ejector Header HDR 80 POS 1.27mm Solder RA Thru-Hole .050" Ã .100" Latch/Ejector, PTH & SMT Straight, PTH Right Angle CONN HEADER 80POS R/A THRU HO 3M 810 Series 1.27mm Pitch 80 Way 2 Row Right Angle PCB Header, Solder Termination, 0.5A Headers & Wire Housings 80POS PTH R ANGLE 2 ROW OF SOLDER TAIL 3M 810 系列 1.27mm节距 80路 (2排) 直角 PCB 针座, 焊接端接, 500mA , 通孔 |
| Category |
Business
| Part # Aliases | 05111165894 80000901902 | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | RoHS Compliance | Yes |
Electrical
| Current Rating (Max) | 0.5A | ||
Mechanical
| Color | Black | Pitch | 1.27 mm |
| Packaging | Bulk | Orientation | 直角 |
| Row Spacing | 0.100" (2.54mm) | Termination | Solder |
| Contact Type | Male Pin | Mounting Type | Through Hole, Right Angle |
| Connector Type | Header, Shrouded | Contact Finish | Gold Over Nickel |
| Number of Rows | 2 | Contact Material | Copper Alloy |
| Termination Rows | 焊接 | Termination Style | Through Hole |
| Number of Contacts | 80 | Number of Positions | 80 |
| Contact Length - Mating | 0.140" (3.56mm) | Contact Finish Thickness | 30µin (0.76µm) |
Product Info
| Type | Ejector Header | Gender | HDR |
| Series | 810 | Coverage | 覆盖 |
| Features | Board Lock | Product Type | Headers |
| Number of Positions Loaded | All | ||
