81050-600201
| Manufacturer | |
| Description | Conn Ejector Header HDR 50 POS 1.27mm Solder ST Thru-Hole .050" Ã .100" Latch/Ejector, PTH & SMT Straight, PTH Right Angle CONN HEADER 50POS PCB VERT MNT Headers & Wire Housings 50 CON STR .062 |
| Category |
Business
| Part # Aliases | 05111153626 80400014470 | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 100 |
Compliance
| RoHS | Contains lead / RoHS non-compliant | ||
Electrical
| Current Rating (Max) | 500 mA | ||
Mechanical
| Color | Natural | Pitch | 1.27 mm |
| Packaging | Bulk | Row Spacing | 0.100" (2.54mm) |
| Termination | Solder | Contact Type | Male Pin |
| Mounting Type | Through Hole | Connector Type | Header, Shrouded |
| Contact Finish | Gold Over Nickel | Number of Rows | 2 |
| Contact Material | Copper Alloy | Termination Style | Through Hole |
| Number of Contacts | 50 | Number of Positions | 50 |
| Contact Length - Mating | 0.140" (3.56mm) | Contact Finish Thickness | 30µin (0.76µm) |
Product Info
| Type | Ejector Header | Gender | HDR |
| Series | 810 | Product Type | Headers |
| Number of Positions Loaded | All | ||
Documents & Media
Similar Parts
3505-28
3M Electronic Solutions Division
Headers & Wire Housings LONG LATCH/EJECTOR .050" Ã .100" Latch/Ejector, PTH & SMT Straight, PTH Right Angle CONN LONG EJECTOR LATCH FOR MHDR
82050-6006RB
3m interconnect solutions
Conn IDC Connector SKT 50 POS 1.27mm IDT RA Cable Mount CONN SOCKET 50POS W/STRAIN REF MINI IDC CABLE SKT 50W SOCKET, IDC, W/STRAIN, 50WAY MINIIDCCABLESKT50W 3M 2行 50路 1.27mm节距 直角 电缆安装 母 IDC 连接器
3505-28B
3m interconnect solutions
Connector Accessories Long Ejector Latch Liquid Cristal Polymer Black .050" Ã .100" Latch/Ejector, PTH & SMT Straight, PTH Right Angle CONN LONG EJECTOR LATCH FOR MHDR Long ejector latch for connectors Headers & Wire Housings LONG EJECTOR LATCH 1PIECE BLACK LATCH, LONG MINIIDCHEADEJECTORS 3M 弹射闩锁, 使用于810 系列
82050-6000
3M Electronic Solutions Division
ヘッダ & ワイヤハウジング 50P TRIPLRZD SOCKET NO STRAIN RELIEF .050" Ã .100" Tripolarized Wiremount for .025" Pitch Cable CONN SOCKET 50POS W/O STRAIN
82050-6006
3M Electronic Solutions Division
Headers & Wire Housings 50P TRIPLRZD SOCKET WITH STRAIN RELIEF .050" Ã .100" Tripolarized Wiremount for .025" Pitch Cable CONN RECEPT 50-POS W/STRAIN Socket,WireMount;Tripolarized;50;CopperAlloy;0.5A;0.025in.;30AWG
3505-29B
3M Electronic Solutions Division
ヘッダ & ワイヤハウジング SHORT EJECTOR LATCH .050" Ã .100" Latch/Ejector, PTH & SMT Straight, PTH Right Angle CONN SHORT EJECT LATCH FOR MHDR Short ejector latch for male connector LATCH, SHORT SHORTEJECTORLATCH 3M 弹射闩锁, 使用于810 系列
3505-29
3M Electronic Solutions Division
ヘッダ & ワイヤハウジング SHORT LATCH/EJECTOR .050" Ã .100" Latch/Ejector, PTH & SMT Straight, PTH Right Angle CONN SHORT EJECT LATCH FOR MHDR

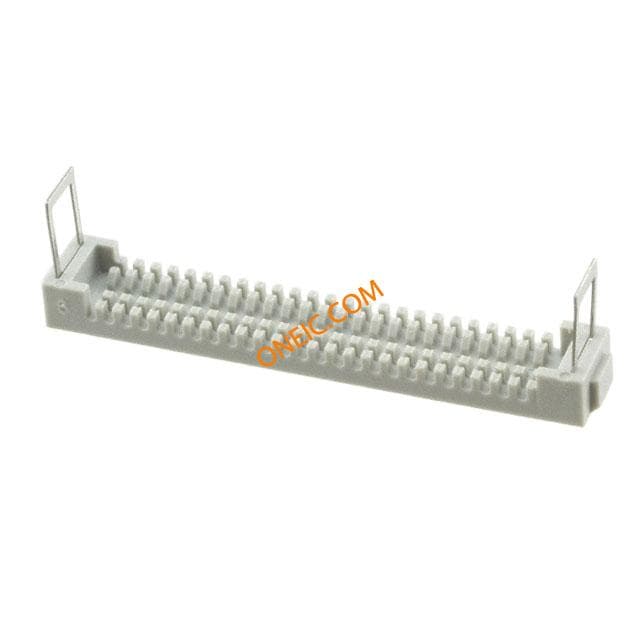

82050-6000-RB
