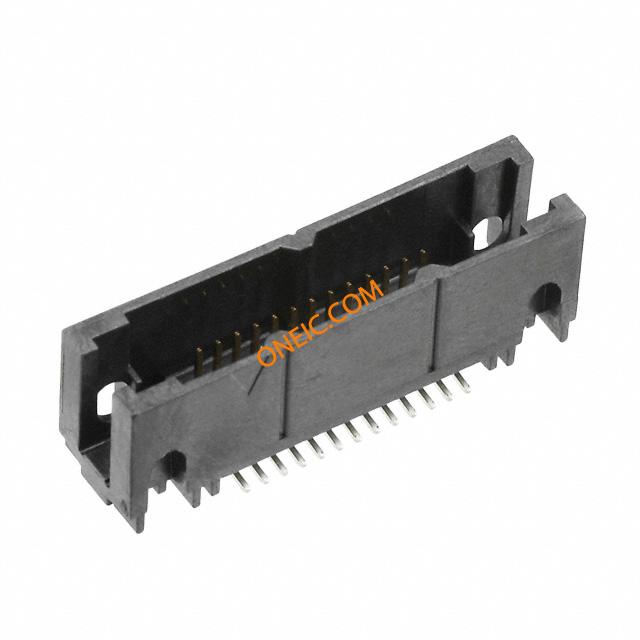

81026-600C01-RB
| Manufacturer | |
| Description | Conn Ejector Header HDR 26 POS 1.27mm Solder ST SMD Tray .050" Ã .100" Latch/Ejector, PTH & SMT Straight, PTH Right Angle CONN HEADER 26POS STR SMD |
| Category |
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | RoHS Compliance | Yes |
Mechanical
| Color | Black | Pitch | 1.27 mm |
| Packaging | Tray | Row Spacing | 0.100" (2.54mm) |
| Termination | Solder | Contact Type | Male Pin |
| Mounting Type | Surface Mount | Connector Type | Header, Shrouded |
| Contact Finish | Gold Over Nickel | Number of Rows | 2 |
| Number of Contacts | 26 | Number of Positions | 26 |
| Contact Length - Mating | 0.140" (3.56mm) | Contact Finish Thickness | 30µin (0.76µm) |
Product Info
| Type | Ejector Header | Gender | HDR |
| Number of Positions Loaded | All | ||
Documents & Media
Similar Parts
3505-28
3M Electronic Solutions Division
Headers & Wire Housings LONG LATCH/EJECTOR .050" Ã .100" Latch/Ejector, PTH & SMT Straight, PTH Right Angle CONN LONG EJECTOR LATCH FOR MHDR

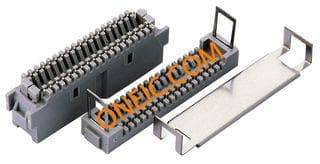

82026-6006RB
3m interconnect solutions
Conn IDC Connector SKT 26 POS 1.27mm IDT RA Cable Mount .050" Ã .100" Tripolarized Wiremount for .025" Pitch Cable CONN SOCKET 26POS W/STRAIN REF
3505-28B
3m interconnect solutions
Connector Accessories Long Ejector Latch Liquid Cristal Polymer Black .050" Ã .100" Latch/Ejector, PTH & SMT Straight, PTH Right Angle CONN LONG EJECTOR LATCH FOR MHDR Long ejector latch for connectors Headers & Wire Housings LONG EJECTOR LATCH 1PIECE BLACK LATCH, LONG MINIIDCHEADEJECTORS 3M 弹射闩锁, 使用于810 系列
82026-6000
3M Electronic Solutions Division
ヘッダ & ワイヤハウジング 26P TRIPLRZD SOCKET NO STRAIN RELIEF .050" Ã .100" Tripolarized Wiremount for .025" Pitch Cable CONN SOCKET 26 POS IDC .025 Headers & Wire Housings 26P TRIPLRZD SOCKET NO STRAIN RELIEF
3505-29B
3M Electronic Solutions Division
ヘッダ & ワイヤハウジング SHORT EJECTOR LATCH .050" Ã .100" Latch/Ejector, PTH & SMT Straight, PTH Right Angle CONN SHORT EJECT LATCH FOR MHDR Short ejector latch for male connector LATCH, SHORT SHORTEJECTORLATCH 3M 弹射闩锁, 使用于810 系列
3505-29
3M Electronic Solutions Division
ヘッダ & ワイヤハウジング SHORT LATCH/EJECTOR .050" Ã .100" Latch/Ejector, PTH & SMT Straight, PTH Right Angle CONN SHORT EJECT LATCH FOR MHDR
82026-6000-RB
3M Electronic Solutions Division
Headers & Wire Housings 26P TRIPLRZD SOCKET NO STRAIN RELIEF .050" Ã .100" Tripolarized Wiremount for .025" Pitch Cable CONN SOCKET 26POS W/O STRAIN
82026-6006
3m interconnect solutions
Conn IDC Connector SKT 26 POS 1.27mm IDT RA Cable Mount .050" Ã .100" Tripolarized Wiremount for .025" Pitch Cable CONN SOCKET 26POS W/STRAIN REF Socket; Wire Mount; Tripolarized; 26; Copper Alloy; 0.5 A; 0.025 in.; 30 AWG Headers & Wire Housings 26P TRIPLRZD SOCKET WITH STRAIN RELIEF Socket,WireMount;Tripolarized;26;CopperAlloy;0.5A;0.025in.;30AWG
