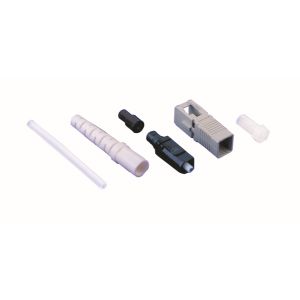

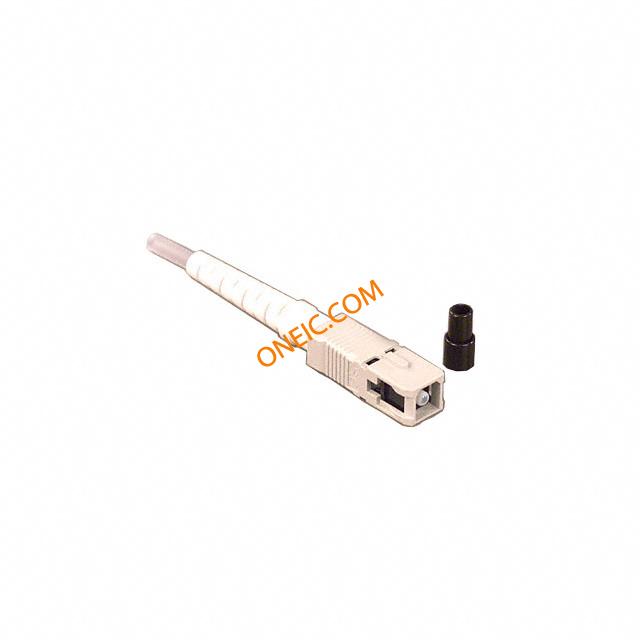

6300-W
| Manufacturer | |
| Description | 6300-W CONNECTOR SC MM HOT MELT WH BOOT Fiber Optic Connectors 125 UM SC HOT MELT CONN FIBER SC PLUG SMPLX 125UM SC Simplex Connector Ceramic Multimode 3M(TM) Hot Melt Connector 6300-W |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | SC Connectors | Part # Aliases | 05400791725 80611127574 |
| Product Category | Fiber Optic Connectors | Standard Package | 60 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Reflection | 25dB | Attenuation - Typ | 0.2dB |
Mechanical
| Color | White | Weight | 1.100 lbs |
| Boot Color | White | Body Material | Thermoplastic Elastomer |
| Housing Color | Beige | Mounting Type | Straight |
| Cable Diameter | 0.9mm | Connector Type | SC |
| Fastening Type | Bayonet Lock | Connector Style | SC |
| Ferrule Material | Zirconia | Termination Style | Hot Melt |
| Fiber Core Diameter | 125 um | Fiber Cladding Diameter | 125µm |
Product Info
| Mode | Multimode | Type | Simplex |
| Features | Rectangular push-pull coupling mechanism for easy insertion and high repeatability. | Fiber Type | Multimode |
| Port Style | Simplex | UNSPSC Code | 34131202 |
| Accessory Type | Boot | Adapter Series | Hot Melt |
| Simplex/Duplex | Simplex | Installation Type | Hot Melt |
Environmental
| Mating Cycles | 500 | Operating Temperature | - 10 C to + 60 C |
