5160-B7A2PL

Manufacturer	3M Company
Description	=60/2R/BM SKT/.100/RA/FLG/.112/ROHS SOCKET BOARD 60PIN 2,54MM .100" Ã .100" Centerbump Polarization with Right Angle Solder Tails CONN SOCKET 60POS R/A DL .100"
Category	Connector SolutionsBoard to Board ConnectorsBoard-to-Board Connectors

对参数有疑问？问 AI 助手

Business

MOQ	100	Unit Pack	100
Standard Package	100

Compliance

RoHS	Lead free / RoHS Compliant	Leadfree Defin	RoHS-conform
Approval Agency	UL E68080

Electrical

Voltage Rating

1000V

Current Rating (Max)

Mechanical

Color	Gray	Pitch	0.100" (2.54mm)
Packaging	Bulk	Cable Exit	NO
Orientation	RIGHTANGLE	Row Spacing	0.100" (2.54mm)
Termination	Solder	Contact Type	MALE
Pitch - Post	2.54mm	Mounting Type	Through Hole, Right Angle
Connector Type	Receptacle	Contact Finish	Gold
Number of Rows	2	Number of Contacts	60
Number of Positions	60	Contact Finish Thickness	30µin (0.76µm)
Contact Material - Plating	FLASHGOLD

Product Info

Series	5100	Features	Polarizing Key
Matchcode	5160B7A2PL	Standard Leadtime	14 weeks
Other Specifications	NO	Number of Positions Loaded	All

Environmental

Operating Temperature

-55 TO 105°C

Similar Parts

2560-5002UG

3M Electronic Solutions Division

Headers & Wire Housings 60P R/A SOLDER TAILS CONN HEADER 60POS R/A GOLD T/

Details

4660-6300

3M Electronic Solutions Division

Headers & Wire Housings 60 CONTACTS,OPEN END WIREMOUNT PLUG CONN PLUG 60POS OPEN LONG LAT

$79.5396

Details

N3372-5002RB

3m interconnect solutions

Conn Ejector Header HDR 60 POS 2.54mm Solder RA Thru-Hole PROTECT HEADER RT ANG 60 CONTACT Header; 4-Wall; Copper Alloy; 200 u in. 60/40 Tin/Lead; 1; Beige; 0.68 in.; 60 Headers & Wire Housings BOARDMT HITEMP NO LATCH/EJECTOR ConnEjectorHeaderHDR60POS2.54mmSolderRAThru-Hole

$24.4800

Details

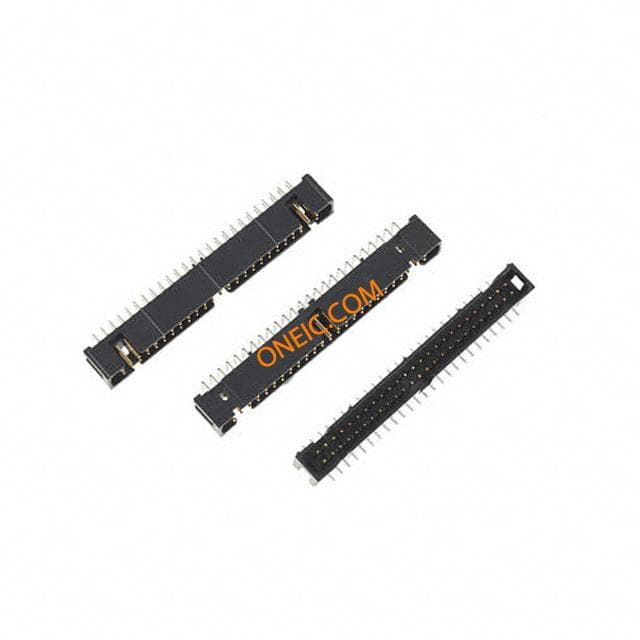

2560-60K2UB
