5110-B7A2PL

Manufacturer	3M Company
Description	10/2R/BM SKT/.100/RA/FLG/.112/ROHS 10/2R/BM SKT/.100 Headers & Wire Housings 10/2R/BM SKT/.100/ RA/FLG/.112/ROHS Conn Socket Strip SKT 10 POS 2.54mm Solder RA Thru-Hole SocketIDCSMTMDR102Series10way
Category	Connector SolutionsBoard to Board ConnectorsBoard-to-Board Connectors

对参数有疑问？问 AI 助手

Business

Part # Aliases

54862310928 JE150395596

Standard Package

100

Compliance

RoHS

RoHS Compliant Part

Electrical

Current Rating (Max)

1 A

Mechanical

Color	Gray	Depth	14.6 mm
Pitch	0.100" (2.54mm)	Height	8.9 mm
Packaging	Bulk	Row Spacing	0.100" (2.54mm)
Termination	Solder	Contact Type	Female Socket
Housing Color	Gray	Mounting Type	Through Hole, Right Angle
Connector Type	Receptacle	Contact Finish	Gold
Mounting Style	Through Hole	Number of Rows	2
Contact Material	Copper Alloy	Housing Material	Polyester
Length - Overall	25.4 mm	Termination Style	Through Hole
1st Contact Gender	Socket (Female)	Number of Contacts	10
Number of Positions	10	Contact Finish Thickness	30µin (0.76µm)

Product Info

Type	Socket Strip	Gender	SKT
Series	5100	Features	Polarizing Key
Product Type	Receptacles / Sockets - PCB	Number of Positions Loaded	All

Environmental

Operating Temperature

- 55 C to + 105 C

Documents & Media

PDF Document

5110-B7A2PL-3M-datasheet-5317801.pdf

Similar Parts

4610-7200

3m interconnect solutions

Conn Ejector Header PL 10 POS 2.54mm IDT RA Cable Mount .100" Ã .100" Connector For .050" Pitch Cable CONN PLUG 10POS W/FLANGE

$14.2120

Details

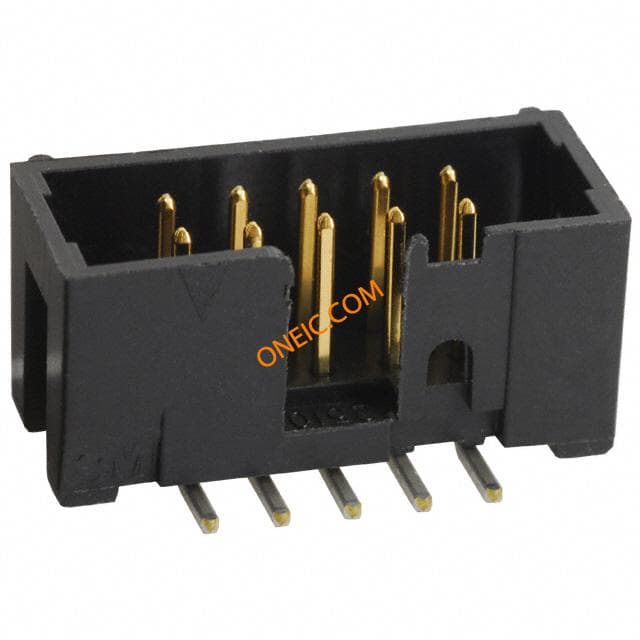

N2510-6V0C-RB-WD

3m interconnect solutions

Conn Shrouded Header HDR 10 POS 2.54mm Solder ST SMD T/R CONN HEADER 10POS SMT VERT 30AU 3M 2500 Series 2.54mm Pitch 10 Way 2 Row Straight PCB Header, Solder Termination, 2A Headers & Wire Housings MOLDED PICK CAP 10 PIN 30u GOLD HEADER, SMT, 10WAY 2500SeriesLowProfileSMT4wallHeader,Straight,.100X.10010position Socket; IDC; male; PIN:10; vertical; SMT; gold plated; 2A; 2.54mm Pin header SMD, DIN 41651 10P, N2510-6V0C-RB-WD, 3M 3M 2500 系列 2.54mm节距 10路 (2排) 直 PCB 针座, 焊接端接, 2A , 表面安装 10P IDC HEADER SMD HIGH TEMP

$26.7132

Details

4610-7201

3m interconnect solutions

Conn Ejector Header PL 10 POS 2.54mm IDT RA Cable Mount Headers & Wire Housings 10 CON CLSD END W/O MNT FLNG .100" Ã .100" Connector For .050" Pitch Cable CONN PLUG 10POS W/OUT FLANGE

$14.2120

Details

N2510-6002RB-Z

3m interconnect solutions

10 POS LP HEADER,STRAIGHT,22'REELS, 10/HDR/LP/STR

Details

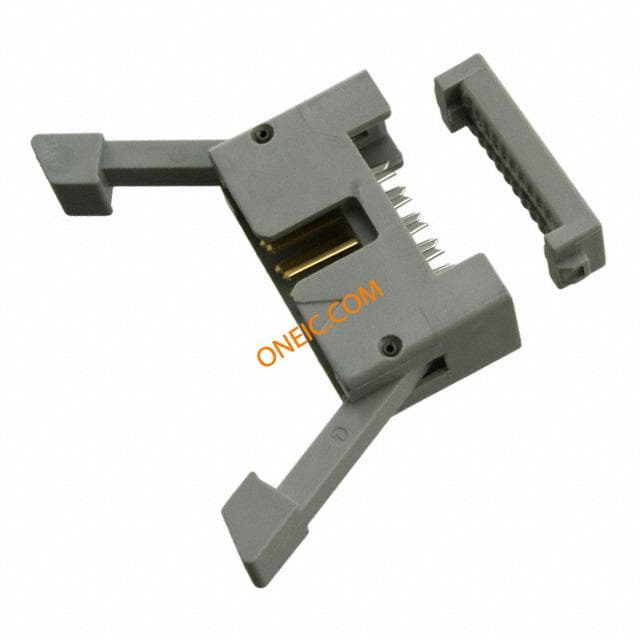

4610-6351

3m interconnect solutions

10/PG/OP/LL/CSL/NFLG/30AVG .100" Ã .100" Connector For .050" Pitch Cable CONN PLUG 10POS W/OUT FLANGE Plug; Wiremount; Glass Filled Polyester; Copper Alloy; Nickel (Underplating) Headers & Wire Housings WIREMT PLUG 10 POS Conn Ejector Header PL 10 POS 2.54mm IDT RA Cable Mount WIRE-BOARD CONNECTOR PLUG, 10POS, 2.54MM Plug,Wiremount;GlassFilledPolyester;CopperAlloy;Nickel(Underplating) 3M 4600 系列 2行 10路 2.54mm节距公连接器 , 电缆安装

$18.1200

Details

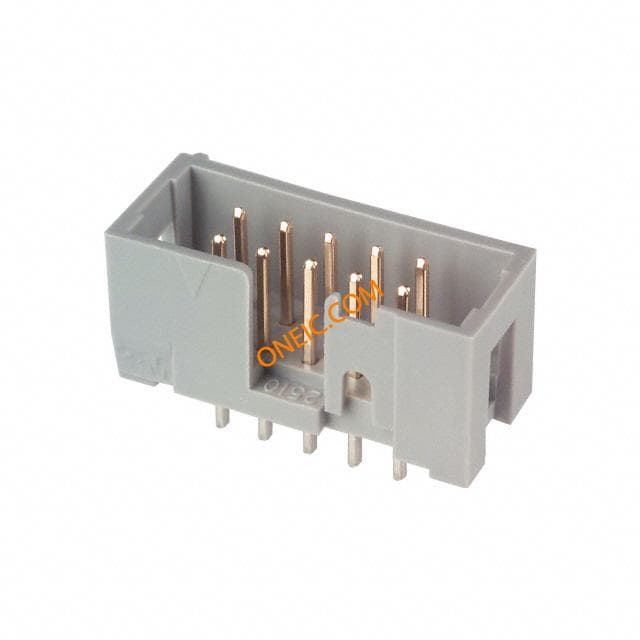

2510-6002UB

3M Electronic Solutions Division

Headers & Wire Housings 10P STRT SOLDER TAIL HIGH TEMP .100" Ã .100" Low Profile, SMT Straight, Straight and Rt Angle Through-Hole, 2500 Series SHROUDED HEADER 10 POS STRAIGHT CONN, BOX HEADER, STR 10 PINS LOWPROFILEHEADER;STRAIGHTSOLDERPINS;10CONTACTS

$14.6880

Details

4610-7250

3M Electronic Solutions Division

ヘッダ & ワイヤハウジング 10 CON CLSD END W/MNT FLNG .100" Ã .100" Connector For .050" Pitch Cable CONN PLUG 10POS W/FLANGE

$14.2120

Details

4610-7050

3M Electronic Solutions Division

Headers & Wire Housings 10 CONTACTS CLOSED END NOTCH B .100" Ã .100" Connector For .050" Pitch Cable CONN PLUG 10POS W/FLANGE

$14.4840

Details

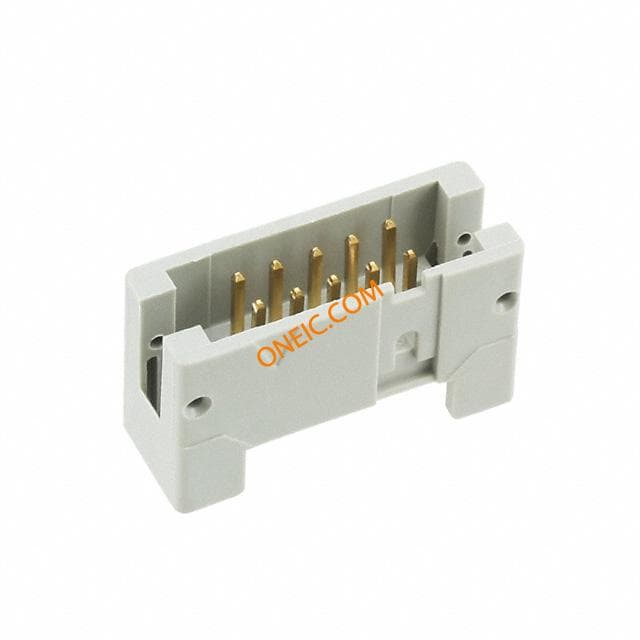

4610-6001

3M Electronic Solutions Division

Headers & Wire Housings 10P OPEN END PLUG IDC SHROUDED HEADER .100" Ã .100" Connector For .050" Pitch Cable CONN PLUG 10POS W/OUT FLANGE Conn Ejector Header PL 10 POS 2.54mm IDT RA Cable Mount WIRE-BOARD CONNECTOR PLUG, 10POS, 2.54MM

$18.1200

Details

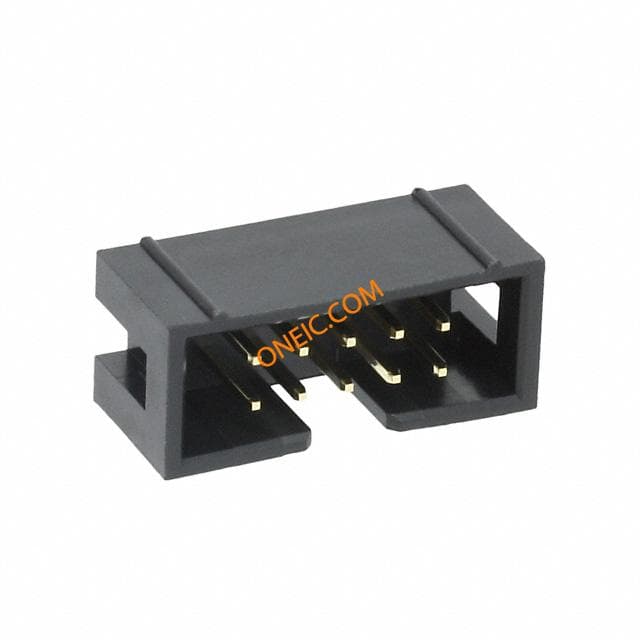

30310-6002HB
