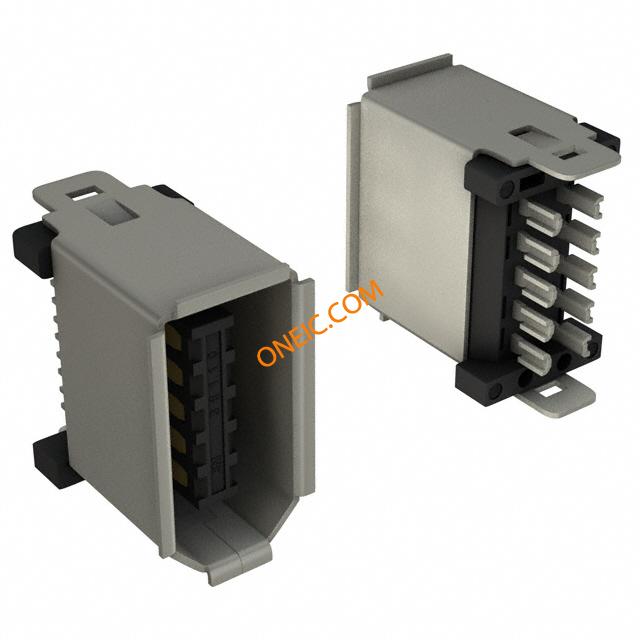

36110-3000FD
| Manufacturer | |
| Description | Conn Shielded Compact Ribbon M 10 POS 2mm Solder Lug ST Cable Mount 10 Terminal 1 Port Wiremount Plug CONN SCR PLG 10POS SLDR CUP GOLD I/O Connectors SCR PLUG WIREMOUNT SHIELDED Cable plug, solder SCR 10P, 36110-3000FD, 3M |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Micro Ribbon Connectors | Part # Aliases | 54745221679 JE150308961 |
| Product Category | I/O Connectors | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | Material Flammability Rating | UL 94 V-0 |
Electrical
| Number of Poles | 10 | Current Rating (Max) | 1 A |
Mechanical
| Pitch | 2 mm | Packaging | Bulk |
| Termination | Solder Lug | Mounting Type | Cable Mount |
| Connector Type | SCR | Contact Finish | Gold |
| Mounting Style | Wire | Connector Style | Plug |
| Contact Material | Phosphor Bronze | Housing Material | Steel |
| Insulation Color | Black | Termination Style | Pin |
| Number of Contacts | 10 | Insulation Material | Liquid Crystal Polymer, Glass Filled |
| Number of Positions | 10 | Contact Finish Thickness | 8µin (0.20µm) |
Product Info
| Type | Shielded Compact Ribbon | Design | Cable plug, solder |
| Gender | M | Series | 361 |
| Features | EMI Shielded | ||
Environmental
| Operating Temperature | - 55 C to + 85 C | ||
Documents & Media
Similar Parts

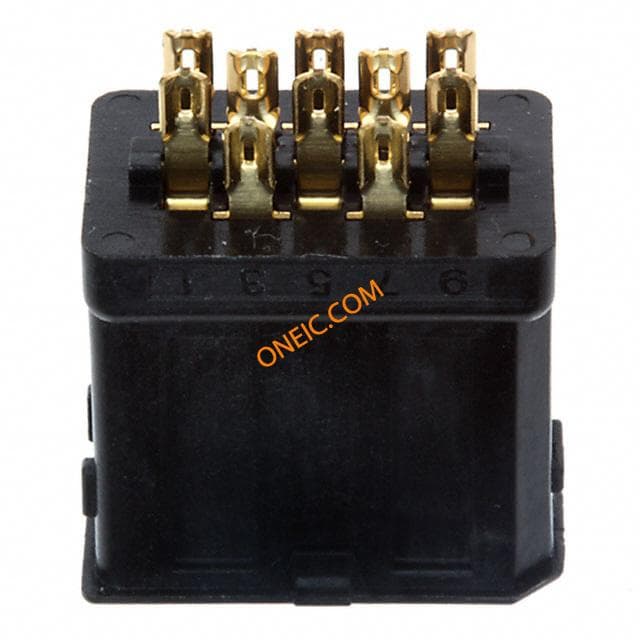

36210-0100PL
3m interconnect solutions
Conn Shielded Compact Ribbon F 10 POS 2mm Solder Lug ST Cable Mount 10 Terminal 1 Port Wiremount Receptacle CONN SCR RCPT 10POS WIREMNT GOLD I/O Connectors 10P RECEPTACLE .3uM GLD FLASH TAIL RECEPTACLE, 10WAY
$25.7075
Details

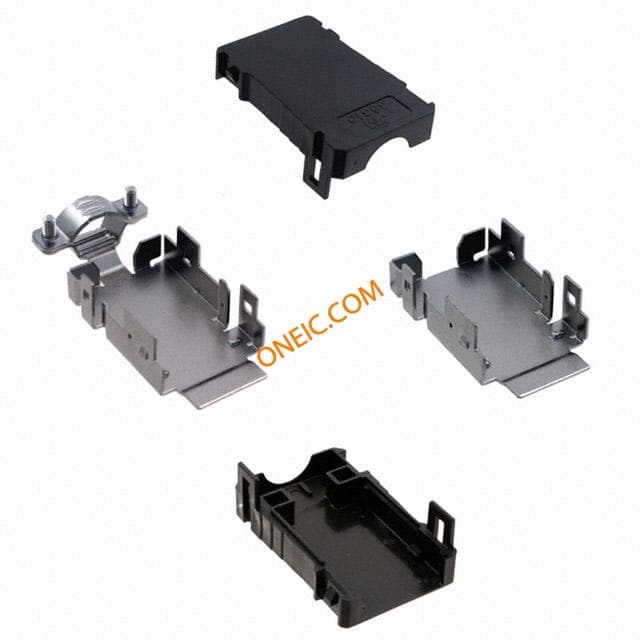

36310-F200-008
3m interconnect solutions
Connector Accessories Shell Kit Polybutylene Terephthalate Plastic Shell And Steel Nickel Finish Metal Shell Shell Kit for Wiremount Plug SCR BACKSHELL FOR WIRE MNT PLUG I/O Connectors SHELL KIT FOR WIREMOUNT PLUG
$33.0072
Details

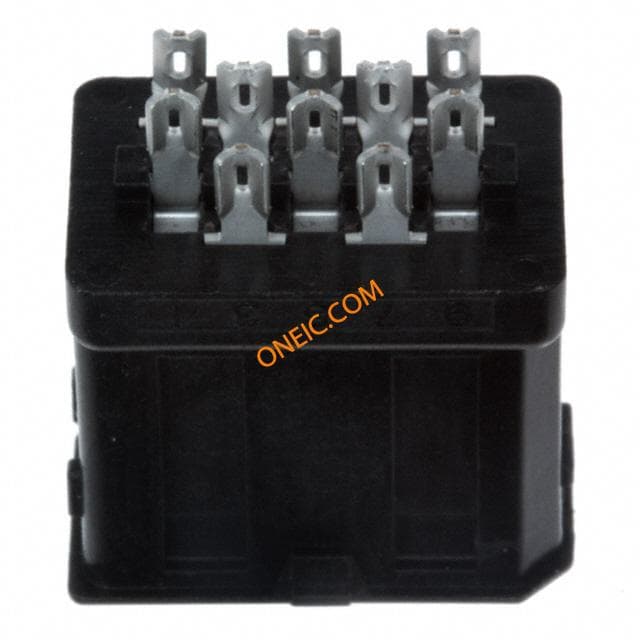

36210-0100FD
