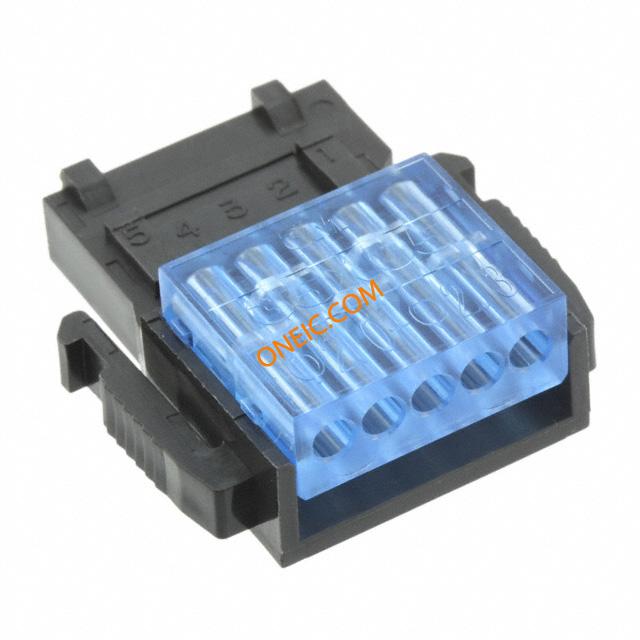

35505-6180-A00GF
| Manufacturer | |
| Description | Conn IDC Connector SKT 5 POS 3mm IDT ST Cable Mount 3 mm, IDC, 5 Position CONN SKT 2-2.3MM BLUE WIREMNT Headers & Wire Housings 5P WRMNT SKT BLUE 18 AWG PowerClampWiremountSocket,3mmIDC5Pos,2.2-3mm,18AWG,Blue |
| Category |
Business
| Part # Aliases | 54745222931 JE150312948 | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Voltage Rating | 250 V | Switch Function | One Touch |
| Current Rating (Max) | 7 A | ||
Mechanical
| Color | Black | Pitch | 3 mm |
| Packaging | Bulk | Wire Type | Discrete |
| Wire Gauge | 18 AWG | Termination | IDT |
| Contact Type | Female Socket | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Socket | Contact Finish | Gold Over Nickel |
| Fastening Type | Latch Lock | Mounting Style | Cable |
| Number of Rows | 1 | Contact Material | Copper Alloy |
| Housing Material | Nylon | Primary Material | Rectangular |
| Cable Termination | IDC | Termination Style | IDC |
| 1st Contact Gender | Socket (Female) | Number of Contacts | 5 |
| Number of Positions | 5 | Contact Finish Thickness | 20µin (0.51µm) |
Product Info
| Type | IDC Connector | Gender | SKT |
| Series | 355 | Manufacturer | PowerClamp |
| Product Type | Receptacles / Sockets - Housings | ||
Documents & Media
Similar Parts

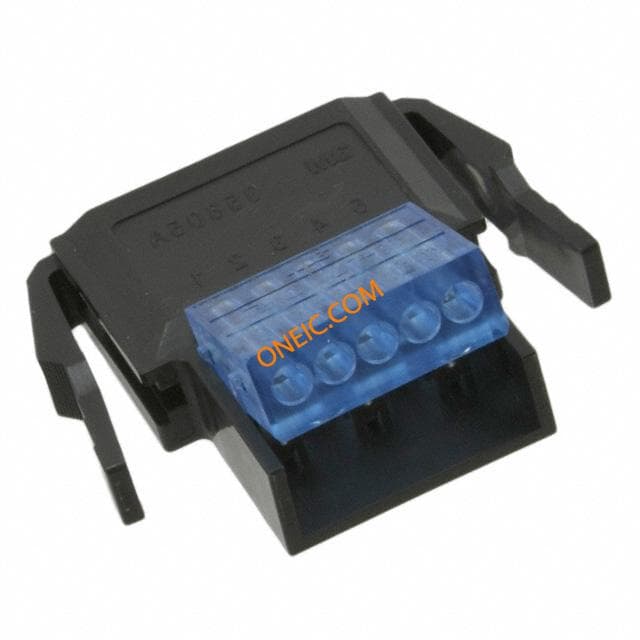

35805-6180-AP0GF
3M Electronic Solutions Division
ヘッダ & ワイヤハウジング 5P IDC 3MM PANEL MNT PWR CLMP WIREMNT PLG CONN SKT 2.0-2.3MM BLUE PNLMNT PowerClampWiremountPlug,3mmIDC,PanelMount,18AWGBlue

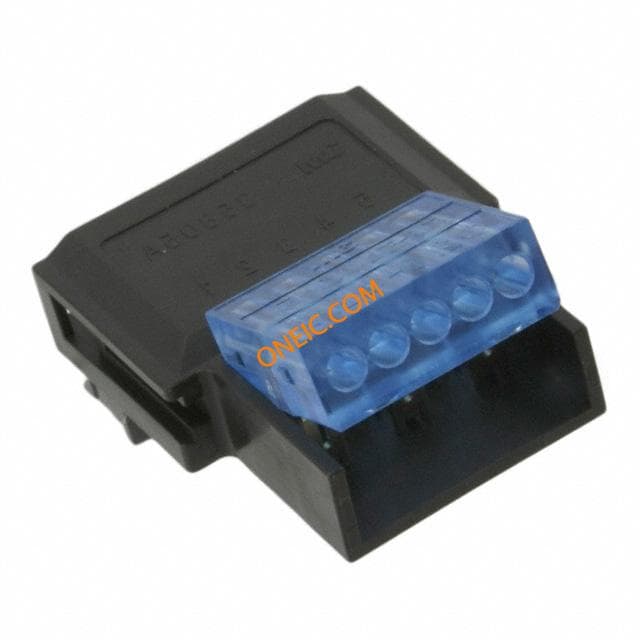

35805-6180-A00GF
3M Electronic Solutions Division
Headers & Wire Housings 5P IDC 3MM PANEL MNT PWR CLMP WIREMNT PLG CONN SKT 2.0-2.3MM BLUE PowerClampWiremountPlug,3mmIDC,18AWGBlue
35605-6114-A00PE
3m interconnect solutions
Conn Power HDR 5 POS 3mm Solder ST Thru-Hole 5 Terminal 1 Port Headers & Wire Housings 5P 1 ROW HEADER POWER CLAMP CONN HEADER A POL BRDMNT PowerClampHeader,3mmStraight,1Row,Wide

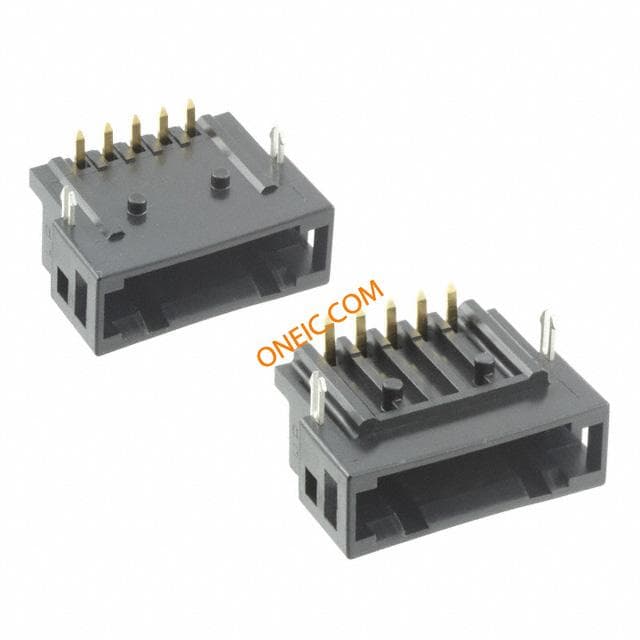

35605-5153-AP0PE
