3421-6600
| Manufacturer | |
| Description | Conn IDC Connector SKT 20 POS 2.54mm IDT RA Cable Mount 20P WIREMOUNT SOCKET RA 1,27mm .100" Ã .100" Wiremount for .050" Pitch Cable SOCK CONN 20 CONT OPEN W/POL GLD 20 way IDC bump polarised socket Headers & Wire Housings 20P IDC SOCKET SOCKET, IDC, 20WAY SOCKETCONNECTOR;20CONTACTS Multipole socket DIN 41651 20P, 3421-6600, 3M 3M 2行 20路 2.54mm节距 直角 母 IDC 连接器 , 电缆安装 |
| Category |
Business
| MOQ | 1 | Unit Pack | 300 |
| Part # Aliases | 05400733651 80610121057 | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 100 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (19-Dec-2012) |
| Tariff No | 85369010 | Leadfree Defin | RoHS-conform |
| Approval Agency | UL E68080 | RoHS Compliance | Yes |
| Material Flammability Rating | :UL94V-0 | ||
Electrical
| Range deg/s | :3M - 3000 Series | Voltage Rating | 1000V |
| Voltage - Working | :350V | Contact Resistance | :20mohm |
| Current Rating (Max) | 1A | Insulation Resistance | :1000Mohm |
| Contact Rating (Current) | :1A | ||
Mechanical
| Color | Gray | Depth | 7.6 mm |
| Pitch | 2.54 mm | Height | 10.4 mm |
| Weight | 1.100 lbs | Material | :Glass Filled Polyester (PBT) |
| Packaging | Bulk | Wire Type | Ribbon Cable |
| Cable Exit | NO | Wire Gauge | 28 TO 26 |
| Orientation | STRAIGHT | Row Spacing | 0.100" (2.54mm) |
| Termination | IDT | Contact Type | FEMALE |
| Lead Spacing | :2.54mm | Pitch - Post | 2.54mm |
| Housing Color | Gray | Mounting Type | Free Hanging (In-Line) |
| Angle of Throw | Straight | Connector Type | Receptacle |
| Contact Finish | Gold Over Nickel | Mounting Style | Cable |
| Number of Rows | 2 | Contact Material | Copper Alloy |
| Housing Material | IDC | Length - Overall | 30 mm |
| Primary Material | Industrial | Cable Termination | IDC |
| Pin Hole Diameter | 0.1" | Termination Style | IDC |
| 1st Contact Gender | Socket (Female) | Color - Connectors | :Grey |
| Number of Contacts | 20 | Contact Termination | :IDC / IDT |
| Dielectric Material | PBT | Number of Positions | 20 |
| Maximum Pressure (PSI) | :1.6mm | Mounting Hole Diameter | :0.89mm |
| Contact Finish Thickness | 30µin (0.76µm) | Contact Material - Plating | GOLD |
| 1st Connector Mounting Type | :Cable | ||
Product Info
| Type | IDC Connector | Gender | SKT |
| Series | 3000 | Features | Feed Through, Polarizing Key |
| Polarity | :Bump | Matchcode | 34216600 |
| Manufacturer | 3000Series | Product Type | Receptacles / Sockets - Housings |
| Standard Leadtime | 5 weeks | ||
Environmental
| Mating Cycles | 1 | Operating Temperature | -55 TO 105°C |
Documents & Media
Similar Parts
N3428-2002RB
3m interconnect solutions
Conn Ejector Header HDR 20 POS 2.54mm Solder ST Thru-Hole .100" Ã .100" Three-Wall Latch/Ejector, Straight and Right Angle CONN HEADER 20POS STR GOLD T/H

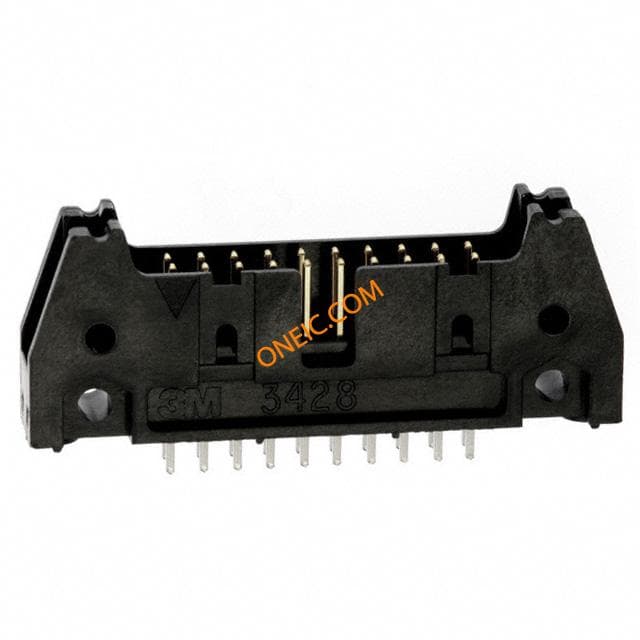

N3428-6002RB
3m interconnect solutions
Conn Ejector Header HDR 20 POS 2.54mm Solder ST Thru-Hole .100" Ã .100" Latch/Ejector, Straight and Right Angle PROTECT HEADER STRGT 20 CONTACT 3M 3000 Series 2.54mm Pitch 20 Way 2 Row Straight PCB Header, Solder Termination, 2A Headers & Wire Housings BOARDMT HDR 20P NO LATCH/EJECTOR ConnEjectorHeaderHDR20POS2.54mmSolderSTThru-Hole Pin header DIN 41651 20P, N3428-6002RB, 3M 3M 3000 系列 2.54mm节距 20路 (2排) 直 PCB 针座, 焊接端接, 2A , 通孔
N3428-6602UG
3m interconnect solutions
Conn Ejector Header HDR 20 POS 2.54mm Solder ST Thru-Hole CONN HEADER 20POS STR LONG LATCH
3428-L203
3m interconnect solutions
Conn Ejector Header HDR 40 POS 2.54mm Solder RA Thru-Hole CONN HEADER STKD 20POS R/A SH
N3428-620T02RB
3m interconnect solutions
Conn Ejector Header HDR 20 POS 2.54mm Press Fit ST Thru-Hole .100" Ã .100" Latch/Ejector, Straight, Compliant Pin CONN HEADER 20PS STR SHORT LATCH Headers & Wire Housings 20PS STR SHORT LATCH HEADER

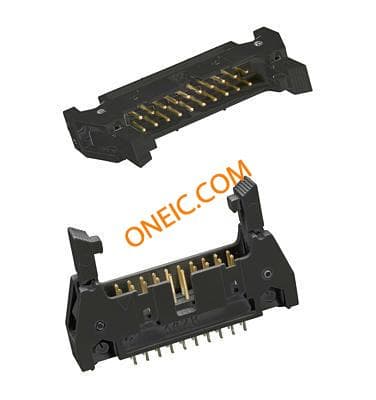

N3428-6502RB
3m interconnect solutions
Conn Ejector Header HDR 20 POS 2.54mm Solder ST Thru-Hole .100" Ã .100" Latch/Ejector, Straight and Right Angle CONN HEADER 20PS STR SHORT LATCH

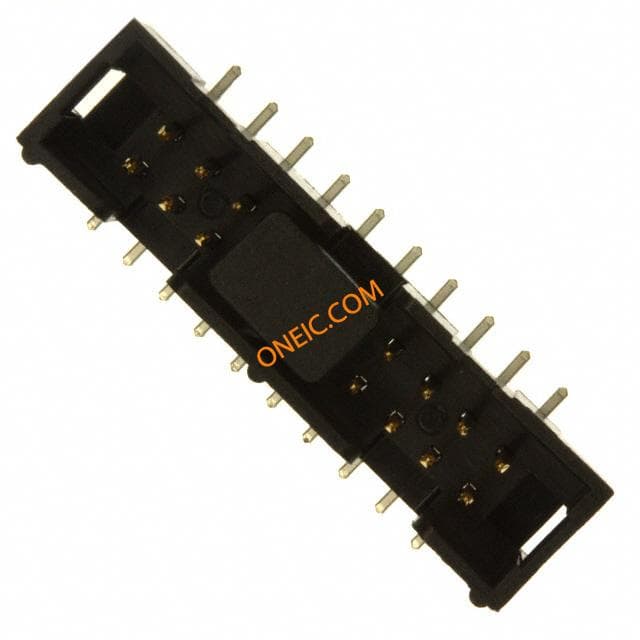

D2520-6V0C-AR-WE
3m interconnect solutions
Conn Shrouded Header HDR 20 POS 2.54mm Solder ST SMD T/R CONN HEADER 20POS SMD VERT 10AU Headers & Wire Housings 20P 4-WALL HEADER VERTICAL SMT 10U AU Conn;Rect;Header;4-Wall;0.100in;20Pin;Low;RtAngle;Thru-Hole;SolderTail
D3428-5302-AR
3m interconnect solutions
Conn Ejector Header HDR 20 POS 2.54mm Solder RA Thru-Hole CONN HEADER 20POS R/A LONG LATCH WIRE-BOARD CONN, HEADER, 20POS, 2.54MM
3428-6602UG
3M Electronic Solutions Division
Headers & Wire Housings 20P STRT HEADER LONG SNAP-IN LATCH CONN HEADER 20POS STR LONG LATCH
3428-5502
3M Electronic Solutions Division
Headers & Wire Housings USE 517-N3428-5202RB CONN HEADER 20PS R/A SHORT LATCH
3428-6602
3M Electronic Solutions Division
Headers & Wire Housings USE 517-N3428-6302RB .100" Ã .100" Latch/Ejector, Straight and Right Angle CONN HEADER 20POS STR LONG LATCH
3428-5602
3M Electronic Solutions Division
Headers & Wire Housings USE 517-N3428-5302RB .100" Ã .100" Latch/Ejector, Straight and Right Angle CONN HEADER 20POS R/A LONG LATCH
3428-6603UG
3M Electronic Solutions Division
Headers & Wire Housings 20P STRT SOLDER TAIL *NCNR CONN HEADER 20POS STR LONG LATCH
3428-6003
3M Electronic Solutions Division
Headers & Wire Housings 20P STRT SOLDER TAIL .100" Ã .100" Latch/Ejector, Straight and Right Angle CONN HEADER 20POS STR NO LATCH

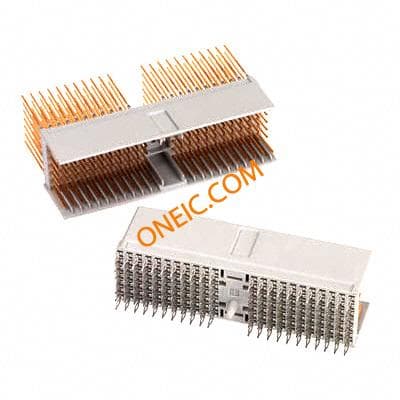

N3428-6003RB
3M Electronic Solutions Division
ヘッダ & ワイヤハウジング BOARDMT HDR 20P NO LATCH/EJECTOR .100" Ã .100" Latch/Ejector, Straight and Right Angle CONN HEADER 20POS STR NO LATCH
4620-7001
3M Electronic Solutions Division
Headers & Wire Housings 20P CLOSED END PLUG .100" Ã .100" Connector For .050" Pitch Cable CONN PLUG 20POS W/OUT FLANGE

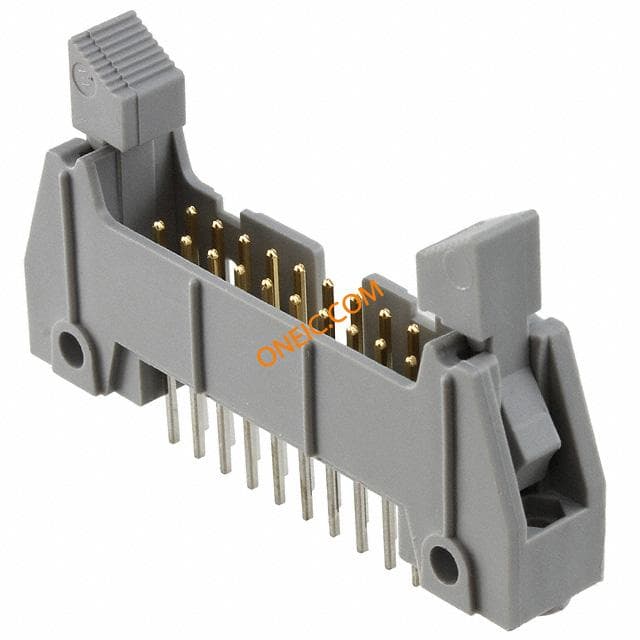

3428-6202
