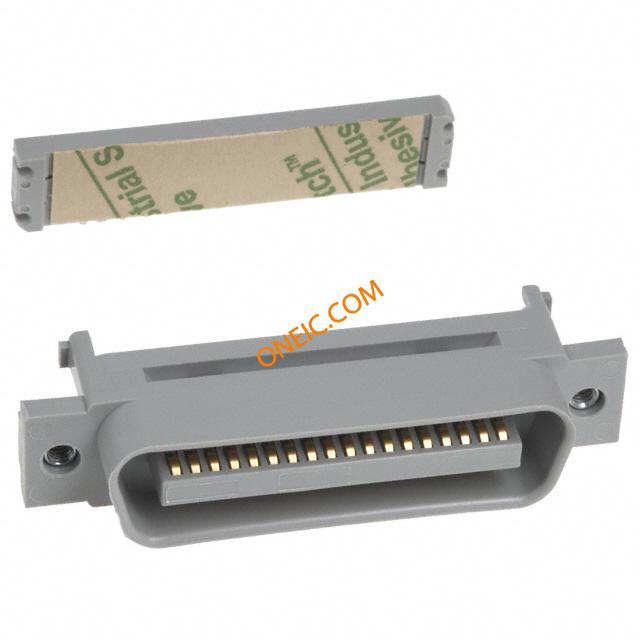

3366-1002
| Manufacturer | |
| Description | Conn SCSI PL 36 POS 2.16mm IDT RA Cable Mount 36 Terminal 1 Port D-Sub Standard Connectors 36C D RIBBON PLUG Molded Shell, Low profile plug DELTA CONN 36 POS PLUG W/INSERT D-SubConnector;Plastic;RoundConductorFlat;26to28AWG;0.05in.;36 |
| Category |
Business
| Part # Aliases | 05400731886 80610084982 | Product Category | D-Sub Standard Connectors |
| Standard Package | Bulk | Factory Pack Quantity | 100 |
Compliance
| RoHS | RoHS Compliant | Approval Agency | cUL,UL |
| RoHS Compliance | Yes | Material Flammability Rating | UL94V-0 |
Electrical
| Current Rating (Max) | 1 A | ||
Mechanical
| Pitch | 2.16 mm | Weight | 5.800 lbs |
| Cable Type | RoundConductorFlat | Wire Gauge | 28-26 |
| Termination | IDT | Mounting Type | Cable Mount |
| Angle of Throw | Straight | Conductor Type | 0.05 |
| Connector Type | Plug | Contact Finish | Gold |
| Flange Feature | Insert, Threaded (4-40) | Mounting Style | Wire |
| Number of Rows | 2 | Connector Style | Center Strip Contacts |
| Contact Material | CopperAlloy | Housing Material | Plastic |
| Primary Material | D-Ribbon | Number of Contacts | 36 |
| Dielectric Material | PBT | Number of Positions | 36 |
| Contact Finish Thickness | 30µin (0.76µm) | ||
Product Info
| Type | SCSI | Gender | PL |
| Manufacturer | 3000 | Application Specifics | Commercial |
