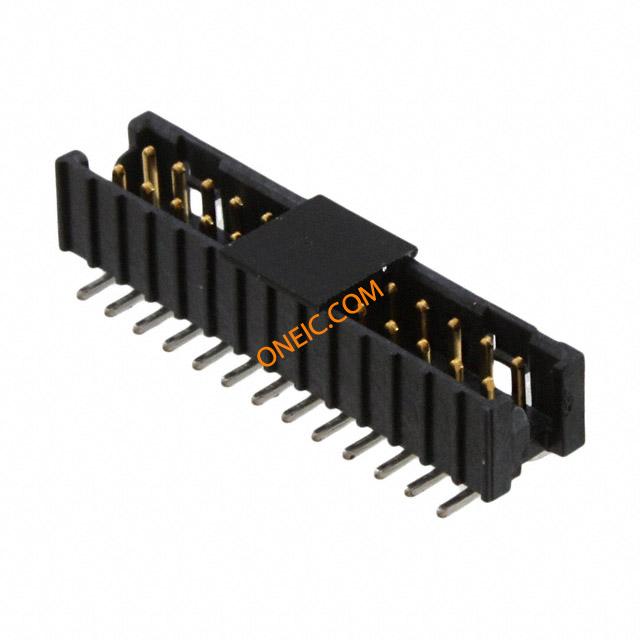

159126-2002

Manufacturer	3M Company
Description	Conn Shrouded Header HDR 26 POS 2mm Solder ST Thru-Hole CONN HEADER 2MM 26POS VRT AU SMD Headers & Wire Housings 26P VERTICAL HEADER SMT, Au CONNHEADER2MM26POSVERTAUSMD
Category	Connector SolutionsBoard to Board ConnectorsShrouded Header Connectors

对参数有疑问？问 AI 助手

Business

Other Names	3M9704CT	Part # Aliases	05111558013 80001254376
Standard Package	Bulk

Compliance

RoHS

Lead free / RoHS Compliant

Electrical

Switch Function

Dual Friction

Current Rating (Max)

1 A

Mechanical

Color	Black	Pitch	2 mm
Packaging	Tape & Reel (TR)	Row Spacing	0.079" (2.00mm)
Termination	Solder	Contact Type	Male Pin
Mounting Type	Surface Mount	Connector Type	Header, Shrouded
Contact Finish	Gold Over Nickel	Number of Rows	2
Contact Material	Copper Alloy	Housing Material	Liquid Crystal Polymer (LCP)
Primary Material	Rectangular	Termination Style	SMD
Number of Contacts	26	Number of Positions	26
Contact Length - Mating	0.153" (3.89mm)	Contact Finish Thickness	30µin (0.76µm)

Product Info

Type	Shrouded Header	Gender	HDR
Series	159	Manufacturer	159Series
Product Type	Headers	Number of Positions Loaded	All

Environmental

Operating Temperature

- 55 C to + 105 C

Documents & Media

Online Document

mediawebserver?mwsId=SSSSSu7zK1fslxtUOYt1OY_Uev7qe17zHvTSevTSeSSSSSS--

Online Document

159 Series

PDF Document

1320193.pdf

PDF Document

cd2359-1.pdf
