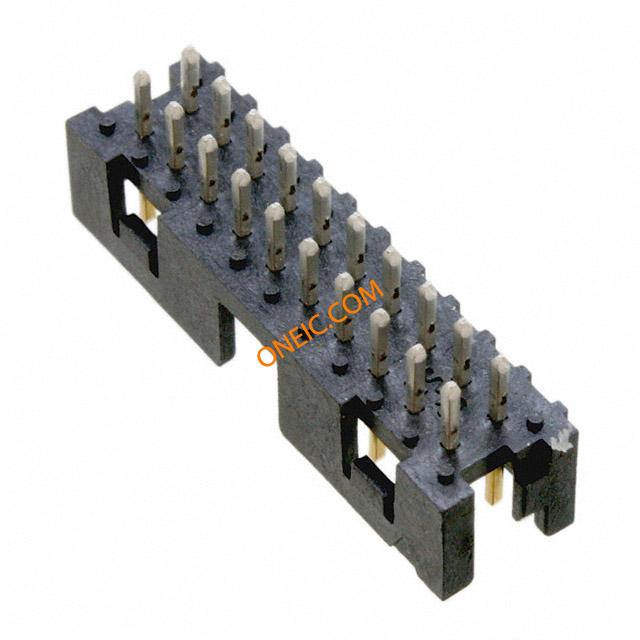

159120-6002
| Manufacturer | |
| Description | Conn Shrouded Header HDR 20 POS 2mm Solder ST Thru-Hole CONN HEADER 2MM 20POS VERT GOLD IDC Header 2mm 20w conn VTH centre bump HEADER, 2MM, VERT, THT, 20WAY CONNHEADER2MM20POSVERTGOLD 3M 159 系列 2行 20路 2mm节距 公 IDC 连接器 , 通孔 |
| Category |
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
Electrical
| Range deg/s | :3M - 159 Series | Current Rating (Max) | 1A |
Mechanical
| Color | Black | Pitch | 2 mm |
| Weight | 0.025 | Packaging | Tray |
| Row Spacing | 0.079" (2.00mm) | Termination | Solder |
| Contact Type | Male Pin | Mounting Type | Through Hole |
| Connector Type | Header, Shrouded | Contact Finish | Gold Over Nickel |
| Number of Rows | 2 | Contact Material | Copper Alloy |
| Housing Material | Glass Fibre Reinforced Liquid Crystal Polymer | Primary Material | Rectangular |
| Number of Contacts | 20 | Contact Termination | :Through Hole Vertical |
| Number of Positions | 20 | Contact Length - Mating | 0.153" (3.89mm) |
| Contact Finish Thickness | 30µin (0.76µm) | 1st Connector Mounting Type | :Vertical |
Product Info
| Type | Shrouded Header | Gender | HDR |
| Series | 159 | Manufacturer | 159Series |
| Number of Positions Loaded | All | ||
Environmental
| Operating Temperature | +105°C | ||
Documents & Media
Similar Parts
158120-1100
3m interconnect solutions
2MM WMS20PADHCBTRAY30AU Headers & Wire Housings 158120-1100=2MM WMS 20PADHCBTRAY30AU CABLE RIBBON SKT 2MM 20POS GOLD IDC Socket 2mm 20 way conn centre bump Headers & Wire Housings 158120-1100=2MM WMS 20P\ADH\CB\TRAY\30AU SOCKET, 2MM, IDC, 20WAY IDCSocket2mm20wayconncentrebump 3M 158 系列 2行 20路 2mm节距 直角 母 IDC 连接器 , 电缆安装
158220-0120
3m interconnect solutions
Conn IDC Connector SKT 20 POS 2mm IDT RA Cable Mount Sword CABLE RIBBON SKT 2MM 20POS GOLD IDC Socket 2mm 20 way conn centre bump Headers & Wire Housings 20P IDC SOCKET RIBBON CABLE MNT Au CONNECTOR, RECEPTACLE, IDC, 2MM, 20WAY CABLERIBBONSKT2MM20POSGOLD 3M 158 系列 2行 20路 2mm节距 直角 母 IDC 连接器 , 电缆安装
158220-012015
3m interconnect solutions
2MM WMS20PPRASMBLCBSWRD15AU CABLE RIBBON SKT 2MM 20POS GOLD Headers & Wire Housings 2MM WMS/20P/PRASMBL/ CB/SWRD/15AU
159120-5002
3m interconnect solutions
Conn Shrouded Header HDR 20 POS 2mm Solder RA Thru-Hole CONN HEADER 2MM 20POS R/A GOLD IDC Header 2mm 20w conn RATH centre bump HEADER, 2MM, R/A, THT, 20WAY CONNHEADER2MM20POSR/AGOLD 3M 159 系列 2行 20路 2mm节距 直角 公 IDC 连接器 , 通孔
159120-2002
3m interconnect solutions
Conn Shrouded Header HDR 20 POS 2mm Solder ST SMD CONN HEADER 2MM 20POS VRT AU SMD Headers & Wire Housings 20P VERTICAL HEADER SMT, Au HEADER, 2MM, VERT, SMT, 20WAY CONNHEADER2MM20POSVERTAUSMD

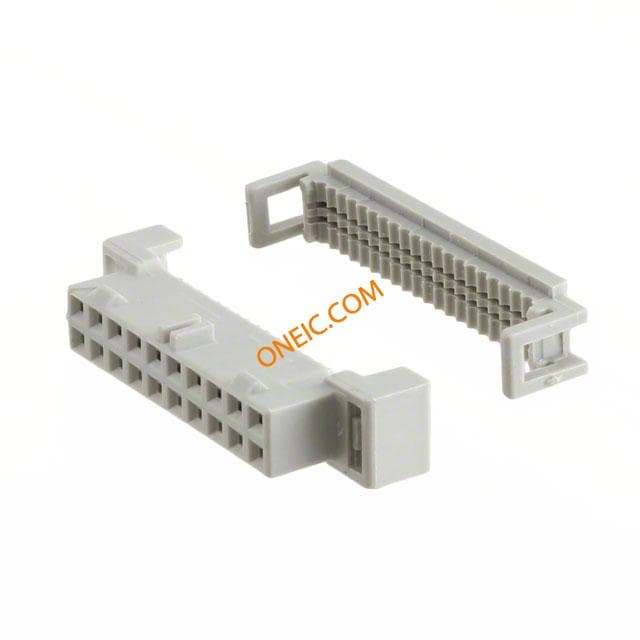

158320-211015
