155226-6302-RB
| Manufacturer | |
| Description | Conn Ejector Header HDR 26 POS 2mm Solder ST Thru-Hole 2 mm x 2 mm Straight & Right Angle Through-Hole, Straight Surfacemount CONN HEADER 2MM 26POS VERT .112" Headers & Wire Housings 26P ST PRESSON LATCH .112 TAIL LENGTH |
| Category |
Business
| Part # Aliases | 05111116934 80001123852 | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 100 |
Compliance
| RoHS | Lead free / RoHS Compliant | RoHS Compliance | Yes |
Electrical
| Current Rating (Max) | 1 A | ||
Mechanical
| Color | Black | Pitch | 2 mm |
| Packaging | Tray | Row Spacing | 0.079" (2.00mm) |
| Termination | Solder | Contact Type | Male Pin |
| Mounting Type | Through Hole | Connector Type | Header, Shrouded |
| Contact Finish | Gold Over Nickel | Fastening Type | Latch Lock/Eject Hooks |
| Number of Rows | 2 | Contact Material | Copper Alloy |
| Termination Style | Through Hole | Number of Contacts | 26 |
| Number of Positions | 26 | Contact Length - Mating | 0.150" (3.81mm) |
| Contact Finish Thickness | 30µin (0.76µm) | ||
Product Info
| Type | Ejector Header | Gender | HDR |
| Series | 1552 | Product Type | Headers |
| Number of Positions Loaded | All | ||
Documents & Media
Similar Parts
152226-0110-GB
3m interconnect solutions
Conn IDC Connector SKT 26 POS 2mm IDT RA Cable Mount Headers & Wire Housings 26POS RA CBL MNT CONN 26POS 2MM IDC SOCKET 30AU
152226-0113-GG
3m interconnect solutions
Conn IDC Connector SKT 26 POS 2mm IDT RA Cable Mount 2 mm à 2 mm Pak 20 Wiremount for 1 mm Pitch Cable CONN SOCKET IDC 2MM 26POS 15GOLD
152226-0110-GG
3m interconnect solutions
Conn IDC Connector SKT 26 POS 2mm IDT RA Cable Mount WIREMOUNT SOCKET CONN SOCKET IDC 2MM 26POS 15GOLD
953226-2000-AR-PR
3m interconnect solutions
Conn Socket Strip SKT 26 POS 2mm Solder ST SMD T/R 2 mm x 2 mm Straight, Dual Entry, Surface Mount CONN SOCKET 26POS 2MM VERT SMD
956226-2000-AR-PT
3m interconnect solutions
Conn Socket Strip SKT 26 POS 2mm Solder ST SMD Tube 2 mm x 2 mm Straight, Dual or Bottom Entry, Surface Mount CONN SOCKET 26POS 2MM VERT SMD
956226-2020-AR-PR
3m interconnect solutions
Conn Socket Strip SKT 26 POS 2mm Solder ST SMD T/R 2 mm x 2 mm Straight, Dual or Bottom Entry, Surface Mount CONN SOCKET 26POS 2MM VERT SMD Headers & Wire Housings 26P THRU-BD SKT 2R STRT SMT 10U AU
953426-6602-AR
3m interconnect solutions
Conn Socket Strip SKT 26 POS 2mm Solder ST Thru-Hole CONN SOCKET 26POS 2MM VERT T/H
953226-2000-AR-PT
3m interconnect solutions
Conn Socket Strip SKT 26 POS 2mm Solder ST SMD Tube 2 mm x 2 mm Straight, Dual Entry, Surface Mount CONN SOCKET 26POS 2MM VERT SMD
950426-8200-AR-TR
3m interconnect solutions
Conn Socket Strip SKT 26 POS 2mm Solder RA SMD T/R 2 mm x 2 mm Right Angle, Surface Mount CONN SOCKET 26POS 2MM R/A SMD
956226-2700-AR-TP
3m interconnect solutions
Conn Socket Strip SKT 26 POS 2mm Solder ST SMD Tube 2 mm x 2 mm Straight, Dual or Bottom Entry, Surface Mount CONN SOCKET 26POS 2MM VERT SMD
956226-2700-AR-PT
3m interconnect solutions
Conn Socket Strip SKT 26 POS 2mm Solder ST SMD Tube 2 mm x 2 mm Straight, Dual or Bottom Entry, Surface Mount CONN SOCKET 26POS 2MM VERT SMD
956226-2020-AR-PT
3m interconnect solutions
Conn Socket Strip SKT 26 POS 2mm Solder ST SMD Tube 2 mm x 2 mm Straight, Dual or Bottom Entry, Surface Mount CONN SOCKET 26POS 2MM VERT SMD

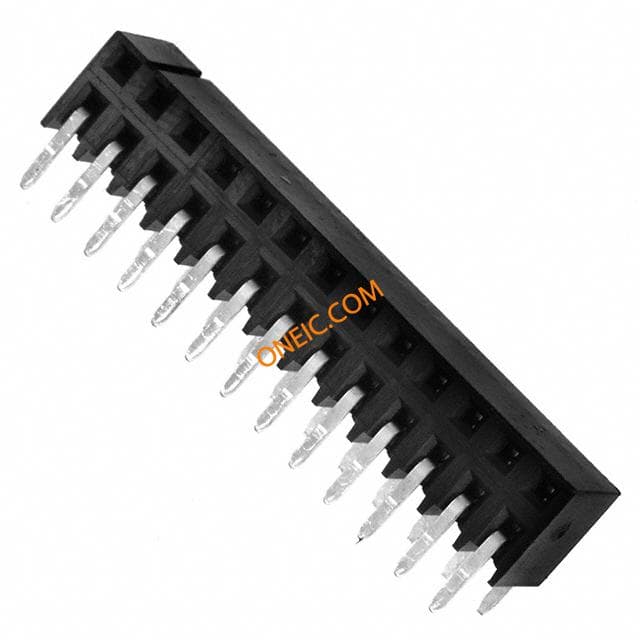

950426-7203-AR
3m interconnect solutions
Conn Socket Strip SKT 26 POS 2mm Solder RA Thru-Hole CONN SOCKET 26POS 2MM R/A T/H
956226-2720-AR-PR
3m interconnect solutions
Conn Socket Strip SKT 26 POS 2mm Solder ST SMD T/R 2 mm x 2 mm Straight, Dual or Bottom Entry, Surface Mount CONN SOCKET 26POS 2MM VERT SMD Headers & Wire Housings 26P THRU-BD SKT 2R STRT SMT 10U AU

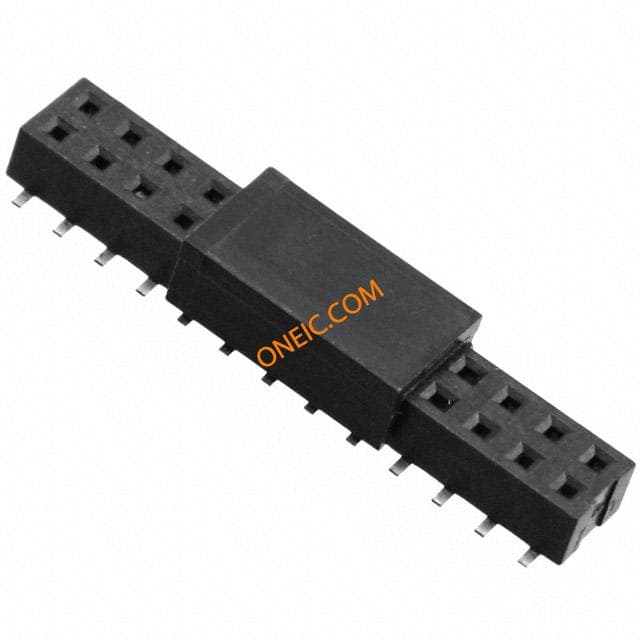

956226-2000-AR-PR
