152212-0100-GB
| Manufacturer | |
| Description | Conn IDC Connector SKT 12 POS 2mm IDT RA Cable Mount Headers & Wire Housings 12P LO PRO SOCKET CONN 12POS 2MM IDC SOCKET GOLD WIRE-BOARD CONNECTOR, SOCKET, 12POS, 2MM Socket;Pak20Wiremount;1mmpitchcable;CopperAlloy;1A;1000V(RMS) |
| Category |
Business
| Part # Aliases | 05113827593 80610492680 | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 125 |
Compliance
| RoHS | Lead free / RoHS Compliant | Standards | ULListed,ULRecognized,cULRecognized,RoHSCompliant |
| Tariff No | 85369010 | Approval Agency | cUL,UL |
| Material Flammability Rating | UL94V-0 | ||
Electrical
| Voltage - Rated | 1000V(RMS) | Current Rating (Max) | 1A |
| Insulation Resistance | >1x10^9Ohms | ||
Mechanical
| Color | Gray | Pitch | 2 mm |
| Weight | 0.002 | Plating | Gold |
| Packaging | Bulk | Wire Type | Ribbon Cable |
| Cable Exit | LowProfile | Wire Gauge | 28 AWG |
| Row Spacing | 0.079" (2.00mm) | Termination | IDT |
| Contact Type | Female Socket | Socket Depth | Pak20Wiremount |
| Mounting Type | Free Hanging (In-Line) | Angle of Throw | Straight |
| Connector Type | Receptacle | Contact Finish | Gold Over Nickel |
| Mounting Style | Cable | Number of Rows | 2 |
| Contact Material | :Copper Alloy | Housing Material | GlassFilledPolyester |
| Length - Overall | 0.67" | Primary Material | InterconnectSystem |
| Size / Dimension | 0.67in.Lx0.16in.Wx0.29in.H | Wire Termination | 28AWGStranded |
| Cable Termination | IDC | Pin Hole Diameter | 0.079" |
| Termination Style | IDC | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 12 | Contact Termination | :IDC / IDT |
| Number of Positions | 12 | Material - Insulation | GlassFilledPolyester(PBT) |
| Contact Finish Thickness | 30µin (0.76µm) | 1st Connector Mounting Type | :Cable |
Product Info
| Type | IDC Connector | Gender | SKT |
| Series | 1522 | Features | Feed Through |
| Manufacturer | 1522Series | Product Type | Receptacles / Sockets - Housings |
| For Use With/Related Products | 1mmpitchcable | ||
Environmental
| Operating Temperature | -67to+221°F | Operating Temperature - Junction | +105°C |
Documents & Media
Similar Parts
151212-8422-RB
3m interconnect solutions
Conn Unshrouded Header HDR 12 POS 2mm Solder ST Thru-Hole 2 mm à 2 mm Solder Tail Straight & Right Angle, Surfacemount Straight CONN 12POS 2MM HEADER DUAL GOLD Headers & Wire Housings 12P STRT HDR .118 TAIL 30U AU
151212-7322-RB
3m interconnect solutions
Conn Unshrouded Header HDR 12 POS 2mm Solder RA Thru-Hole 2 mm à 2 mm Solder Tail Straight & Right Angle, Surfacemount Straight CONN 12POS 2MM HEADER DUAL R/A
151212-2420-RB
3m interconnect solutions
Conn Unshrouded Header HDR 12 POS 2mm Solder ST SMD Tray 2 mm à 2 mm Solder Tail Straight & Right Angle, Surfacemount Straight CONN HEADER 2MM 12PS DL SMD GOLD
155212-5303-RB
3m interconnect solutions
Conn Ejector Header HDR 12 POS 2mm Solder RA Thru-Hole 2 mm x 2 mm Straight & Right Angle Through-Hole, Straight Surfacemount CONN HEADER 2MM 12POS R/A .155"
100810
3m interconnect solutions
100810SCC1000SERIES8X10STATICSHIELDINGBAG100EACH Anti-Static Control Products 8X10 pkg./100 Anti-Static Control Products 8X10" pkg./100 BAG STATIC METL-IN 8X10" 1=1 BAG SCC 1000 Static Shield Bag/Metal-IN (Size 8 x 10) ANTI-STATIC STORAGE BAGS SCC1000StaticShieldBag/Metal-IN(Size8x10) Protection bag; ESD version; metallised, open; W:203mm; L:254mm
151212-8422-TB
3M Electronic Solutions Division
Headers & Wire Housings 12P STRT SOLDER TAIL Conn Unshrouded Header HDR 12 POS 2mm Solder ST Thru-Hole 2 mm à 2 mm Solder Tail Straight & Right Angle, Surfacemount Straight CONN 12POS 2MM HEADER DUAL GOLD
151212-7422-TB
3M Electronic Solutions Division
Headers & Wire Housings 12P R/A SOLDER TAIL 2 mm à 2 mm Solder Tail Straight & Right Angle, Surfacemount Straight CONN 12POS2MM HEADER RT/DUAL GLD Header;Pak20PinStrip;CopperAlloy;GlassFilledPolyester;12;1.5A
151212-8322-TB
3M Electronic Solutions Division
Headers & Wire Housings 12P STRT SOLDER TAIL 2 mm à 2 mm Solder Tail Straight & Right Angle, Surfacemount Straight CONN HEADER 2MM 12PS DL T/H 30AU Header;Pak20PinStrip;CopperAlloy;GlassFilledPolyester;12;1.5A
155212-6303-RB
3M Electronic Solutions Division
ヘッダ & ワイヤハウジング 12P STRT PRESSLATCH .155 TAIL LENGTH 2 mm x 2 mm Straight & Right Angle Through-Hole, Straight Surfacemount CONN HEADER 2MM 12POS VERT .155"
155212-2300-RB
3M Electronic Solutions Division
Headers & Wire Housings 12P SURF MT 30u GOLD PRESSON LATCH 2 mm x 2 mm Straight & Right Angle Through-Hole, Straight Surfacemount CONN HEADER 2MM 12POS VERT SMT
155212-6302-RB
3m interconnect solutions
Conn Ejector Header HDR 12 POS 2mm Solder ST Thru-Hole 2 mm x 2 mm Straight & Right Angle Through-Hole, Straight Surfacemount CONN HEADER 2MM 12POS VERT .112" Headers & Wire Housings 12P STRT PRESSLATCH .112 TAIL LENGTH
151212-7422-TH
3M Electronic Solutions Division
ヘッダ & ワイヤハウジング 12P R/A SOLDER TAIL CONN HEADER 2MM 12PS DL R/A 15AU Headers & Wire Housings 12P R/A SOLDER TAIL
155212-5202-RB
3m interconnect solutions
Conn Ejector Header HDR 12 POS 2mm Solder RA Thru-Hole CONN HEADER 2MM 12POS R/A .112"
155212-5302-RB
3M Electronic Solutions Division
Headers & Wire Housings 12P R/A PRESON LATCH .112 TAIL LENGTH 2 mm x 2 mm Straight & Right Angle Through-Hole, Straight Surfacemount CONN HEADER 2MM 12POS R/A .112" Pitch Spa
ADIS16265/PCBZ
analog devices
Evaluation Board For Programmable Low Power Gyroscope BOARD EVALUATION FOR ADIS16265 Acceleration Sensor Development Tools ADIS16265 Eval Brd ADIS16265/PCB EVAL. BD. PB FREE Analog Devices 评估测试板
151212-7422-RB
3m interconnect solutions
Conn Unshrouded Header HDR 12 POS 2mm Solder RA Thru-Hole 2 mm à 2 mm Solder Tail Straight & Right Angle, Surfacemount Straight CONN 12PS 2MM HEADER R/A DL GOLD Headers & Wire Housings 12P RA HDR .118 TAIL 30U AU
3448-152212
3m interconnect solutions

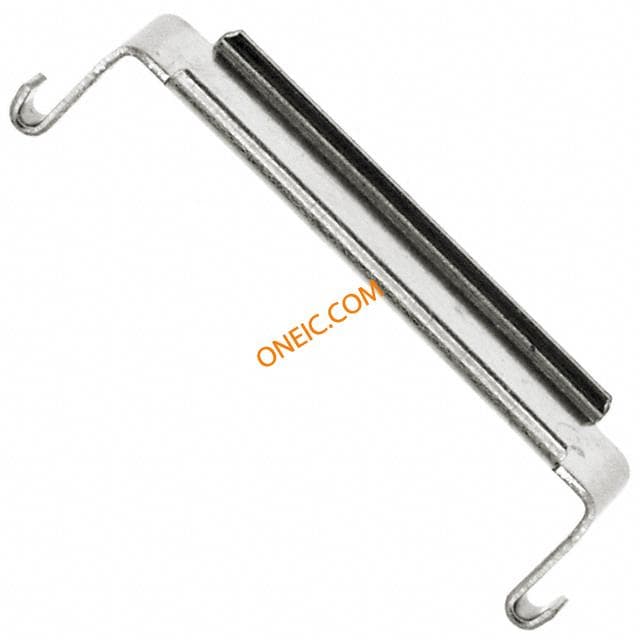

Connector Accessories Wire Mount Socket Strain Relief 12 POS Headers & Wire Housings 12P STRAIN RELIEF STRAIN RELIEF 12POS 2MM StrainRelieffor12posWiremountSocket,2mmx2mm,1mmpitch
